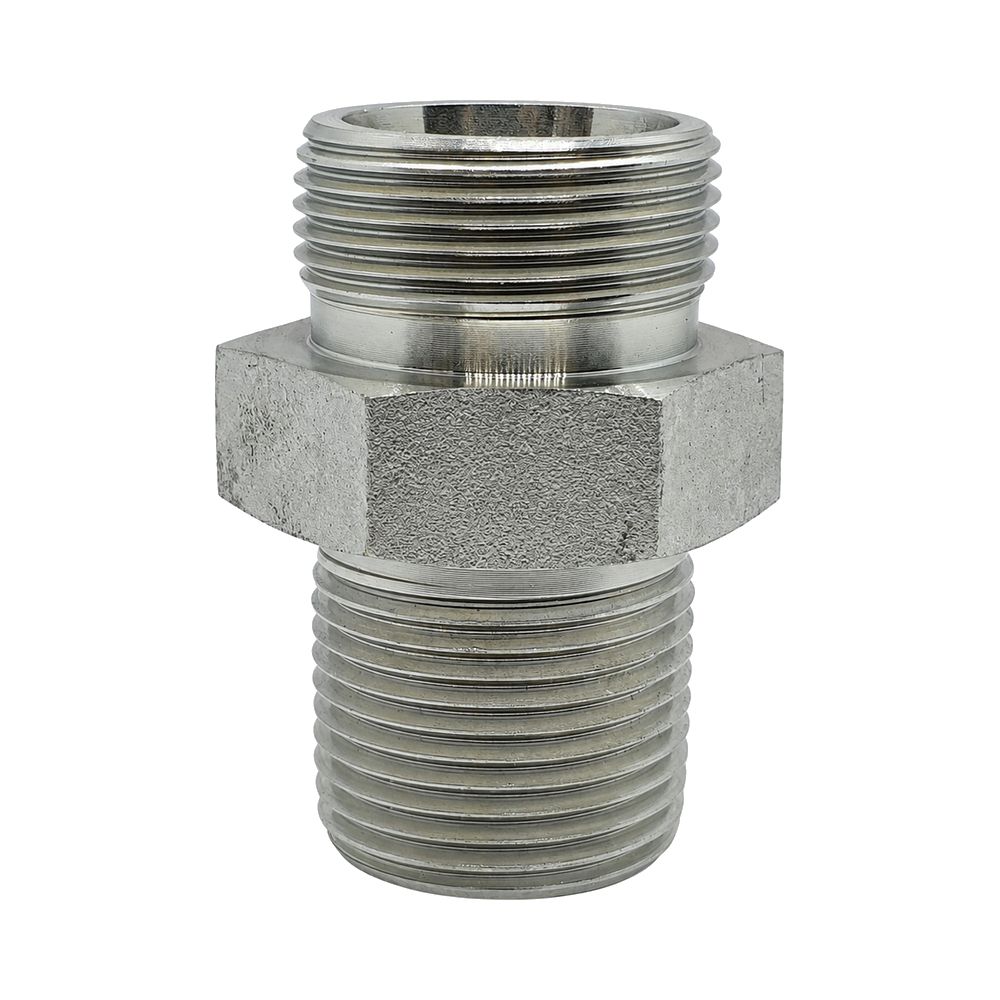

Metric Heavy (S) Male x NPT Tapered Male Straight Adaptor

Heavy series metric 24° cone one end, NPT tapered pipe thread the other. Joins European tube work to the American ports found on pumps, filter heads and gauge blocks.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy series. It seals on the 24° cone and is built for higher pressures than the light series.
• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. It seals on thread interference, so tape or sealant is a must.

How to Choose

• The NPT end seals on the thread and needs sealant. The metric cone end does not, so keep sealant off it.
• NPT is 60°, BSPT is 55°. Confirm which one the port actually is rather than going by the size stamped on the housing.
• Heavy series is the higher-rated metric range. Do not swap in a light series body because the thread looks the same.

Technicians Advice

Wind the NPT end up hand tight then two or three turns and stop. Tapered thread wedges as it goes, and the extra torque people put in chasing a weep is what cracks a cast filter head. If it still seeps, back it out and redo the sealant.

Where You’ll Find It

• Metric Heavy (S) Male – European machinery on the pressure side, where working pressures exceed the light series rating.
• NPT Tapered Male – American-built gearboxes, pumps, compressors and older industrial pipework.

Cross-Reference

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.
• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. The dryseal variant is written NPTF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

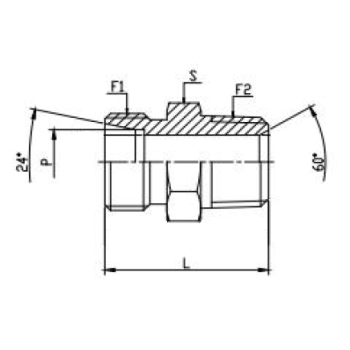

← Swipe the table sideways to see every measurement →

Part code	A	B	L	S	Material	Finish
MHM-NTM-1404	M14x1.5 (6S)	1/4" NPT	34.5mm	17mm	Mild steel	Plated finish
MHM-NTM-1604	M16x1.5 (8S)	1/4" NPT	32mm	17mm	Mild steel	Plated finish
MHM-NTM-1806	M18x1.5 (10S)	3/8" NPT	35mm	19mm	Mild steel	Plated finish
MHM-NTM-2006	M20x1.5 (12S)	3/8" NPT	37.2mm	22mm	Mild steel	Plated finish
MHM-NTM-2008	M20x1.5 (12S)	1/2" NPT	42mm	22mm	Mild steel	Plated finish
MHM-NTM-2206	M22x1.5 (14S)	3/8" NPT	38mm	24mm	Mild steel	Plated finish
MHM-NTM-2208	M22x1.5 (14S)	1/2" NPT	44mm	24mm	Mild steel	Plated finish
MHM-NTM-2406	M24x1.5 (16S)	3/8" NPT	46mm	32mm	Mild steel	Plated finish
MHM-NTM-2408	M24x1.5 (16S)	1/2" NPT	52mm	36mm	Mild steel	Plated finish
MHM-NTM-3008	M30x2 (20S)	1/2" NPT	51.5mm	32mm	Mild steel	Plated finish
MHM-NTM-3012	M30x2 (20S)	3/4" NPT	48mm	32mm	Mild steel	Plated finish
MHM-NTM-3612	M36x2 (25S)	3/4" NPT	51mm	41mm	Mild steel	Plated finish
MHM-NTM-3616	M36x2 (25S)	1" NPT	56mm	41mm	Mild steel	Plated finish
MHM-NTM-4216	M42x2 (30S)	1" NPT	58mm	46mm	Mild steel	Plated finish
MHM-NTM-4220	M42x2 (30S)	1.1/4" NPT	60mm	46mm	Mild steel	Plated finish
MHM-NTM-5224	M52x2 (38S)	1.1/2" NPT	64.5mm	55mm	Mild steel	Plated finish

Key: L overall length, S hex across flats. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
