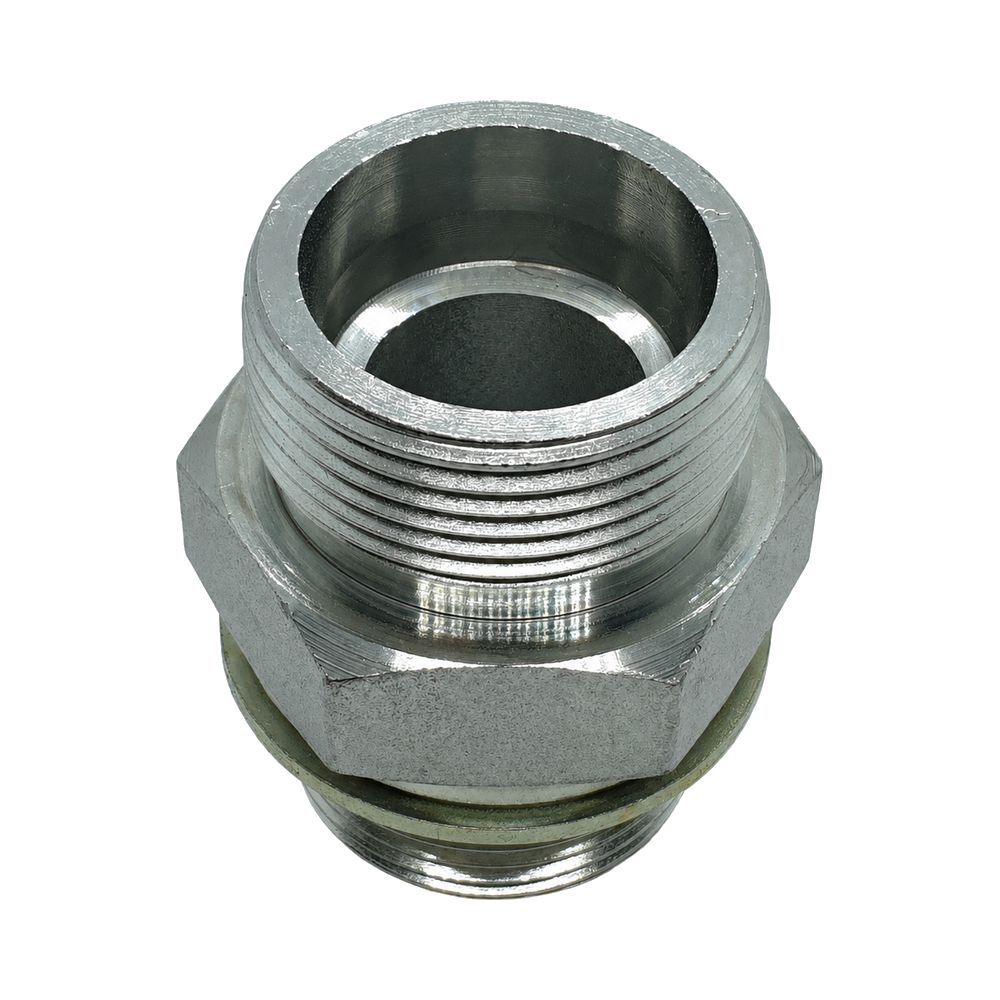

Metric Heavy (S) Male x Metric Stud Male Straight Adaptor

Heavy series 24° cone one end, metric stud with a soft seal the other. Takes an S series tube run straight into a metric port on a European pump, valve block or manifold.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy series. It seals on the 24° cone and is built for higher pressures than the light series.
• Metric Stud Male – metric straight thread with a captive soft seal. It seals on a bonded washer or O-ring under the stud shoulder, not on the thread.

How to Choose

• Two sealing methods on one part. The cone end seals on the 24° face, the stud end seals on a washer or O-ring under the shoulder.
• Heavy (S) and light (L) share some thread sizes. Check the series on the tube nut before you order.
• The stud end is a straight thread. It does not tighten on itself, so nothing goes on that thread.

Technicians Advice

Fit a fresh bonded washer or O-ring on the stud end every time. A reused seal that has already taken a squeeze will hold on the day and weep a fortnight later, and by then the oil has run down the block and nobody can tell which port it came from.

Where You’ll Find It

• Metric Heavy (S) Male – European machinery on the pressure side, where working pressures exceed the light series rating.
• Metric Stud Male – European valve blocks and manifolds using a metric port with a soft seal under the shoulder.

Cross-Reference

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.
• Metric Stud Male – Metric straight thread with a bonded washer or O-ring. Confirm the port series against the block before ordering.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	S	Material	Finish
MHM-MSM-1412	M14x1.5 (6S)	M12x1.5	29mm	17mm	Mild steel	Plated finish
MHM-MSM-1614	M16x1.5 (8S)	M14x1.5	34mm	19mm	Mild steel	Plated finish
MHM-MSM-1816	M18x1.5 (10S)	M16x1.5	34.5mm	22mm	Mild steel	Plated finish
MHM-MSM-2018	M20x1.5 (12S)	M18x1.5	36.5mm	24mm	Mild steel	Plated finish
MHM-MSM-2022	M20x1.5 (12S)	M22x1.5	39mm	27mm	Mild steel	Plated finish
MHM-MSM-2220	M22x1.5 (14S)	M20x1.5	41mm	27mm	Mild steel	Plated finish
MHM-MSM-2418	M24x1.5 (16S)	M18x1.5	38.5mm	27mm	Mild steel	Plated finish
MHM-MSM-2422	M24x1.5 (16S)	M22x1.5	41mm	27mm	Mild steel	Plated finish
MHM-MSM-3022	M30x2 (20S)	M22x1.5	45mm	32mm	Mild steel	Plated finish
MHM-MSM-3027	M30x2 (20S)	M27x2	47mm	32mm	Mild steel	Plated finish
MHM-MSM-3627	M36x2 (25S)	M27x2	51mm	41mm	Mild steel	Plated finish
MHM-MSM-3633	M36x2 (25S)	M33x2	53mm	41mm	Mild steel	Plated finish
MHM-MSM-4233	M42x2 (30S)	M33x2	55mm	46mm	Mild steel	Plated finish
MHM-MSM-4242	M42x2 (30S)	M42x2	57mm	50mm	Mild steel	Plated finish
MHM-MSM-5248	M52x2 (38S)	M48x2	64mm	55mm	Mild steel	Plated finish

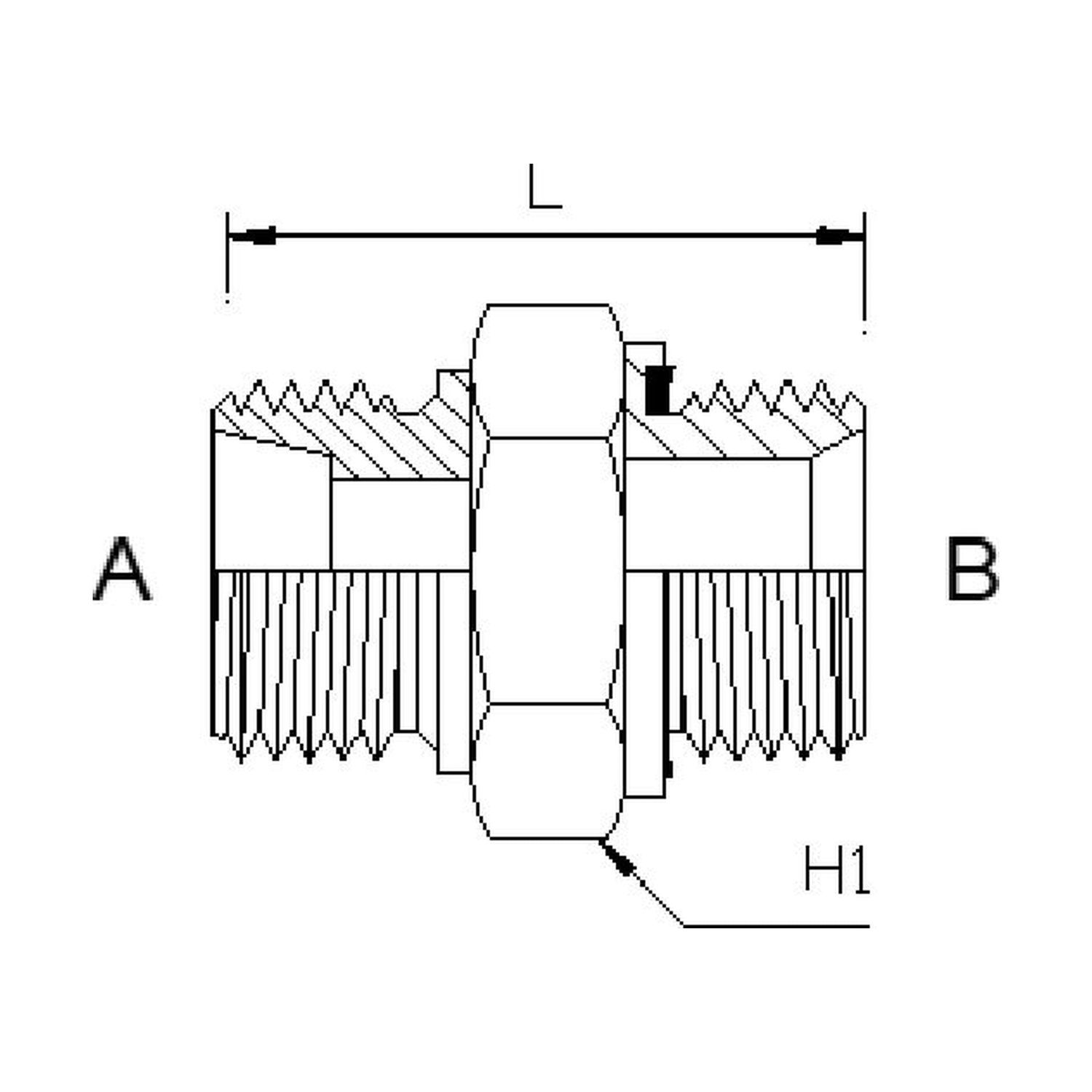

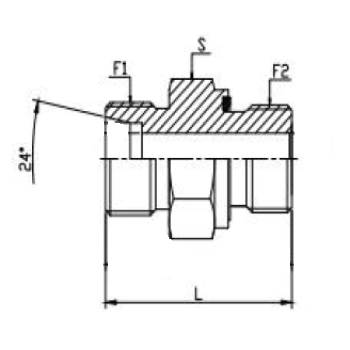

Key: L overall length, S hex across flats. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
