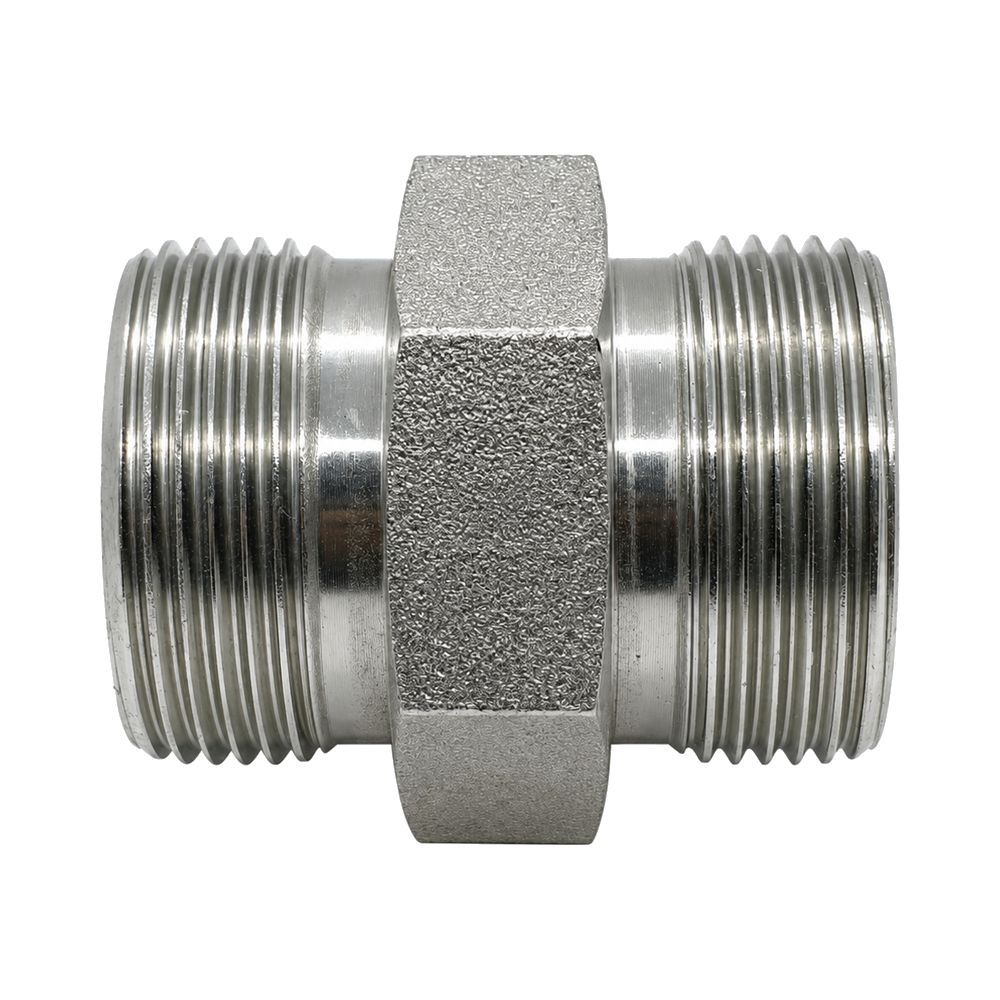

Metric Heavy (S) Male x Metric Heavy (S) Male Straight Adaptor

Heavy series metric 24° cone both ends. The joiner for the high-pressure side of European-built machinery, where the S series wall thickness is there to take pump and lift-line pressures.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy series. It seals on the 24° cone and is built for higher pressures than the light series.

How to Choose

• Heavy (S) and light (L) share some thread sizes but the cones and bodies differ. An S fitting will not seal in an L port and the other way around.
• Equal and reducing sizes are stocked, so you can step down through the nipple rather than stacking parts.
• Look into the mating cone before fitting. Some are plain 24° and some carry an O-ring, and the two do not interchange.

Technicians Advice

On heavy series, the cone does the work and the thread just supplies the load. If a joint weeps, take it apart and look at the cone face rather than reaching for a longer bar. A scored or bruised cone will not come good under torque, and the extra load just damages the port as well.

Where You’ll Find It

• Metric Heavy (S) Male – European machinery on the pressure side, where working pressures exceed the light series rating.

Cross-Reference

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

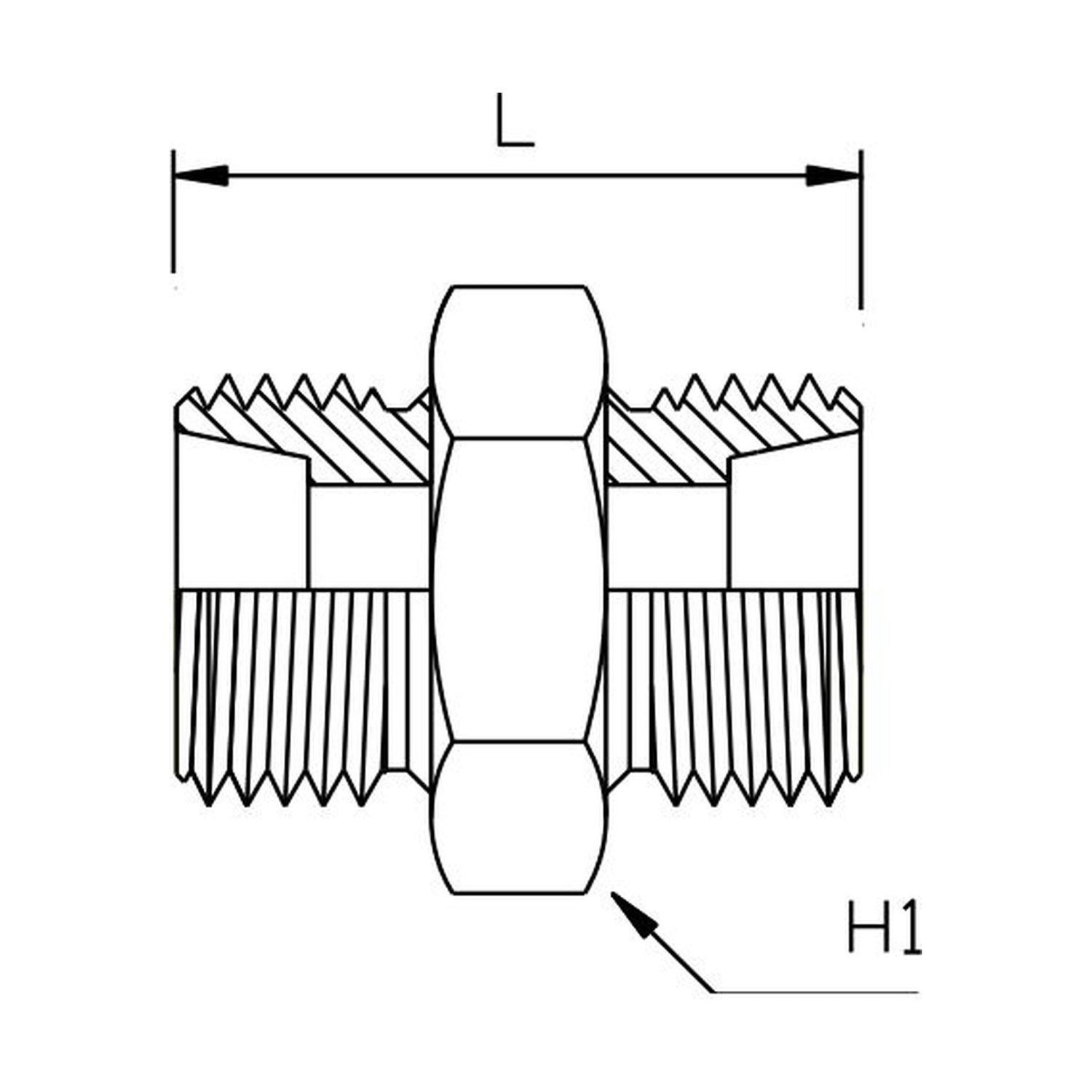

Part code	A	B	F1	F2	L	S	Material	Finish
MHM-MHM-1414	M14x1.5 (6S)	M14x1.5 (6S)	M14x1.5 (6S)	M14x1.5 (6S)	30mm	14mm	Mild steel	Plated finish
MHM-MHM-1416	M14x1.5 (6S)	M16x1.5 (8S)	M14x1.5 (6S)	M16x1.5 (8S)	32mm	17mm	Mild steel	Plated finish
MHM-MHM-1418	M14x1.5 (6S)	M18x1.5 (10S)	M14x1.5 (6S)	M18x1.5 (10S)	32mm	19mm	Mild steel	Plated finish
MHM-MHM-1420	M14x1.5 (6S)	M20x1.5 (12S)	M14x1.5 (6S)	M20x1.5 (12S)	34mm	22mm	Mild steel	Plated finish
MHM-MHM-1616	M16x1.5 (8S)	M16x1.5 (8S)	M16x1.5 (8S)	M16x1.5 (8S)	32mm	17mm	Mild steel	Plated finish
MHM-MHM-1618	M16x1.5 (8S)	M18x1.5 (10S)	M16x1.5 (8S)	M18x1.5 (10S)	32mm	19mm	Mild steel	Plated finish
MHM-MHM-1620	M16x1.5 (8S)	M20x1.5 (12S)	M16x1.5 (8S)	M20x1.5 (12S)	34mm	24mm	Mild steel	Plated finish
MHM-MHM-1818	M18x1.5 (10S)	M18x1.5 (10S)	M18x1.5 (10S)	M18x1.5 (10S)	32mm	19mm	Mild steel	Plated finish
MHM-MHM-1820	M18x1.5 (10S)	M20x1.5 (12S)	M18x1.5 (10S)	M20x1.5 (12S)	34mm	22mm	Mild steel	Plated finish
MHM-MHM-1822	M18x1.5 (10S)	M22x1.5 (14S)	M18x1.5 (10S)	M22x1.5 (14S)	36mm	24mm	Mild steel	Plated finish
MHM-MHM-1824	M18x1.5 (10S)	M24x1.5 (16S)	M18x1.5 (10S)	M24x1.5 (16S)	38mm	27mm	Mild steel	Plated finish
MHM-MHM-1830	M18x1.5 (10S)	M30x2 (20S)	M18x1.5 (10S)	M30x2 (20S)	40mm	32mm	Mild steel	Plated finish
MHM-MHM-2020	M20x1.5 (12S)	M20x1.5 (12S)	M20x1.5 (12S)	M20x1.5 (12S)	34mm	22mm	Mild steel	Plated finish
MHM-MHM-2022	M20x1.5 (12S)	M22x1.5 (14S)	M20x1.5 (12S)	M22x1.5 (14S)	36mm	24mm	Mild steel	Plated finish
MHM-MHM-2024	M20x1.5 (12S)	M24x1.5 (16S)	M20x1.5 (12S)	M24x1.5 (16S)	36mm	27mm	Mild steel	Plated finish
MHM-MHM-2030	M20x1.5 (12S)	M30x2 (20S)	M20x1.5 (12S)	M30x2 (20S)	40mm	32mm	Mild steel	Plated finish
MHM-MHM-2222	M22x1.5 (14S)	M22x1.5 (14S)	M22x1.5 (14S)	M22x1.5 (14S)	38mm	24mm	Mild steel	Plated finish
MHM-MHM-2224	M22x1.5 (14S)	M24x1.5 (16S)	M22x1.5 (14S)	M24x1.5 (16S)	38mm	27mm	Mild steel	Plated finish
MHM-MHM-2424	M24x1.5 (16S)	M24x1.5 (16S)	M24x1.5 (16S)	M24x1.5 (16S)	38mm	27mm	Mild steel	Plated finish
MHM-MHM-2430	M24x1.5 (16S)	M30x2 (20S)	M24x1.5 (16S)	M30x2 (20S)	42mm	32mm	Mild steel	Plated finish
MHM-MHM-2436	M24x1.5 (16S)	M36x2 (25S)	M24x1.5 (16S)	M36x2 (25S)	46mm	41mm	Mild steel	Plated finish
MHM-MHM-3030	M30x2 (20S)	M30x2 (20S)	M30x2 (20S)	M30x2 (20S)	44mm	32mm	Mild steel	Plated finish
MHM-MHM-3036	M30x2 (20S)	M36x2 (25S)	M30x2 (20S)	M36x2 (25S)	48mm	41mm	Mild steel	Plated finish
MHM-MHM-3042	M30x2 (20S)	M42x2 (30S)	M30x2 (20S)	M42x2 (30S)	50mm	46mm	Mild steel	Plated finish
MHM-MHM-3636	M36x2 (25S)	M36x2 (25S)	M36x2 (25S)	M36x2 (25S)	50mm	41mm	Mild steel	Plated finish
MHM-MHM-3642	M36x2 (25S)	M42x2 (30S)	M36x2 (25S)	M42x2 (30S)	52mm	46mm	Mild steel	Plated finish
MHM-MHM-4242	M42x2 (30S)	M42x2 (30S)	M42x2 (30S)	M42x2 (30S)	54mm	46mm	Mild steel	Plated finish
MHM-MHM-4252	M42x2 (30S)	M52x2 (38S)	M42x2 (30S)	M52x2 (38S)	59mm	55mm	Mild steel	Plated finish
MHM-MHM-5252	M52x2 (38S)	M52x2 (38S)	M52x2 (38S)	M52x2 (38S)	61mm	55mm	Mild steel	Plated finish

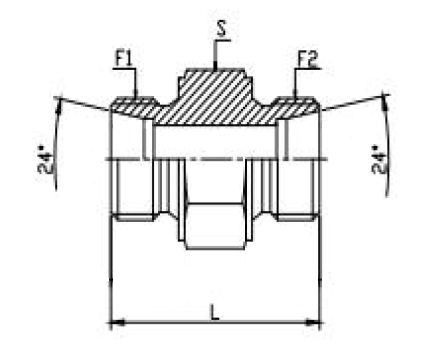

Key: L overall length, S hex across flats. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
