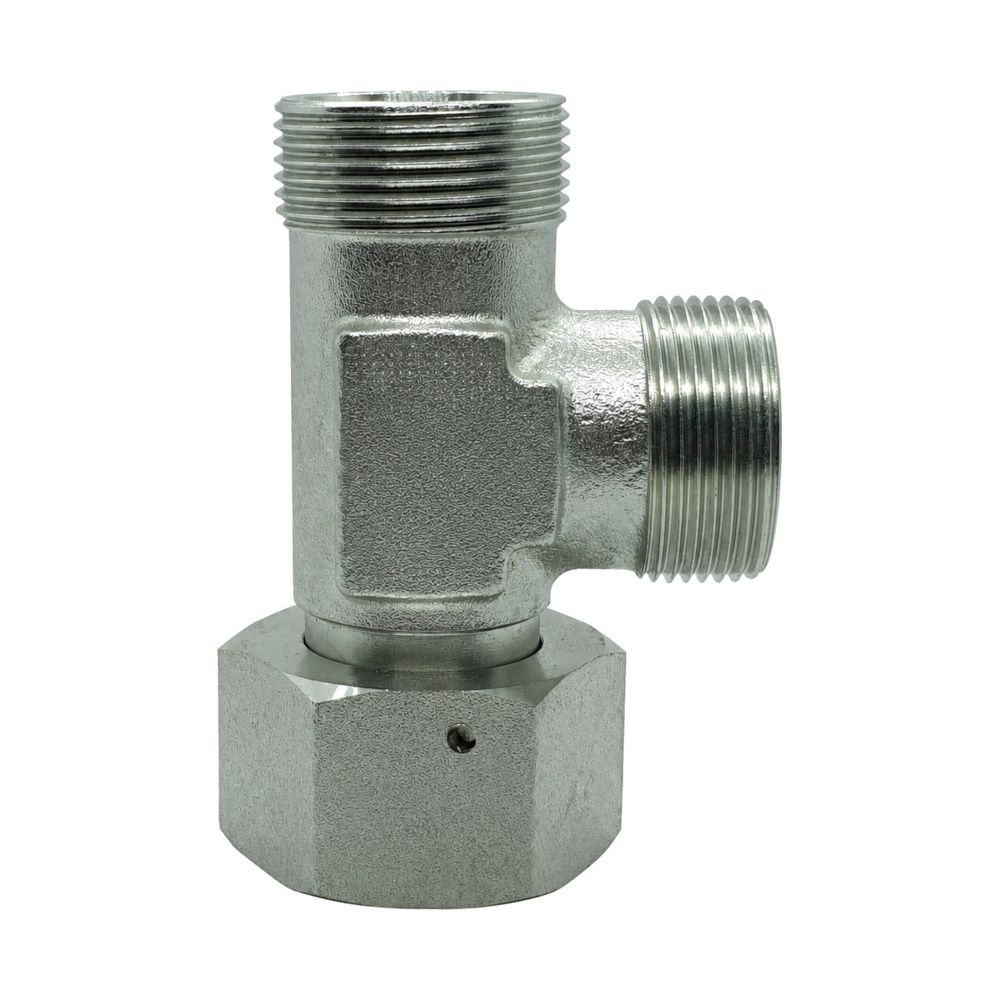

Metric Heavy (S) Male x Swivel Female x Male Run Tee

A heavy series metric swivel female in the middle with an S series male cone at each end. The high-pressure metric run tee for European machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy series. It seals on the 24° cone and is built for higher pressures than the light series.
• Metric Heavy (S) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, heavy series. It pulls onto the mating 24° cone and swivels so the tube is not twisted.

How to Choose

• On a run tee the odd port sits in the middle of the run and the two matching ports are the ends. It is the opposite layout to a branch tee, so check which one the job needs before you order.
• Heavy (S) will not seal in a light (L) port even where the thread starts. Check all three mating parts.
• Look into each cone for a captured O-ring before fitting.

Technicians Advice

The cone seals and the nut only loads it. Inspect all three faces on the bench, because a scored cone will not come good under torque however long the bar is.

Where You’ll Find It

• Metric Heavy (S) Male – European machinery on the pressure side, where working pressures exceed the light series rating.
• Metric Heavy (S) Swivel Female – Pressure-side European tube assemblies needing a re-breakable joint.

Cross-Reference

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.
• Metric Heavy (S) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	L2	S	S1	Material	Finish
MHM-MHF-MHM-141414	25.5mm	12mm	17mm	Mild steel	Plated finish
MHM-MHF-MHM-161616	27mm	14mm	19mm	Mild steel	Plated finish
MHM-MHF-MHM-181818	30mm	17mm	22mm	Mild steel	Plated finish
MHM-MHF-MHM-202020	31mm	17mm	24mm	Mild steel	Plated finish
MHM-MHF-MHM-222222	34mm	19mm	27mm	Mild steel	Plated finish
MHM-MHF-MHM-242424	34.5mm	24mm	30mm	Mild steel	Plated finish
MHM-MHF-MHM-303030	42mm	27mm	36mm	Mild steel	Plated finish
MHM-MHF-MHM-363636	50mm	36mm	46mm	Mild steel	Plated finish
MHM-MHF-MHM-424242	52.5mm	41mm	50mm	Mild steel	Plated finish
MHM-MHF-MHM-525252	63mm	50mm	60mm	Mild steel	Plated finish

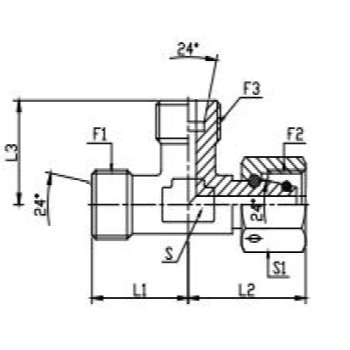

Key: L2 length 2, S hex across flats, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
