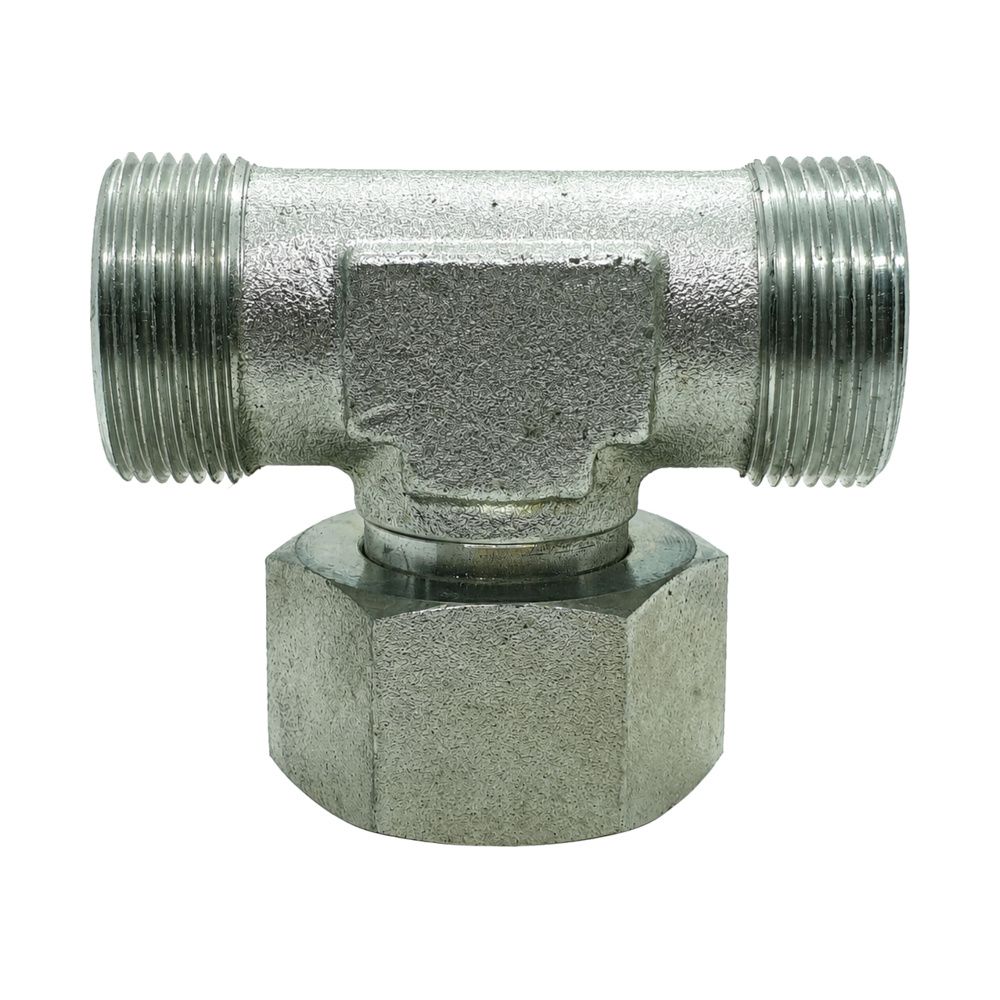

Metric Heavy (S) Male x Male x Swivel Female Branch Tee

Two heavy series metric male cones in line with a metric heavy swivel female on the branch. The high-pressure metric tee for European-built machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy series. It seals on the 24° cone and is built for higher pressures than the light series.
• Metric Heavy (S) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, heavy series. It pulls onto the mating 24° cone and swivels so the tube is not twisted.

How to Choose

• On a branch tee the two in-line ports carry the main flow and the third port comes off the side at 90°. Get that the wrong way round and the tee physically will not fit the run.
• Heavy (S) will not seal in a light (L) port even where the thread starts. Check the series on all three mating parts.
• All three ports work on a 24° cone. Look into each for a captured O-ring before fitting.

Technicians Advice

On heavy series the cone does the sealing and the nut only supplies load. With three cones on one part, inspect all three faces on the bench. A scored cone will not come good under torque no matter how long the bar is.

Where You’ll Find It

• Metric Heavy (S) Male – European machinery on the pressure side, where working pressures exceed the light series rating.
• Metric Heavy (S) Swivel Female – Pressure-side European tube assemblies needing a re-breakable joint.

Cross-Reference

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.
• Metric Heavy (S) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	L3	S	S1	Material	Finish
MHM-MHM-MHF-141414	25.5mm	12mm	17mm	Mild steel	Plated finish
MHM-MHM-MHF-161616	27mm	14mm	19mm	Mild steel	Plated finish
MHM-MHM-MHF-181818	30mm	17mm	22mm	Mild steel	Plated finish
MHM-MHM-MHF-202020	31mm	17mm	24mm	Mild steel	Plated finish
MHM-MHM-MHF-222222	34mm	19mm	27mm	Mild steel	Plated finish
MHM-MHM-MHF-242424	34.5mm	24mm	30mm	Mild steel	Plated finish
MHM-MHM-MHF-303030	42mm	27mm	36mm	Mild steel	Plated finish
MHM-MHM-MHF-363636	50mm	36mm	46mm	Mild steel	Plated finish
MHM-MHM-MHF-424242	52.5mm	41mm	50mm	Mild steel	Plated finish
MHM-MHM-MHF-525252	63mm	50mm	60mm	Mild steel	Plated finish

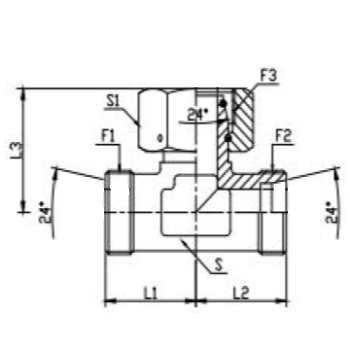

Key: L3 length 3, S hex across flats, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
