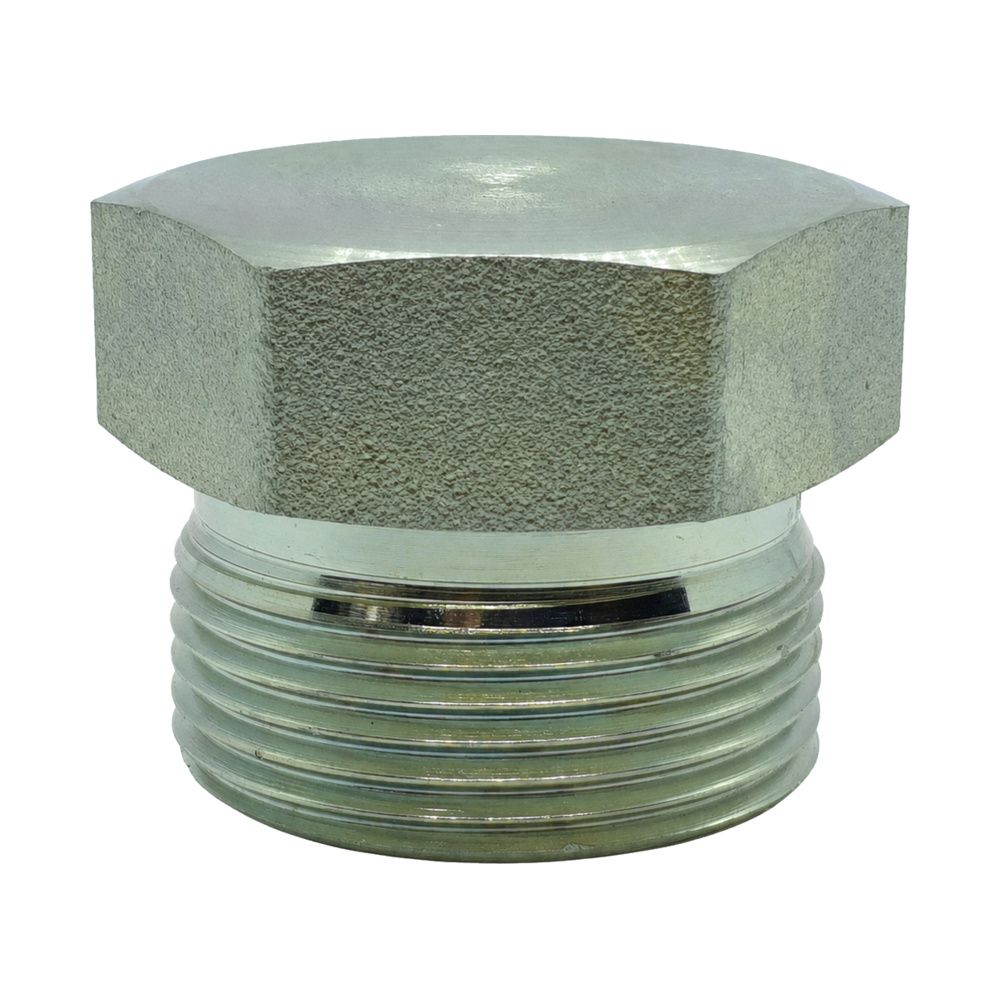

Metric Heavy (S) Male Blanking Plug

A heavy series metric plug for blanking a 24° cone connection on the high-pressure side of European machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy series. It seals on the 24° cone and is built for higher pressures than the light series.

How to Choose

• A plug is male and blocks a female port. A cap is female and covers a male end. Work out which one the open connection is before you order.
• Heavy (S) will not seal in a light (L) port even where the thread starts. Check the series.
• Seals on the 24° cone, so look at the cone face before fitting.

Technicians Advice

On heavy series the cone does the work and the nut only loads it. If the blanked joint weeps, inspect the cone rather than reaching for a longer bar, because a scored cone will not come good under torque.

Where You’ll Find It

• Metric Heavy (S) Male – European machinery on the pressure side, where working pressures exceed the light series rating.

Cross-Reference

• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	L	H1	Material	Finish
MHM-14	18mm	14mm	Mild steel	Plated finish
MHM-16	20mm	17mm	Mild steel	Plated finish
MHM-18	20mm	19mm	Mild steel	Plated finish
MHM-20	22mm	22mm	Mild steel	Plated finish
MHM-22	24mm	24mm	Mild steel	Plated finish
MHM-24	24mm	27mm	Mild steel	Plated finish
MHM-30	28mm	32mm	Mild steel	Plated finish
MHM-36	32mm	41mm	Mild steel	Plated finish
MHM-42	34mm	46mm	Mild steel	Plated finish
MHM-52	39mm	55mm	Mild steel	Plated finish

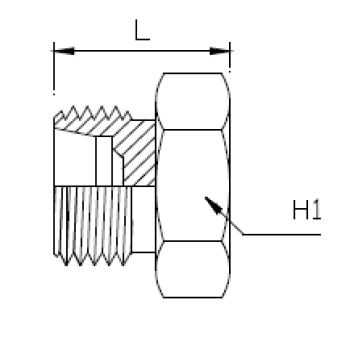

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
