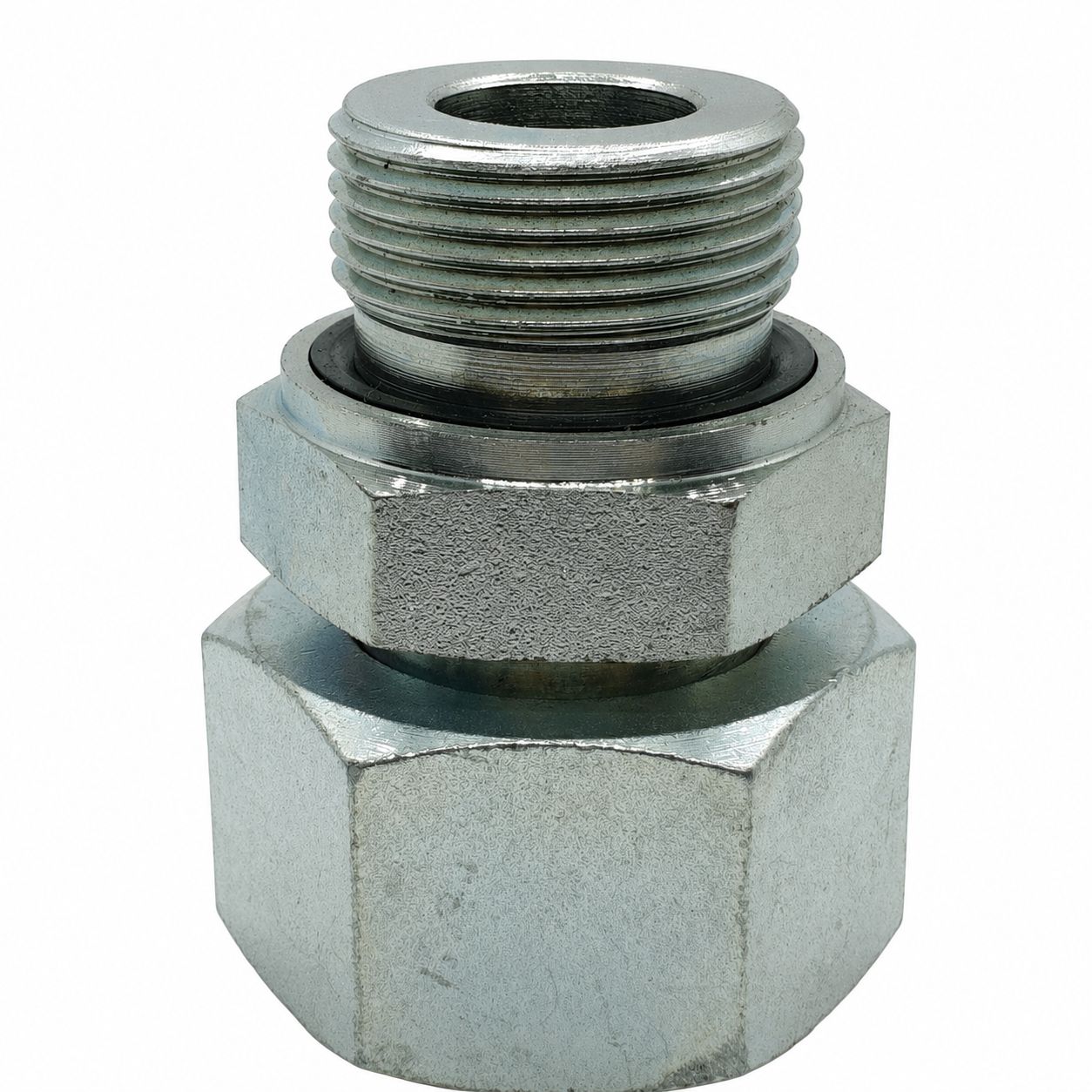

Metric Heavy (S) Swivel Female x Metric Stud Male Straight Adaptor

Heavy series metric swivel female one end, metric stud with a soft seal the other. Runs an S series line straight into a metric port on a European pump, valve block or gearbox.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Heavy (S) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, heavy series. It pulls onto the mating 24° cone and swivels so the tube is not twisted.
• Metric Stud Male – metric straight thread with a captive soft seal. It seals on a bonded washer or O-ring under the stud shoulder, not on the thread.

How to Choose

• The swivel female seals on the mating 24° cone. The stud end seals on a washer or O-ring under the shoulder.
• The stud is a straight thread. It does not tighten on itself and takes no sealant.
• Metric stud sizes run close together. M18 and M20 will both feel like they want to start.

Technicians Advice

The soft seal under the stud shoulder is a one-use part. Reusing a flattened washer is the most common reason a metric port comes back weeping a fortnight later, and a new seal costs less than the trip out to look at it.

Where You’ll Find It

• Metric Heavy (S) Swivel Female – Pressure-side European tube assemblies needing a re-breakable joint.
• Metric Stud Male – European valve blocks and manifolds using a metric port with a soft seal under the shoulder.

Cross-Reference

• Metric Heavy (S) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.
• Metric Stud Male – Metric straight thread with a bonded washer or O-ring. Confirm the port series against the block before ordering.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	S	S1	Material	Finish
MHF-MSM-1410	M14x1.5 (6S)	M10x1	33mm	14mm	17mm	Mild steel	Plated finish
MHF-MSM-1412	M14x1.5 (6S)	M12x1.5	37mm	17mm	17mm	Mild steel	Plated finish
MHF-MSM-1612	M16x1.5 (8S)	M12x1.5	37mm	17mm	19mm	Mild steel	Plated finish
MHF-MSM-1614	M16x1.5 (8S)	M14x1.5	36.5mm	19mm	19mm	Mild steel	Plated finish
MHF-MSM-1814	M18x1.5 (10S)	M14x1.5	39mm	19mm	22mm	Mild steel	Plated finish
MHF-MSM-1816	M18x1.5 (10S)	M16x1.5	44mm	22mm	24mm	Mild steel	Plated finish
MHF-MSM-2014	M20x1.5 (12S)	M14x1.5	44mm	19mm	24mm	Mild steel	Plated finish
MHF-MSM-2016	M20x1.5 (12S)	M16x1.5	44mm	22mm	24mm	Mild steel	Plated finish
MHF-MSM-2018	M20x1.5 (12S)	M18x1.5	44mm	24mm	24mm	Mild steel	Plated finish
MHF-MSM-2022	M20x1.5 (12S)	M22x1.5	46mm	27mm	24mm	Mild steel	Plated finish
MHF-MSM-2220	M22x1.5 (14S)	M20x1.5	47.5mm	24mm	27mm	Mild steel	Plated finish
MHF-MSM-2422	M18x1.5 (10S)	M22x1.5	41mm	27mm	22mm	Mild steel	Plated finish
MHF-MSM-3027	M30x2 (20S)	M27x2	57mm	32mm	36mm	Mild steel	Plated finish
MHF-MSM-3633	M36x2 (25S)	M33x2	57mm	41mm	46mm	Mild steel	Plated finish
MHF-MSM-4242	M42x2 (30S)	M42x2	62mm	50mm	50mm	Mild steel	Plated finish
MHF-MSM-5248	M52x2 (38S)	M48x2	79.5mm	55mm	60mm	Mild steel	Plated finish

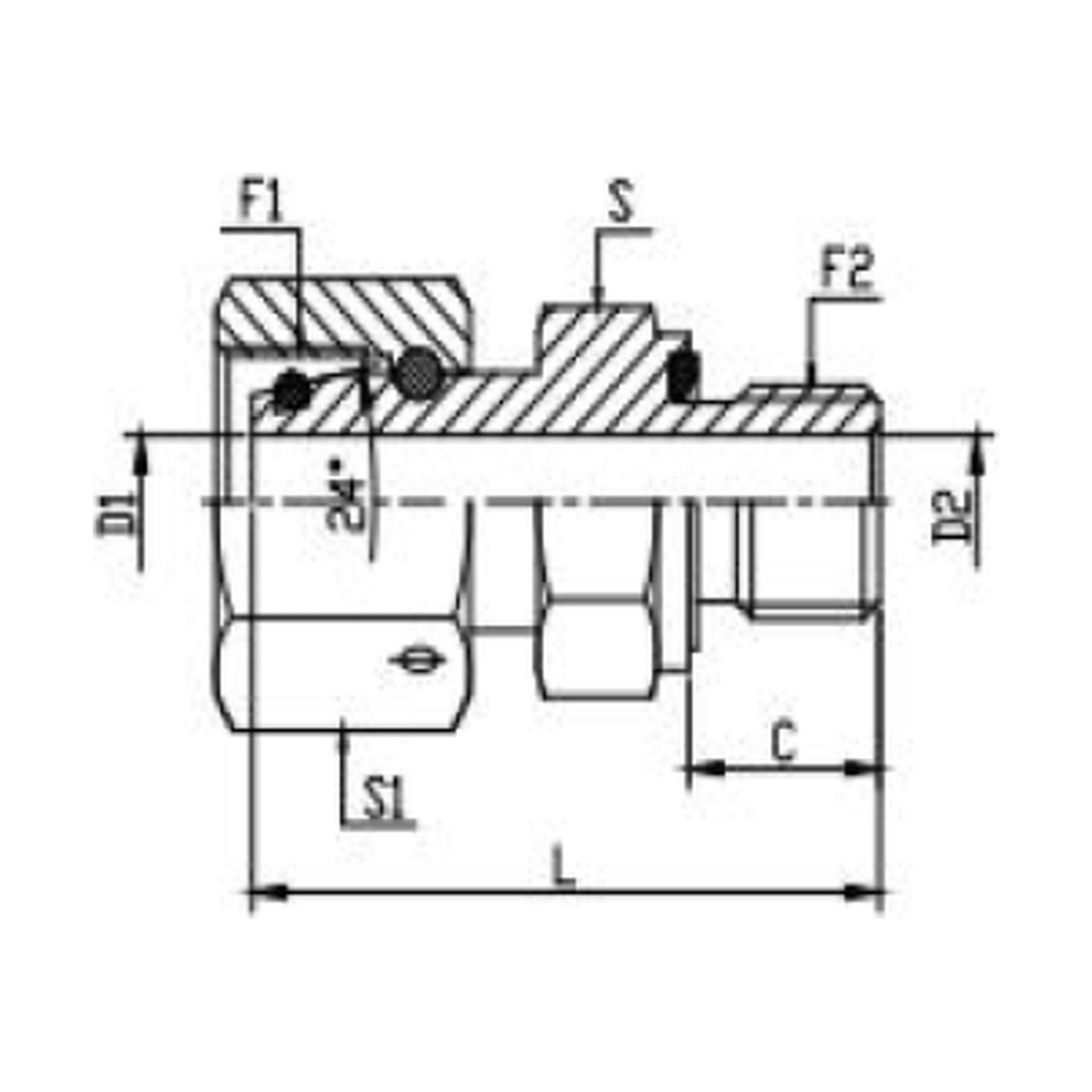

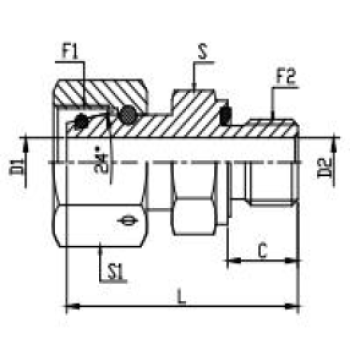

Key: L overall length, S hex across flats, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
