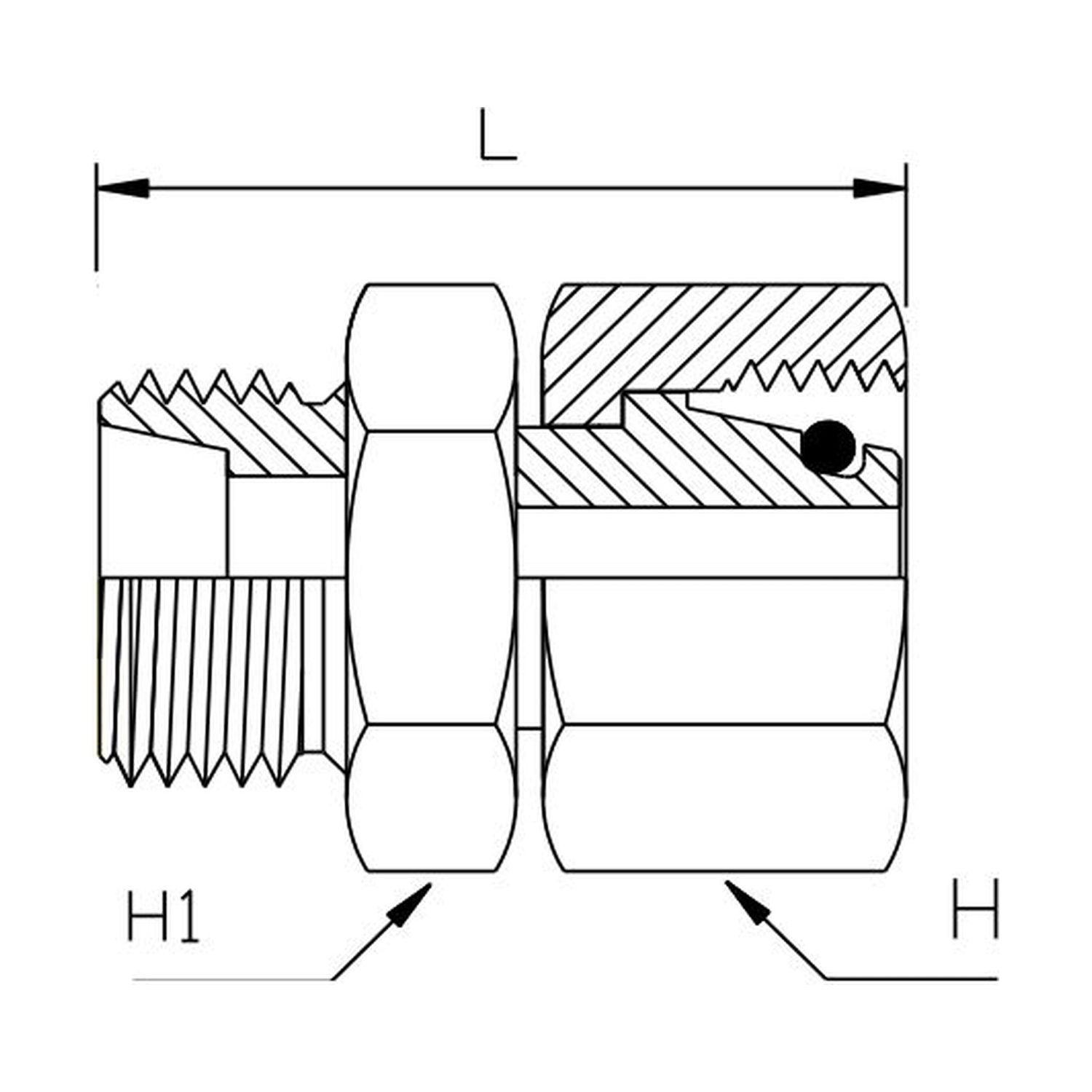

Metric Heavy (S) Swivel Female x Metric Heavy (S) Male Straight Adaptor

Heavy series metric both ends, swivel female one side and male cone the other. The extension and repair piece for the high-pressure side of European-built machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Heavy (S) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, heavy series. It pulls onto the mating 24° cone and swivels so the tube is not twisted.
• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy series. It seals on the 24° cone and is built for higher pressures than the light series.

How to Choose

• Heavy (S) and light (L) share some thread sizes but the cones and bodies differ. An S fitting will not seal in an L port.
• The swivel end turns as you tighten so an assembled tube run is not twisted.
• Look into both cones before fitting. Plain 24° and O-ring cones do not interchange.

Technicians Advice

On heavy series the cone does the work and the nut only supplies the load. If a joint weeps, take it apart and inspect the cone face rather than reaching for a longer bar. A scored cone will not come good under torque and the extra load damages the port as well.

Where You’ll Find It

• Metric Heavy (S) Swivel Female – Pressure-side European tube assemblies needing a re-breakable joint.
• Metric Heavy (S) Male – European machinery on the pressure side, where working pressures exceed the light series rating.

Cross-Reference

• Metric Heavy (S) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.
• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	S	S1	Material	Finish
MHF-MHM-1414	M14x1.5 (6S)	M14x1.5 (6S)	33mm	14mm	17mm	Mild steel	Plated finish
MHF-MHM-1614	M16x1.5 (8S)	M14x1.5 (6S)	34mm	14mm	19mm	Mild steel	Plated finish
MHF-MHM-1616	M16x1.5 (8S)	M16x1.5 (8S)	34mm	14mm	19mm	Mild steel	Plated finish
MHF-MHM-1814	M18x1.5 (10S)	M14x1.5 (6S)	35.5mm	17mm	22mm	Mild steel	Plated finish
MHF-MHM-1816	M18x1.5 (10S)	M16x1.5 (8S)	35.5mm	17mm	22mm	Mild steel	Plated finish
MHF-MHM-1818	M18x1.5 (10S)	M18x1.5 (10S)	35mm	17mm	22mm	Mild steel	Plated finish
MHF-MHM-2014	M20x1.5 (12S)	M14x1.5 (6S)	34.5mm	17mm	24mm	Mild steel	Plated finish
MHF-MHM-2016	M20x1.5 (12S)	M16x1.5 (8S)	34.5mm	17mm	24mm	Mild steel	Plated finish
MHF-MHM-2018	M20x1.5 (12S)	M18x1.5 (10S)	35.5mm	19mm	24mm	Mild steel	Plated finish
MHF-MHM-2020	M20x1.5 (12S)	M20x1.5 (12S)	36mm	22mm	27mm	Mild steel	Plated finish
MHF-MHM-2214	M22x1.5 (14S)	M14x1.5 (6S)	38.5mm	19mm	27mm	Mild steel	Plated finish
MHF-MHM-2216	M22x1.5 (14S)	M16x1.5 (8S)	38.5mm	19mm	27mm	Mild steel	Plated finish
MHF-MHM-2218	M22x1.5 (14S)	M18x1.5 (10S)	38mm	19mm	27mm	Mild steel	Plated finish
MHF-MHM-2220	M22x1.5 (14S)	M20x1.5 (12S)	43mm	22mm	27mm	Mild steel	Plated finish
MHF-MHM-2222	M22x1.5 (14S)	M22x1.5 (14S)	43mm	24mm	30mm	Mild steel	Plated finish
MHF-MHM-2414	M24x1.5 (16S)	M14x1.5 (6S)	36.5mm	22mm	30mm	Mild steel	Plated finish
MHF-MHM-2416	M24x1.5 (16S)	M16x1.5 (8S)	36.5mm	22mm	30mm	Mild steel	Plated finish
MHF-MHM-2418	M24x1.5 (16S)	M18x1.5 (10S)	36.5mm	22mm	30mm	Mild steel	Plated finish
MHF-MHM-2420	M24x1.5 (16S)	M20x1.5 (12S)	37mm	22mm	30mm	Mild steel	Plated finish
MHF-MHM-2422	M24x1.5 (16S)	M22x1.5 (14S)	43mm	24mm	30mm	Mild steel	Plated finish
MHF-MHM-2424	M24x1.5 (16S)	M24x1.5 (16S)	43mm	24mm	30mm	Mild steel	Plated finish
MHF-MHM-3014	M30x2 (20S)	M14x1.5 (6S)	42mm	27mm	36mm	Mild steel	Plated finish
MHF-MHM-3016	M30x2 (20S)	M16x1.5 (8S)	42mm	27mm	36mm	Mild steel	Plated finish
MHF-MHM-3018	M30x2 (20S)	M18x1.5 (10S)	42mm	27mm	36mm	Mild steel	Plated finish
MHF-MHM-3020	M30x2 (20S)	M20x1.5 (12S)	40mm	27mm	36mm	Mild steel	Plated finish
MHF-MHM-3022	M30x2 (20S)	M22x1.5 (14S)	42mm	27mm	36mm	Mild steel	Plated finish
MHF-MHM-3024	M30x2 (20S)	M24x1.5 (16S)	42mm	27mm	36mm	Mild steel	Plated finish
MHF-MHM-3030	M30x2 (20S)	M30x2 (20S)	48mm	27mm	36mm	Mild steel	Plated finish
MHF-MHM-3614	M36x2 (25S)	M14x1.5 (6S)	45mm	32mm	46mm	Mild steel	Plated finish
MHF-MHM-3616	M36x2 (25S)	M16x1.5 (8S)	45.5mm	32mm	46mm	Mild steel	Plated finish
MHF-MHM-3618	M36x2 (25S)	M18x1.5 (10S)	46.5mm	32mm	46mm	Mild steel	Plated finish
MHF-MHM-3620	M36x2 (25S)	M20x1.5 (12S)	46.5mm	32mm	46mm	Mild steel	Plated finish
MHF-MHM-3622	M36x2 (25S)	M22x1.5 (14S)	48mm	32mm	46mm	Mild steel	Plated finish
MHF-MHM-3624	M36x2 (25S)	M24x1.5 (16S)	47mm	32mm	46mm	Mild steel	Plated finish
MHF-MHM-3630	M36x2 (25S)	M30x2 (20S)	50mm	32mm	46mm	Mild steel	Plated finish
MHF-MHM-3636	M36x2 (25S)	M36x2 (25S)	52mm	34mm	46mm	Mild steel	Plated finish
MHF-MHM-4214	M42x2 (30S)	M14x1.5 (6S)	47mm	41mm	50mm	Mild steel	Plated finish
MHF-MHM-4216	M42x2 (30S)	M16x1.5 (8S)	47mm	41mm	50mm	Mild steel	Plated finish
MHF-MHM-4218	M42x2 (30S)	M18x1.5 (10S)	46.5mm	41mm	50mm	Mild steel	Plated finish
MHF-MHM-4220	M42x2 (30S)	M20x1.5 (12S)	45.5mm	41mm	50mm	Mild steel	Plated finish
MHF-MHM-4222	M42x2 (30S)	M22x1.5 (14S)	48mm	41mm	50mm	Mild steel	Plated finish
MHF-MHM-4224	M42x2 (30S)	M24x1.5 (16S)	48mm	41mm	50mm	Mild steel	Plated finish
MHF-MHM-4230	M42x2 (30S)	M30x2 (20S)	49.5mm	41mm	50mm	Mild steel	Plated finish
MHF-MHM-4236	M42x2 (30S)	M36x2 (25S)	51.5mm	41mm	50mm	Mild steel	Plated finish
MHF-MHM-4242	M42x2 (30S)	M42x2 (30S)	54mm	41mm	50mm	Mild steel	Plated finish
MHF-MHM-5214	M52x2 (38S)	M14x1.5 (6S)	52mm	50mm	60mm	Mild steel	Plated finish
MHF-MHM-5216	M52x2 (38S)	M16x1.5 (8S)	54mm	50mm	60mm	Mild steel	Plated finish
MHF-MHM-5218	M52x2 (38S)	M18x1.5 (10S)	54.5mm	50mm	60mm	Mild steel	Plated finish
MHF-MHM-5220	M52x2 (38S)	M20x1.5 (12S)	54.5mm	50mm	60mm	Mild steel	Plated finish
MHF-MHM-5222	M52x2 (38S)	M22x1.5 (14S)	56.5mm	50mm	60mm	Mild steel	Plated finish
MHF-MHM-5224	M52x2 (38S)	M24x1.5 (16S)	56.5mm	50mm	60mm	Mild steel	Plated finish
MHF-MHM-5230	M52x2 (38S)	M30x2 (20S)	58.5mm	50mm	60mm	Mild steel	Plated finish
MHF-MHM-5236	M52x2 (38S)	M36x2 (25S)	60.5mm	50mm	60mm	Mild steel	Plated finish
MHF-MHM-5242	M52x2 (38S)	M42x2 (30S)	60.5mm	50mm	60mm	Mild steel	Plated finish
MHF-MHM-5252	M52x2 (38S)	M52x2 (38S)	62mm	50mm	60mm	Mild steel	Plated finish

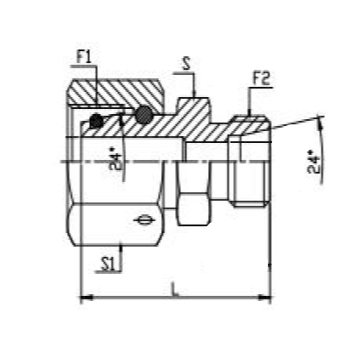

Key: L overall length, S hex across flats, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 90° Compact – same threads
