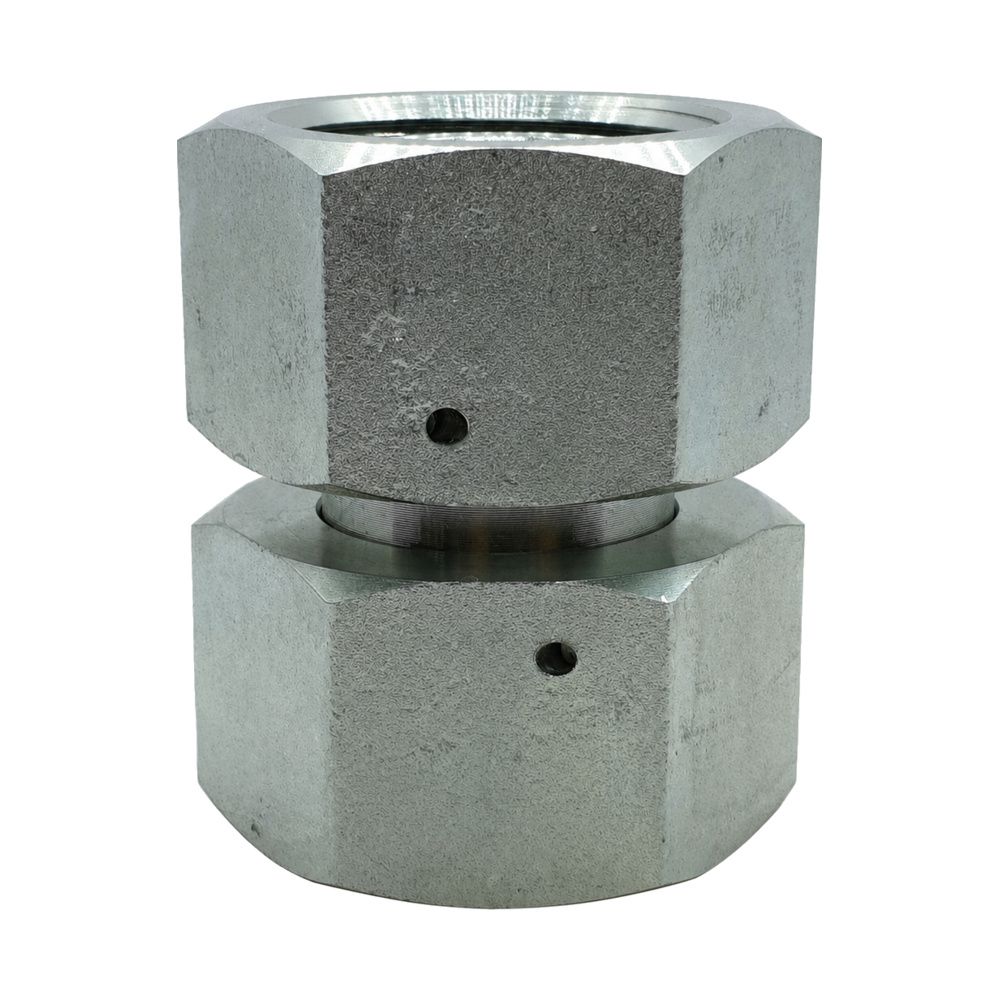

Metric Heavy (S) Swivel Female x Metric Heavy (S) Swivel Female Straight Socket

Heavy series metric swivel female both ends. Joins two S series male cones back to back on the high-pressure side of European-built machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Heavy (S) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, heavy series. It pulls onto the mating 24° cone and swivels so the tube is not twisted.

How to Choose

• Both ends pull onto a mating 24° cone and both swivel, so neither tube run is twisted.
• Heavy (S) will not seal in a light (L) port even where the thread starts. Check the series on both tube nuts.
• Look into both mating cones. Plain 24° and O-ring cones do not interchange.

Technicians Advice

On heavy series the cone does the sealing and the nut only supplies the load. If either end weeps, pull it apart and inspect the cone face rather than reaching for a longer bar, because a scored cone will not come good under torque.

Where You’ll Find It

• Metric Heavy (S) Swivel Female – Pressure-side European tube assemblies needing a re-breakable joint.

Cross-Reference

• Metric Heavy (S) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	F1	F2	L	S1	S2	Material	Finish
MHF-MHF-1414	M14x1.5 (6S)	M14x1.5 (6S)	M14x1.5 (6S)	M14x1.5 (6S)	32mm	17mm	17mm	Mild steel	Plated finish
MHF-MHF-1416	M14x1.5 (6S)	M16x1.5 (8S)	M14x1.5 (6S)	M16x1.5 (8S)	33mm	17mm	19mm	Mild steel	Plated finish
MHF-MHF-1418	M14x1.5 (6S)	M18x1.5 (10S)	M14x1.5 (6S)	M18x1.5 (10S)	33mm	17mm	22mm	Mild steel	Plated finish
MHF-MHF-1420	M14x1.5 (6S)	M20x1.5 (12S)	M14x1.5 (6S)	M20x1.5 (12S)	37mm	17mm	24mm	Mild steel	Plated finish
MHF-MHF-1616	M16x1.5 (8S)	M16x1.5 (8S)	M16x1.5 (8S)	M16x1.5 (8S)	33mm	19mm	19mm	Mild steel	Plated finish
MHF-MHF-1618	M16x1.5 (8S)	M18x1.5 (10S)	M16x1.5 (8S)	M18x1.5 (10S)	33mm	19mm	22mm	Mild steel	Plated finish
MHF-MHF-1620	M16x1.5 (8S)	M20x1.5 (12S)	M16x1.5 (8S)	M20x1.5 (12S)	37mm	19mm	24mm	Mild steel	Plated finish
MHF-MHF-1818	M18x1.5 (10S)	M18x1.5 (10S)	M18x1.5 (10S)	M18x1.5 (10S)	33mm	22mm	22mm	Mild steel	Plated finish
MHF-MHF-1820	M18x1.5 (10S)	M20x1.5 (10S)	M18x1.5 (10S)	M20x1.5 (10S)	37mm	22mm	24mm	Mild steel	Plated finish
MHF-MHF-1824	M18x1.5 (10S)	M24x1.5 (16S)	M18x1.5 (10S)	M24x1.5 (16S)	39mm	22mm	30mm	Mild steel	Plated finish
MHF-MHF-2020	M20x1.5 (12S)	M20x1.5 (12S)	M20x1.5 (12S)	M20x1.5 (12S)	37mm	24mm	24mm	Mild steel	Plated finish
MHF-MHF-2024	M20x1.5 (12S)	M24x1.5 (16S)	M20x1.5 (12S)	M24x1.5 (16S)	39mm	24mm	30mm	Mild steel	Plated finish
MHF-MHF-2030	M20x1.5 (12S)	M30x2 (20S)	M20x1.5 (12S)	M30x2 (20S)	53.5mm	24mm	36mm	Mild steel	Plated finish
MHF-MHF-2222	M22x1.5 (14S)	M22x1.5 (14S)	M22x1.5 (14S)	M22x1.5 (14S)	39mm	27mm	27mm	Mild steel	Plated finish
MHF-MHF-2424	M24x1.5 (16S)	M24x1.5 (16S)	M24x1.5 (16S)	M24x1.5 (16S)	39mm	30mm	30mm	Mild steel	Plated finish
MHF-MHF-2430	M24x1.5 (16S)	M30x2 (20S)	M24x1.5 (16S)	M30x2 (20S)	53.5mm	30mm	36mm	Mild steel	Plated finish
MHF-MHF-2436	M24x1.5 (16S)	M36x2 (25S)	M24x1.5 (16S)	M36x2 (25S)	55mm	30mm	46mm	Mild steel	Plated finish
MHF-MHF-2442	M24x1.5 (16S)	M42x2 (30S)	M24x1.5 (16S)	M42x2 (30S)	52mm	30mm	50mm	Mild steel	Plated finish
MHF-MHF-3030	M30x2 (20S)	M30x2 (20S)	M30x2 (20S)	M30x2 (20S)	53.5mm	36mm	36mm	Mild steel	Plated finish
MHF-MHF-3036	M30x2 (20S)	M36x2 (25S)	M30x2 (20S)	M36x2 (25S)	55mm	30mm	46mm	Mild steel	Plated finish
MHF-MHF-3042	M30x2 (20S)	M42x2 (30S)	M30x2 (20S)	M42x2 (30S)	52mm	30mm	50mm	Mild steel	Plated finish
MHF-MHF-3052	M30x2 (20S)	M52x2 (38S)	M30x2 (20S)	M52x2 (38S)	61mm	30mm	60mm	Mild steel	Plated finish
MHF-MHF-3636	M36x2 (25S)	M36x2 (25S)	M36x2 (25S)	M36x2 (25S)	55mm	46mm	46mm	Mild steel	Plated finish
MHF-MHF-3642	M36x2 (25S)	M42x2 (30S)	M36x2 (25S)	M42x2 (30S)	52mm	46mm	50mm	Mild steel	Plated finish
MHF-MHF-3652	M36x2 (25S)	M52x2 (38S)	M36x2 (25S)	M52x2 (38S)	61mm	46mm	60mm	Mild steel	Plated finish
MHF-MHF-4242	M42x2 (30S)	M42x2 (30S)	M42x2 (30S)	M42x2 (30S)	52mm	50mm	50mm	Mild steel	Plated finish
MHF-MHF-4252	M42x2 (30S)	M52x2 (38S)	M42x2 (30S)	M52x2 (38S)	61mm	50mm	60mm	Mild steel	Plated finish
MHF-MHF-5252	M52x2 (38S)	M52x2 (38S)	M52x2 (38S)	M52x2 (38S)	61mm	60mm	60mm	Mild steel	Plated finish

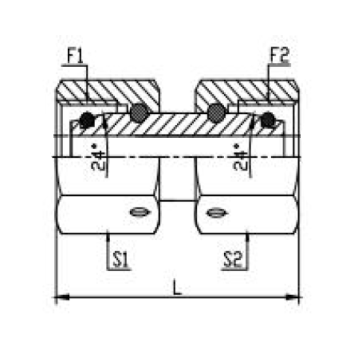

Key: L overall length, S1 hex across flats 2, S2 hex across flats 3. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
