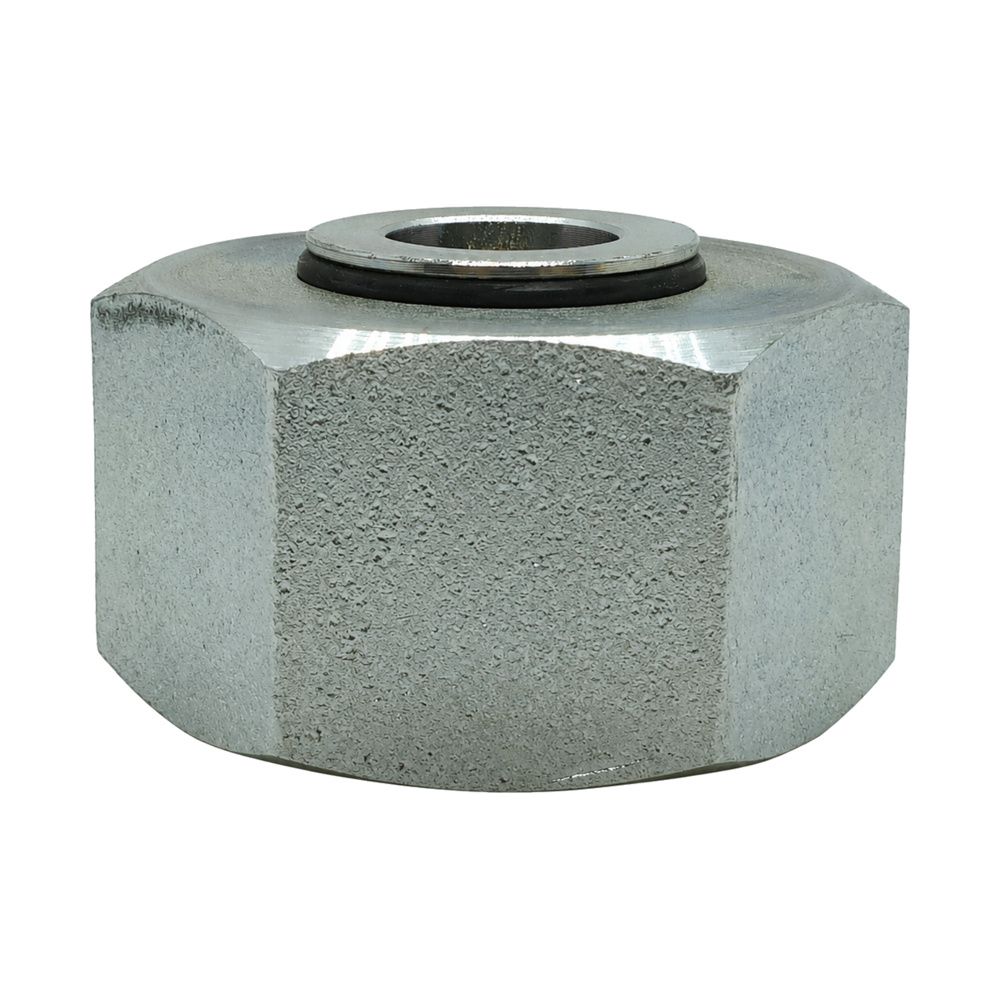

Metric Heavy (S) Swivel Female Cap

A heavy series metric cap for covering an exposed S series male cone on European-built machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• Metric Heavy (S) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, heavy series. It pulls onto the mating 24° cone and swivels so the tube is not twisted.

How to Choose

• A cap is female and covers a male end. A plug is male and blocks a female port. Check which the open connection is before you order.
• Heavy (S) and light (L) share some thread sizes but the cones differ. Check the series.
• Seals on the 24° cone, so nothing on the thread.

Technicians Advice

Cap the S series ends first when you strip a machine. They are the high-pressure lines, and a cone that gets knocked while the machine is in bits is the one that weeps when it all goes back together.

Where You’ll Find It

• Metric Heavy (S) Swivel Female – Pressure-side European tube assemblies needing a re-breakable joint.

Cross-Reference

• Metric Heavy (S) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	H	Material	Finish
MHF-14	M14x1.5 (6S)	17mm	Mild steel	Plated finish
MHF-16	M16x1.5 (8S)	19mm	Mild steel	Plated finish
MHF-18	M18x1.5 (10S)	22mm	Mild steel	Plated finish
MHF-20	M20x1.5 (12S)	24mm	Mild steel	Plated finish
MHF-22	M22x1.5 (14S)	27mm	Mild steel	Plated finish
MHF-24	M24x1.5 (16S)	30mm	Mild steel	Plated finish
MHF-30	M30x2 (20S)	36mm	Mild steel	Plated finish
MHF-36	M36x2 (25S)	46mm	Mild steel	Plated finish
MHF-42	M42x2 (30S)	50mm	Mild steel	Plated finish
MHF-52	M52x2 (38S)	60mm	Mild steel	Plated finish

Key: H centre to face. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
