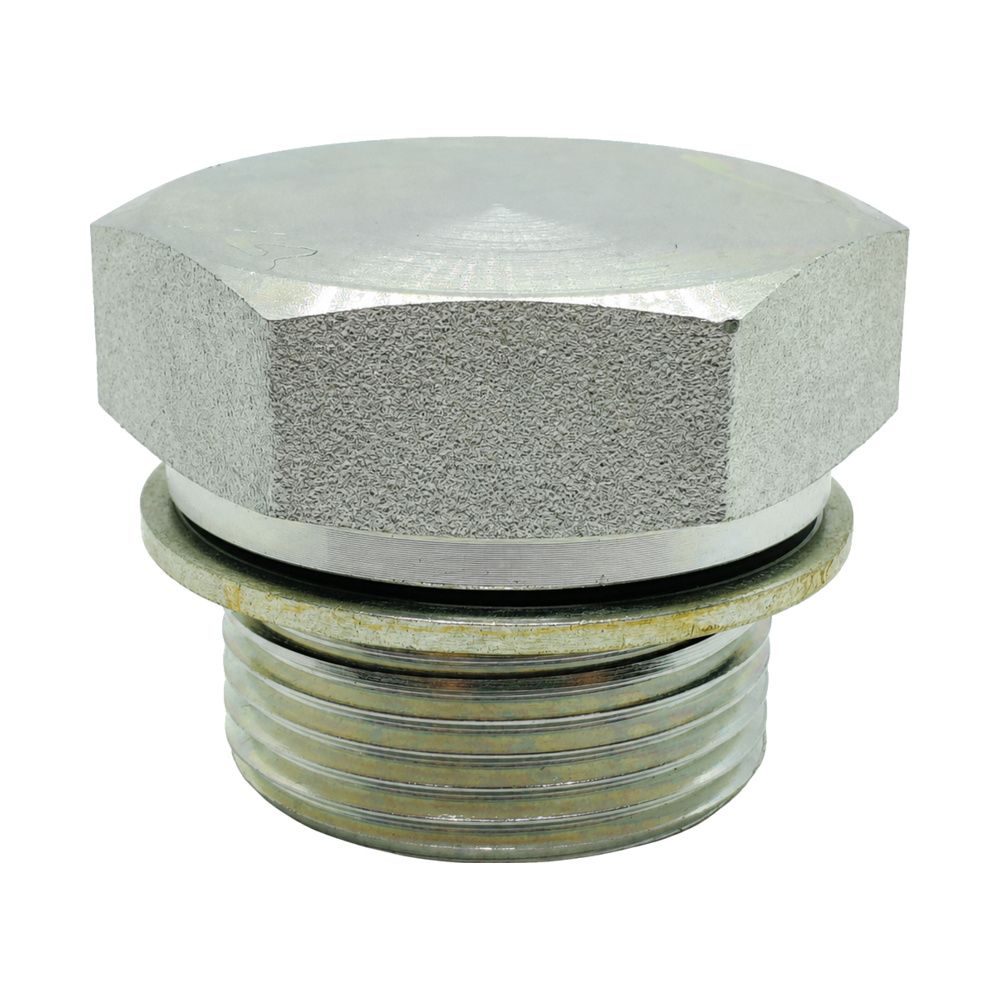

Metric Stud Male Blanking Plug

A metric stud plug with a soft seal under the shoulder, for blanking a straight metric port on European-built machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• Metric Stud Male – metric straight thread with a captive soft seal. It seals on a bonded washer or O-ring under the stud shoulder, not on the thread.

How to Choose

• A plug is male and blocks a female port. A cap is female and covers a male end. Work out which one the open connection is before you order.
• Seals on a bonded washer or O-ring under the shoulder, not on the thread.
• The port face under the shoulder must be flat and clean.

Technicians Advice

The seal under the shoulder is a one-use item. Reusing a flattened washer on a blanking plug is the most common reason a port that has never had a hose on it ends up weeping.

Where You’ll Find It

• Metric Stud Male – European valve blocks and manifolds using a metric port with a soft seal under the shoulder.

Cross-Reference

• Metric Stud Male – Metric straight thread with a bonded washer or O-ring. Confirm the port series against the block before ordering.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

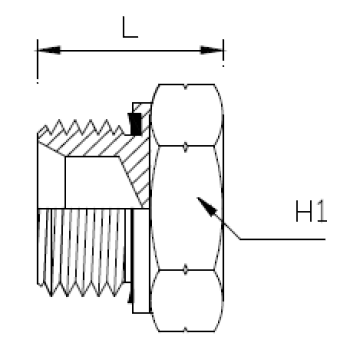

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	L	H1	Material	Finish
MSM-10x1	M10x1.0	15mm	14mm	Mild steel	Plated finish
MSM-12x1.5	M12x1.5	17mm	17mm	Mild steel	Plated finish
MSM-14x1.5	M14x1.5	19mm	19mm	Mild steel	Plated finish
MSM-18x1.5	M18x1.5	20mm	24mm	Mild steel	Plated finish
MSM-20x1.5	M20x1.5	23mm	27mm	Mild steel	Plated finish
MSM-22x1.5	M22x1.5	23mm	27mm	Mild steel	Plated finish
MSM-24x1.5	M24x1.5	25mm	30mm	Mild steel	Plated finish
MSM-26x1.5	M26x1.5	28mm	32mm	Mild steel	Plated finish
MSM-27x1.5	M27x1.5	28mm	32mm	Mild steel	Plated finish
MSM-27x2	M27x2	28mm	32mm	Mild steel	Plated finish
MSM-30x1.5	M30x1.5	30mm	36mm	Mild steel	Plated finish
MSM-30x2	M30x2	30mm	36mm	Mild steel	Plated finish
MSM-33x1.5	M33x1.5	35mm	41mm	Mild steel	Plated finish
MSM-33x2	M33x2	35mm	41mm	Mild steel	Plated finish
MSM-38x1.5	M38x1.5	36mm	50mm	Mild steel	Plated finish
MSM-38x2	M38x2	36mm	50mm	Mild steel	Plated finish
MSM-42x2	M42x2	37mm	50mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
