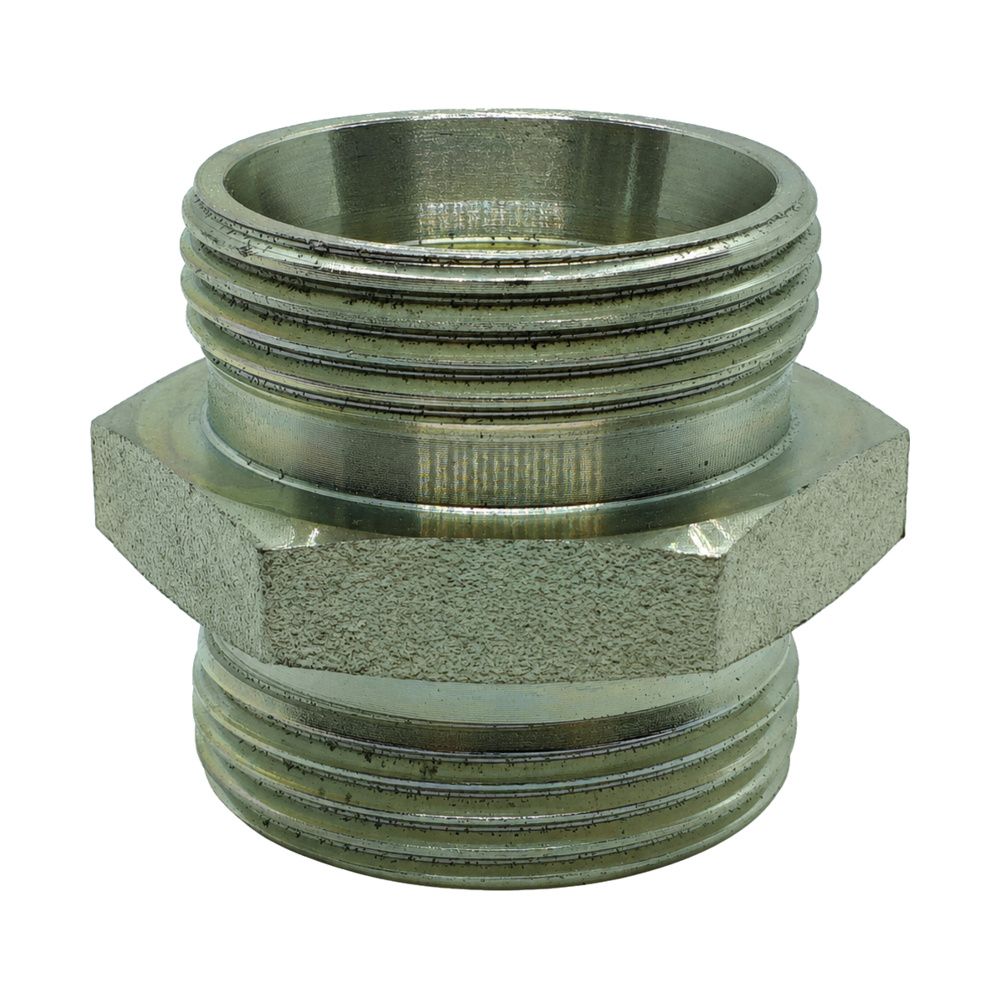

Metric Extra Light (LL) Male x Metric Extra Light (LL) Male Straight Adaptor

Extra light series metric both ends. The smallest of the three DIN 2353 ranges, used on gauge lines, pilot lines and low-pressure instrumentation on European-built machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Extra Light (LL) Male – DIN 2353 / ISO 8434-1 24° cone, extra-light series. It seals on the 24° cone and suits small-bore, low-pressure instrument and pilot lines.

How to Choose

• LL, L and S are three different series. Extra light is the thinnest walled and the lowest rated, so it belongs on signal and gauge work rather than a pump line.
• The thread sizes in the LL range overlap the L range in places. Check the series marked on the tube nut, not just the thread size.
• Both ends are the same in this part, so it is a plain joiner for extending or repairing an existing LL run.

Technicians Advice

Extra light tube is easy to over-tighten because the fitting feels small in the hand and you cannot get much feedback through a small spanner. Wind it to the point the cone loads up and stop there. Crushing an LL cone deforms the tube behind it and you end up replacing the run.

Where You’ll Find It

• Metric Extra Light (LL) Male – Instrument, gauge and pilot lines on European equipment, typically 4 to 8 mm tube.

Cross-Reference

• Metric Extra Light (LL) Male – DIN 2353 / ISO 8434-1 24° cone, extra-light (LL) series.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	F1	F2	L1	L2	S	D1	D2	Material	Finish
MLLM-MLLM-1010	M10x1.0 - 6LL	M10x1.0 - 6LL	15mm	15mm	9mm	4.5mm	4.5mm	Mild steel	Plated finish

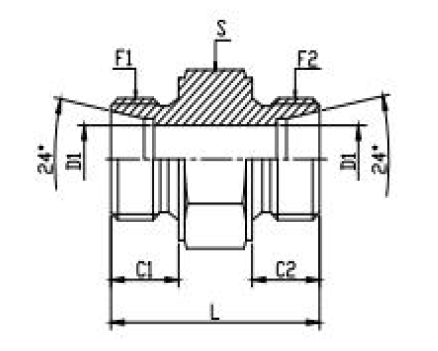

Key: L1 length 1, L2 length 2, S hex across flats, D1 bore 1, D2 bore 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
