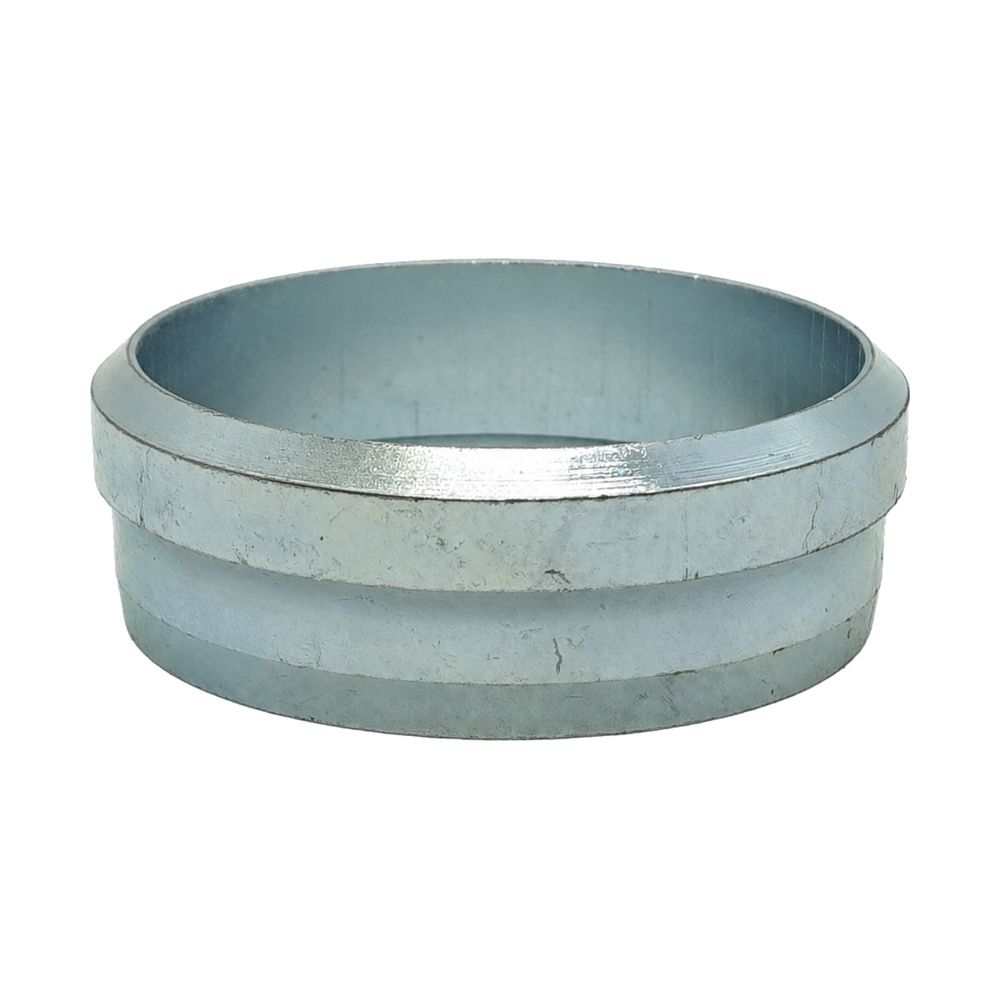

Metric Cutting Rings

Replacement cutting rings for DIN 2353 metric tube assemblies. The ring that bites into the tube and forms the seal against the 24° cone.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• Metric Cutting Ring – DIN 2353 / ISO 8434-1 progressive-ring bite sleeve. It bites into the tube outside diameter as the nut is tightened, forming the seal between tube and 24° cone.

How to Choose

• This is a spare part, sold on its own so a damaged one does not mean replacing the whole assembly.
• Light (L) and heavy (S) rings are different parts. Match the series.
• A cutting ring is a one-use item once it has bitten. Reusing one is the most common cause of a metric tube joint that will not seal.

Technicians Advice

Pre-assemble the ring properly, in a hardened pre-setting tool or the fitting body, before the final assembly. A ring set at an angle bites unevenly and the joint weeps from the first pressurisation.

Where You’ll Find It

• Metric Cutting Ring – DIN 2353 metric tube assemblies on European-built machinery – the consumable part of every bite-type joint.

Cross-Reference

• Metric Cutting Ring – DIN 2353 cutting ring, also called a bite ring or progressive ring. Parker call the system EO and EO-2. Light (L) and heavy (S) rings are different parts.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.
