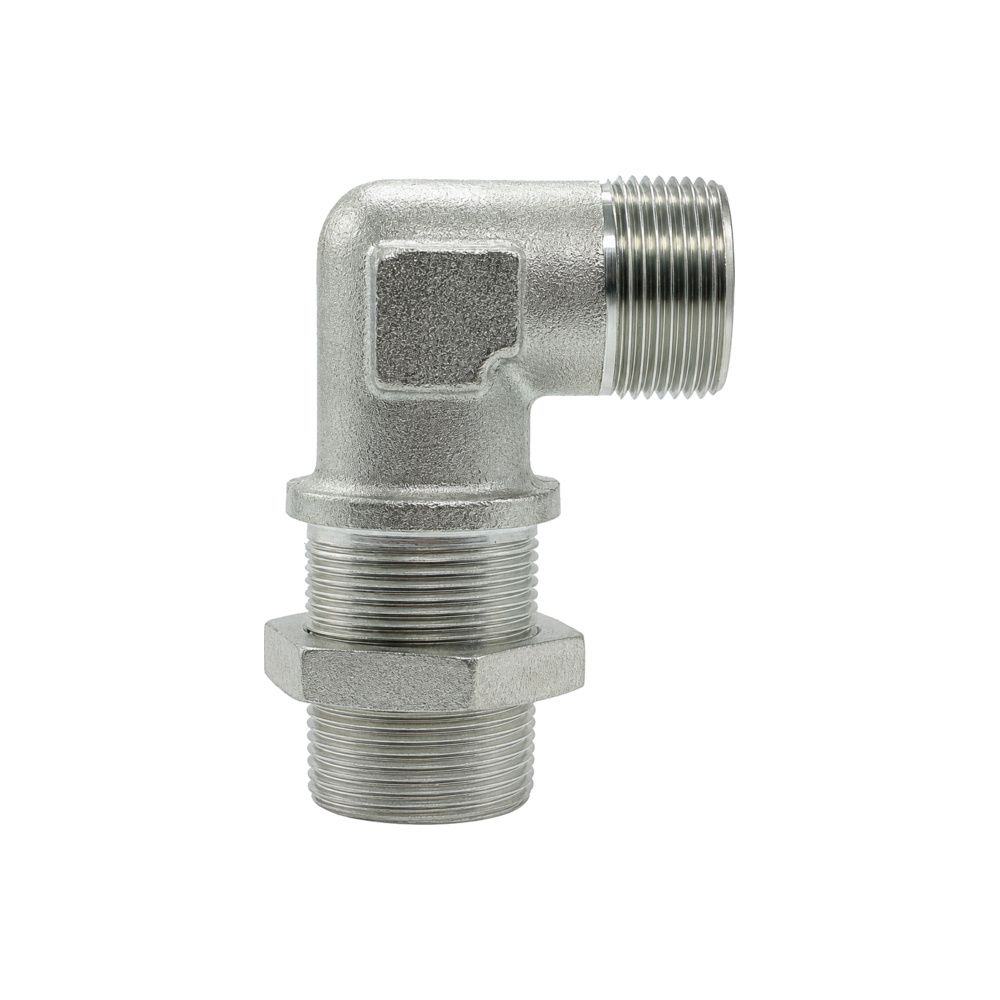

Metric Bulkhead Male x Metric Heavy (S) Male 90° Compact Bulkhead Elbow

A metric bulkhead body with a 90° compact bend to a heavy series metric male cone. High-pressure metric pass-through that turns the line square.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: The Advantages of Hydraulic Bulkhead Fittings: Essential Components for Fluid Systems

Thread Standards

• Metric Bulkhead Male – DIN 2353 / ISO 8434-1 24° cone on a bulkhead body with a locknut. It seals on the 24° cone; the bulkhead thread and locknut clamp the body to the panel and do no sealing.
• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy series. It seals on the 24° cone and is built for higher pressures than the light series.

How to Choose

• The bulkhead thread and locknut clamp the fitting to the panel. They do no sealing, so do not try to cure a leak by tightening the locknut.
• Check your panel hole size and thickness before you order. The body has a set thread length under the shoulder and a thick panel eats it.
• The bend is fixed, so set the orientation before the locknut is tightened.
• Heavy (S) will not seal in a light (L) port. Check the series on the mating nut.

Technicians Advice

Orientation before torque. On the S series the pressures are high enough that a hose pulled to the wrong angle works the cone every cycle, and that shows up as a weep weeks later rather than straight away.

Where You’ll Find It

• Metric Bulkhead Male – panel, chassis and tank-wall pass-throughs on European-built machinery – Liebherr, Wacker Neuson, Atlas, Manitou – and any tidy tube-work build.
• Metric Heavy (S) Male – European machinery on the pressure side, where working pressures exceed the light series rating.

Cross-Reference

• Metric Bulkhead Male – DIN 2353 / ISO 8434-1 24° cone, bulkhead style. Parker call this range EO and EO-2. Available in both light (L) and heavy (S) series, which do not interchange.
• Metric Heavy (S) Male – DIN 2353 / ISO 8434-1 24° cone, heavy (S) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	L1	L2	S1	S2	Material	Finish
MBM-MHM-90C-1414	23mm	53mm	12mm	19mm	Mild steel	Plated finish
MBM-MHM-90C-1616	24mm	54mm	14mm	22mm	Mild steel	Plated finish
MBM-MHM-90C-1818	25mm	57mm	17mm	24mm	Mild steel	Plated finish
MBM-MHM-90C-2020	29mm	59mm	17mm	27mm	Mild steel	Plated finish
MBM-MHM-90C-2222	30mm	63mm	19mm	30mm	Mild steel	Plated finish
MBM-MHM-90C-2424	33mm	64mm	24mm	32mm	Mild steel	Plated finish
MBM-MHM-90C-3030	37mm	74mm	27mm	41mm	Mild steel	Plated finish
MBM-MHM-90C-3636	42mm	81mm	36mm	46mm	Mild steel	Plated finish
MBM-MHM-90C-4242	49mm	90mm	41mm	50mm	Mild steel	Plated finish
MBM-MHM-90C-5252	57mm	96mm	50mm	65mm	Mild steel	Plated finish
MHM-MBM-90C-1414	23mm	53mm	12mm	19mm	Mild steel	Plated finish
MHM-MBM-90C-1616	24mm	54mm	14mm	22mm	Mild steel	Plated finish
MHM-MBM-90C-1818	25mm	57mm	17mm	24mm	Mild steel	Plated finish
MHM-MBM-90C-2020	29mm	59mm	17mm	27mm	Mild steel	Plated finish
MHM-MBM-90C-2222	30mm	63mm	19mm	30mm	Mild steel	Plated finish
MHM-MBM-90C-2424	33mm	64mm	24mm	32mm	Mild steel	Plated finish
MHM-MBM-90C-3030	37mm	74mm	27mm	41mm	Mild steel	Plated finish
MHM-MBM-90C-3636	42mm	81mm	36mm	46mm	Mild steel	Plated finish
MHM-MBM-90C-4242	49mm	90mm	41mm	50mm	Mild steel	Plated finish
MHM-MBM-90C-5252	57mm	96mm	50mm	65mm	Mild steel	Plated finish

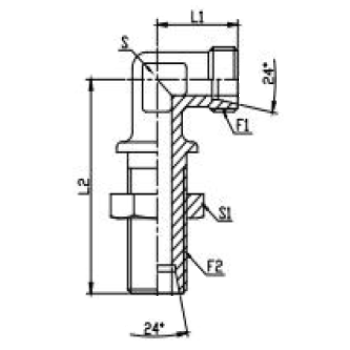

Key: L1 length 1, L2 length 2, S1 hex across flats 2, S2 hex across flats 3. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
