Male Rod Clevis with Bronze Bushes for AG Hydraulic Cylinders, 1" Pin, 1-1/4" UNF Thread

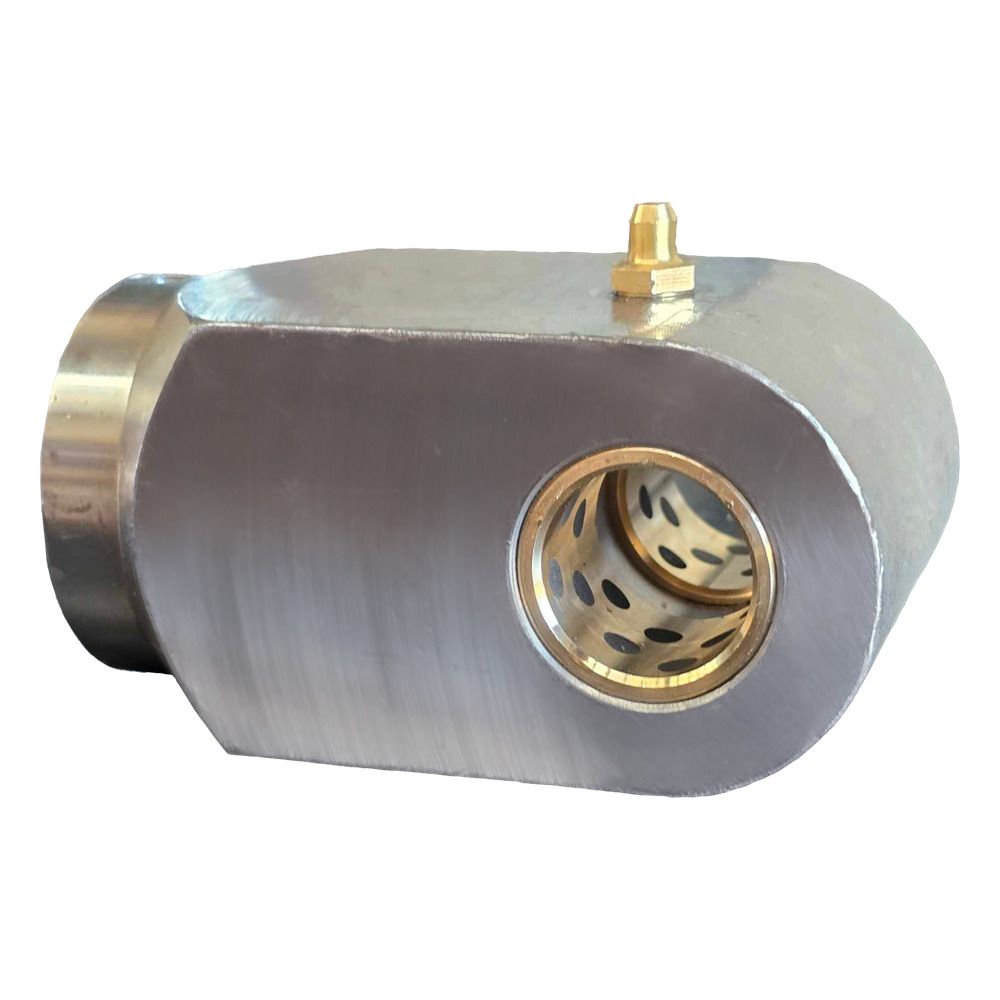

The male rod clevis block with bronze bushes pressed into the eye. The bushes take the wear instead of the steel, so it suits pivots that work hard and often: loaders, tipping gear, log splitters, anything that cycles all day. Worn bushes can be replaced, the block keeps going.

Ways to buy this part:

• Off the shelf, ready to fit.
• Light duty job? The plain bore version is listed below.
• Other sizes: call us.

What is in the box

• 1 x male rod clevis block with bronze bushes fitted.
• 1 x grease nipple, grub screw and plastic insert.
• Pin not included.

Specifications

How to choose

• Rod thread must be 1-1/4" UNF.
• Pin must be 1".
• Go bushed when the pivot moves under load many times a day, or where the old eye has worn oval.

Technicians Advice

Bronze bushes only live a long life if grease gets to them. Pump grease in until you see fresh grease at both sides of the eye, and do it again at every service. Use a hardened, ground pin, not a length of bright bar: a soft pin chews the bush out in no time. If you are replacing a worn plain eye, check the fork on the machine as well. There is no point fitting a new bush to an oval fork hole.
