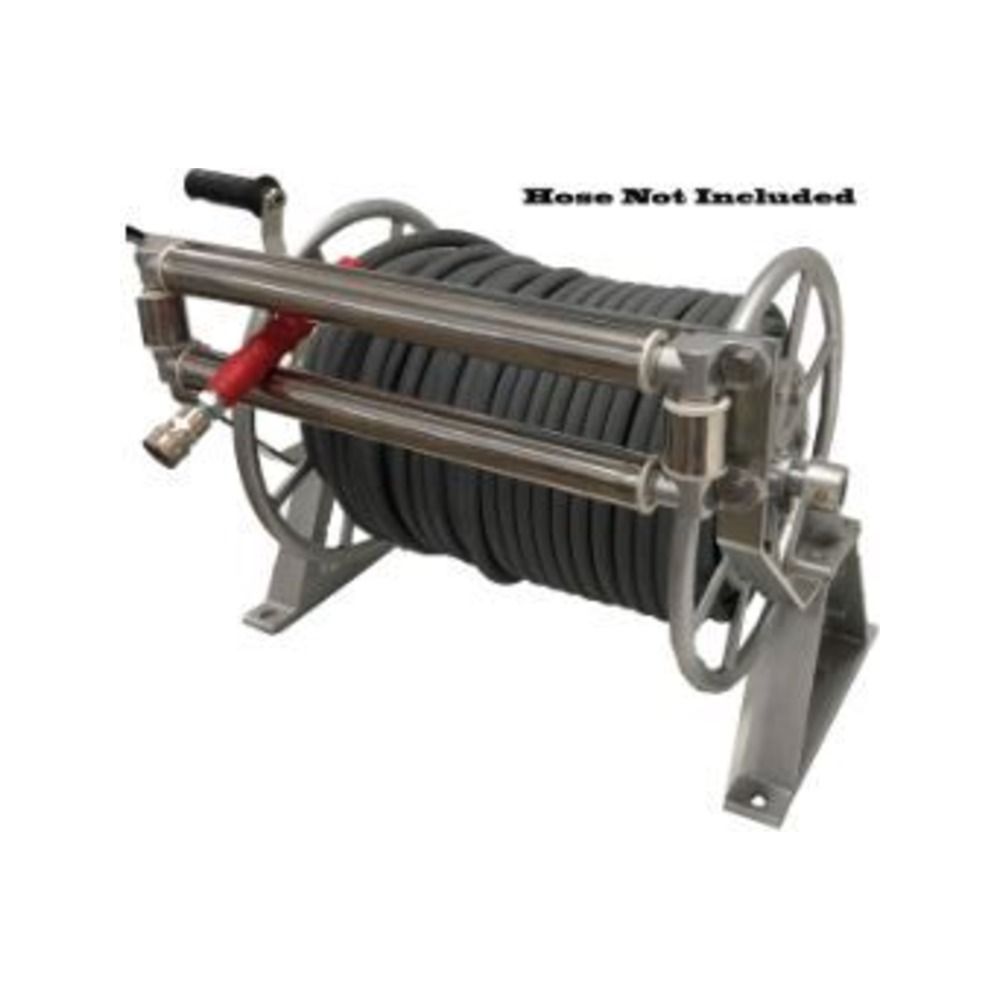

Jetter Hose Reel with Hose Guide

Long capacity drain jetting reel - 260 m of 1/4" hose on one drum.

Ways to buy this

• Off the shelf - stocked and dispatched direct
• Every model carries its own part number, so you can order the exact replacement without guessing
• Want it supplied with the hose already fitted? See our Hose Reels with Hose Fitted range
• Need something outside this range? Call us - we can get most of the factory range in, including sizes we do not list

What is in the box

• Hand crank drum with fitted hose guide
• 6,000 psi rated
• Hose is not included

Specifications

How to choose

• This is a drain jetting drum, sized for 1/4 inch hose
• For 3/8 inch jetter hose, look at the A-frame range instead
• Check the deck space - a 260 m drum is physically large

Technicians Advice

The fitted hose guide is what makes 260 m practical. Without one, the hose piles up at one end of the drum and the last 40 m will not go back on. Keep the guide chain or screw adjusted as the hose wears and gets thinner.

Large capacity reels are limited by the swivel, not the drum. The AVM8000FE ships as a 2,900 psi assembly because of the swivel fitted, and the band underneath is already reinforced - fit a 600 bar swivel and you have an 8,700 psi reel. Use a proper anaerobic sealing compound on that swivel thread when you do it, not tape.

Before you mount anything this size, work out the loaded weight: 170 metres of 3/8 inch hose full of water is well over 100 kg on the bracket, and that is before anyone leans on it. Fit the drum brake and use it. A big drum that overruns when you stop pulling will throw three or four turns of loose hose off the side and jam itself against the frame.

Complete your setup

Browse A-Frame and Heavy Duty Hose ReelsBrowse Hose Reel SwivelsReels supplied with hose

Ordering and delivery

Freight is calculated at checkout on weight and destination. Hose reels are dispatched direct from the Australian distributor, so allow one to three business days to metro areas and a little longer regionally.

Buying in bulk or fitting out a fleet? Call us and we will price the job.

Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au - real technicians, real answers.
