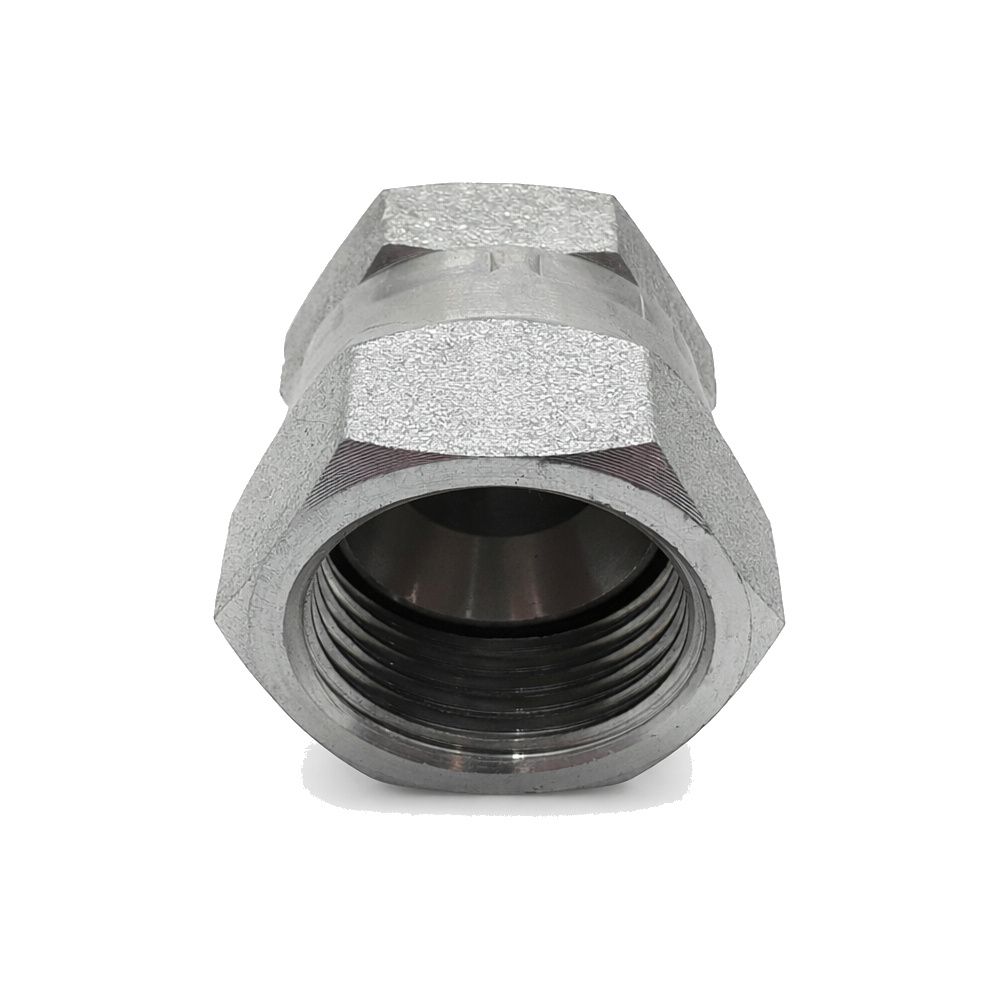

JIS BSP Female Cap

A JIS BSP female cap with a 30° seat, for covering exposed connections on Japanese-built machinery.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• JIS BSP Swivel Female (inverted BSP) – JIS B8363 – BSPP thread to ISO 228 with a 60° cone seat. It seals on the 60° cone and swivels, so the hose is not wound up on assembly.

How to Choose

• A cap is female and covers a male end. A plug is male and blocks a female port. Check which the open connection is before you order.
• JIS BSP uses a BSP thread with a 30° flare seat, which is not the same as a standard BSP cone.
• Check the seat angle as well as the thread.

Technicians Advice

JIS catches people out because the thread runs on perfectly and the seat is wrong. If it threads freely but will not pull down, stop and check the seat rather than forcing it.

Where You’ll Find It

• JIS BSP Swivel Female (inverted BSP) – Hose ends on Japanese excavators and loaders, where the port is JIS rather than standard BSP.

Cross-Reference

• JIS BSP Swivel Female (inverted BSP) – JIS B8363 60° cone on a BSPP (ISO 228) thread. Also written JIS BSP or inverted BSP.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	Hex	Material	Finish
BJF-04	19mm	Mild steel	Plated finish
BJF-06	22mm	Mild steel	Plated finish
BJF-08	27mm	Mild steel	Plated finish
BJF-12	32mm	Mild steel	Plated finish
BJF-16	38mm	Mild steel	Plated finish

Key: Hex across flats. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
