JIC 37° Male x UNO O-Ring Boss Male x JIC 37° Male Run Tee

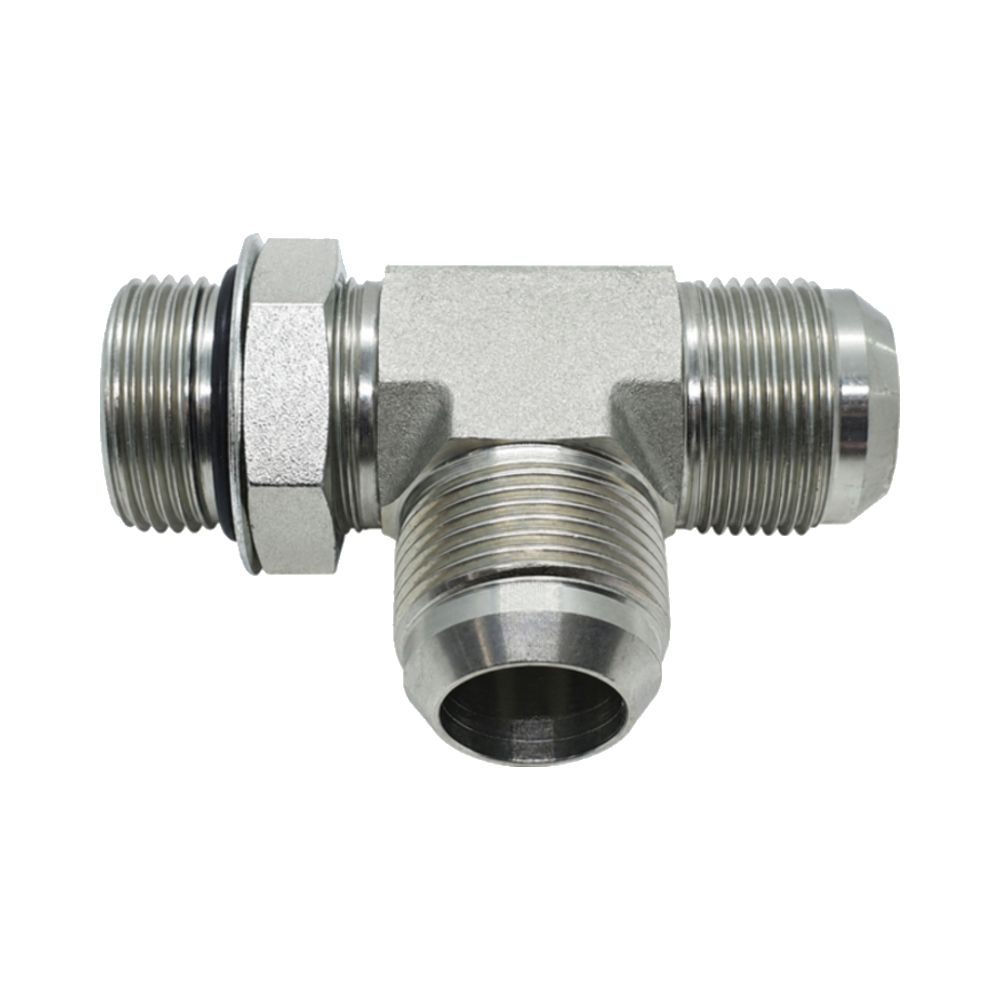

A UNO O-ring boss male in the middle with a JIC male at each end. Bolts into a UNO port on an American pump or valve and carries a JIC line past it.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Stop Leaks! Connect Your JIC Hose to UNO Ports with These Adapters

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. It seals on an O-ring squeezed against the port spotface, not on the thread.

How to Choose

• On a run tee the odd port sits in the middle of the run and the two matching ports are the ends. It is the opposite layout to a branch tee, so check which one the job needs before you order.
• The UNO leg seals on its O-ring at the port spotface. The JIC ends seal on their cones. No sealant anywhere.
• Check the UNO spotface for nicks before fitting. A scored face weeps past a good ring.

Technicians Advice

Seat the UNO leg first, ring just kissing the spotface then the specified turn, and stop. Once both hoses are on you cannot get a spanner squarely on that leg.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.
• SAE O-Ring Boss Male (UNO/UNF) – Cylinder end caps, pump and valve bosses on US-built plant. Common on Australian-assembled cylinders too, where it is usually called UNO.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.
• SAE O-Ring Boss Male (UNO/UNF) – SAE J1926 / ISO 11926 straight thread O-ring boss. Also written ORB, SAE ORB or UNO. Thread form is UN/UNF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	H1	S1	C	Material	Finish
JIM-UNM-JIM-070707	7/16" JIC	7/16" UNO	14.3mm	–	11.3mm	7/16" JIC	Mild steel	Plated finish
JIM-UNM-JIM-121212	3/4" JIC	3/4" UNO	–	22.2mm	19.1mm	3/4" JIC	Mild steel	Plated finish
JIM-UNM-JIM-070907	7/16" JIC	9/16" UNO	17.5mm	–	14.3mm	7/16" JIC	Mild steel	Plated finish
JIM-UNM-JIM-090909	9/16" JIC	9/16" UNO	17.5mm	–	14.3mm	9/16" JIC	Mild steel	Plated finish
JIM-UNM-JIM-120912	3/4" JIC	9/16" UNO	–	–	19.1mm	3/4" JIC	Mild steel	Plated finish
JIM-UNM-JIM-141414	7/8" JIC	7/8" UNO	25.4mm	–	22.2mm	7/8" JIC	Mild steel	Plated finish
JIM-UNM-JIM-171417	1.1/16" JIC	7/8" UNO	25.4mm	–	27.0mm	1.1/16" JIC	Mild steel	Plated finish
JIM-UNM-JIM-171717	1.1/16" JIC	1.1/16" UNO	31.8mm	–	27.0mm	1.1/16" JIC	Mild steel	Plated finish
JIM-UNM-JIM-212121	1.5/16" JIC	1.5/16" UNO	38.1mm	–	33.3mm	1.5/16" JIC	Mild steel	Plated finish
JIM-UNM-JIM-262626	1.5/8" JIC	1.5/8" UNO	47.6mm	–	41.3mm	1.5/8" JIC	Mild steel	Plated finish

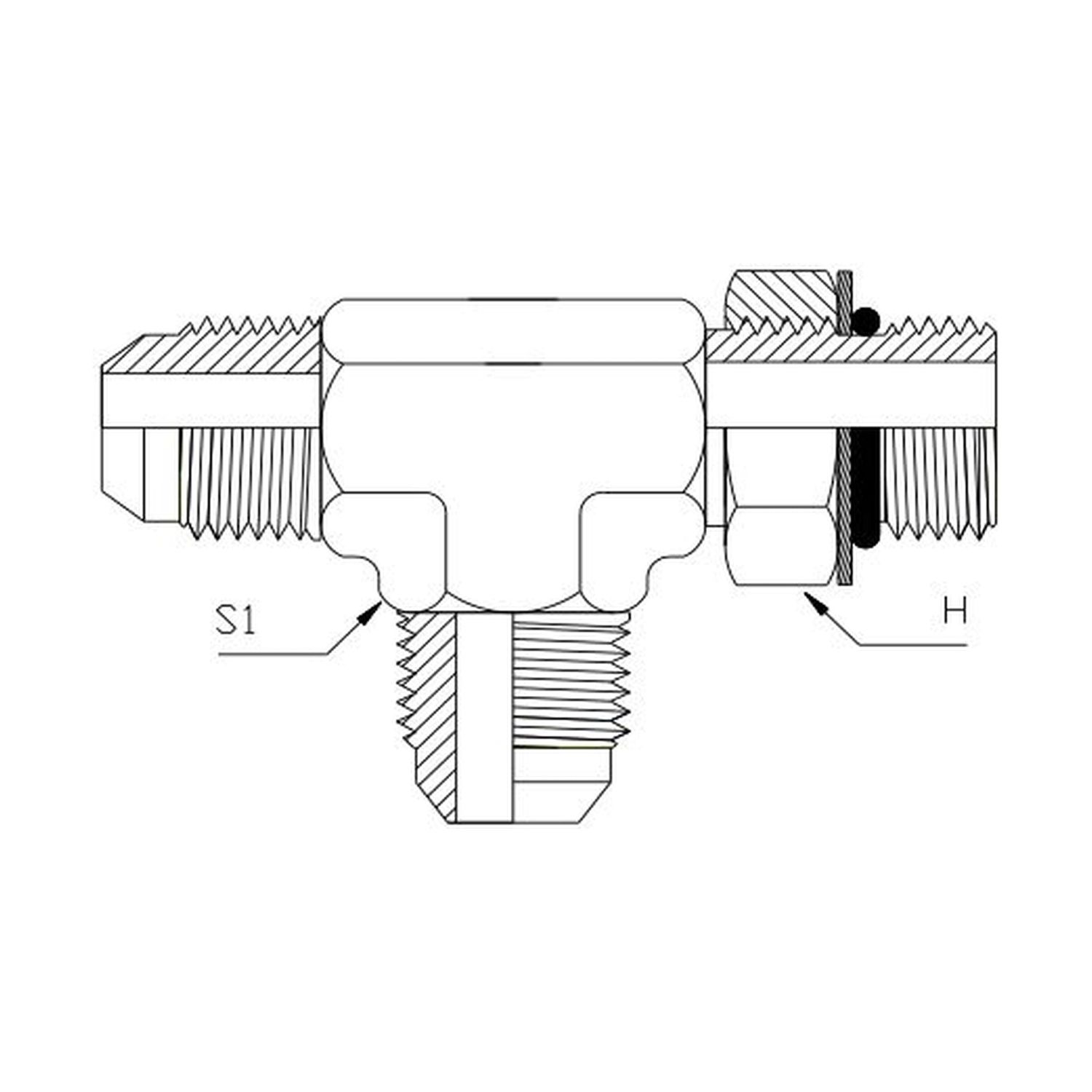

Key: H centre to face, H1 centre to face 2, S1 hex across flats 2, C across corners. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
