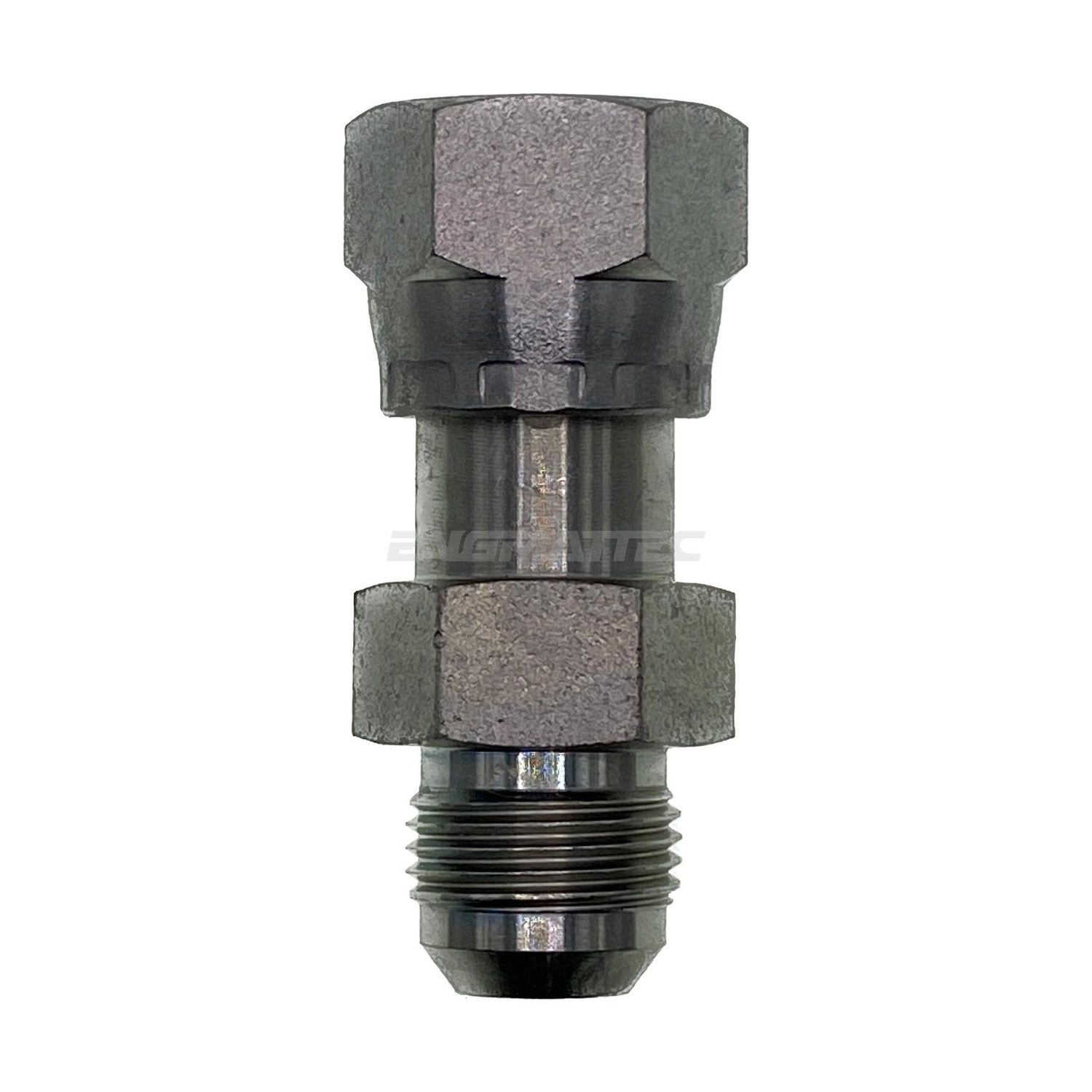

JIC 37° Male x ORFS Swivel Female Straight Adaptor

JIC male one end, O-ring face seal swivel female the other. Puts an ORFS hose onto a JIC line, the other half of the JIC-to-ORFS conversion pair.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.
• ORFS Swivel Female – SAE J1453 O-ring face seal. It clamps down onto the male flat face O-ring and swivels for alignment.

How to Choose

• Both ends seal on soft or cone faces, never on the thread. No tape, no sealant.
• The ORFS female seals on the ring in the mating flat face. Check it is seated square before you offer it up.
• Work to the dash size on the hose, not the thread size, when picking the ORFS end.

Technicians Advice

If the face seal weeps, look at the O-ring before you touch the spanner. Nine times out of ten it has been nicked going on or left out. Extra torque on a flat face flattens the ring and makes the next attempt harder.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.
• ORFS Swivel Female – Hose ends on modern high-pressure plant where a cone joint would fret loose under vibration.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.
• ORFS Swivel Female – SAE J1453 / ISO 8434-3 O-ring face seal. Parker series Seal-Lok.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	H1	Material	Finish
JIM-ORF-0709	7/16" JIC	9/16" ORFS	31mm	17.5mm	15.8mm	Mild steel	Plated finish
JIM-ORF-1416	7/8" JIC	1" ORFS	44mm	28.6mm	27.0mm	Mild steel	Plated finish
JIM-ORF-1423	7/8" JIC	1.7/16" ORFS	–	–	–	Mild steel	Plated finish
JIM-ORF-1719	1.1/16" JIC	1.3/16" ORFS	49mm	34.9mm	31.8mm	Mild steel	Plated finish
JIM-ORF-2123	1.5/16" JIC	1.7/16" ORFS	52mm	41.3mm	38.1mm	Mild steel	Plated finish
JIM-ORF-2627	1.5/8" JIC	1.11/16" ORFS	58mm	47.6mm	47.6mm	Mild steel	Plated finish
JIM-ORF-0911	9/16" JIC	11/16" ORFS	32mm	20.6mm	19.0mm	Mild steel	Plated finish
JIM-ORF-1213	3/4" JIC	13/16" ORFS	37mm	23.8mm	22.2mm	Mild steel	Plated finish

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
