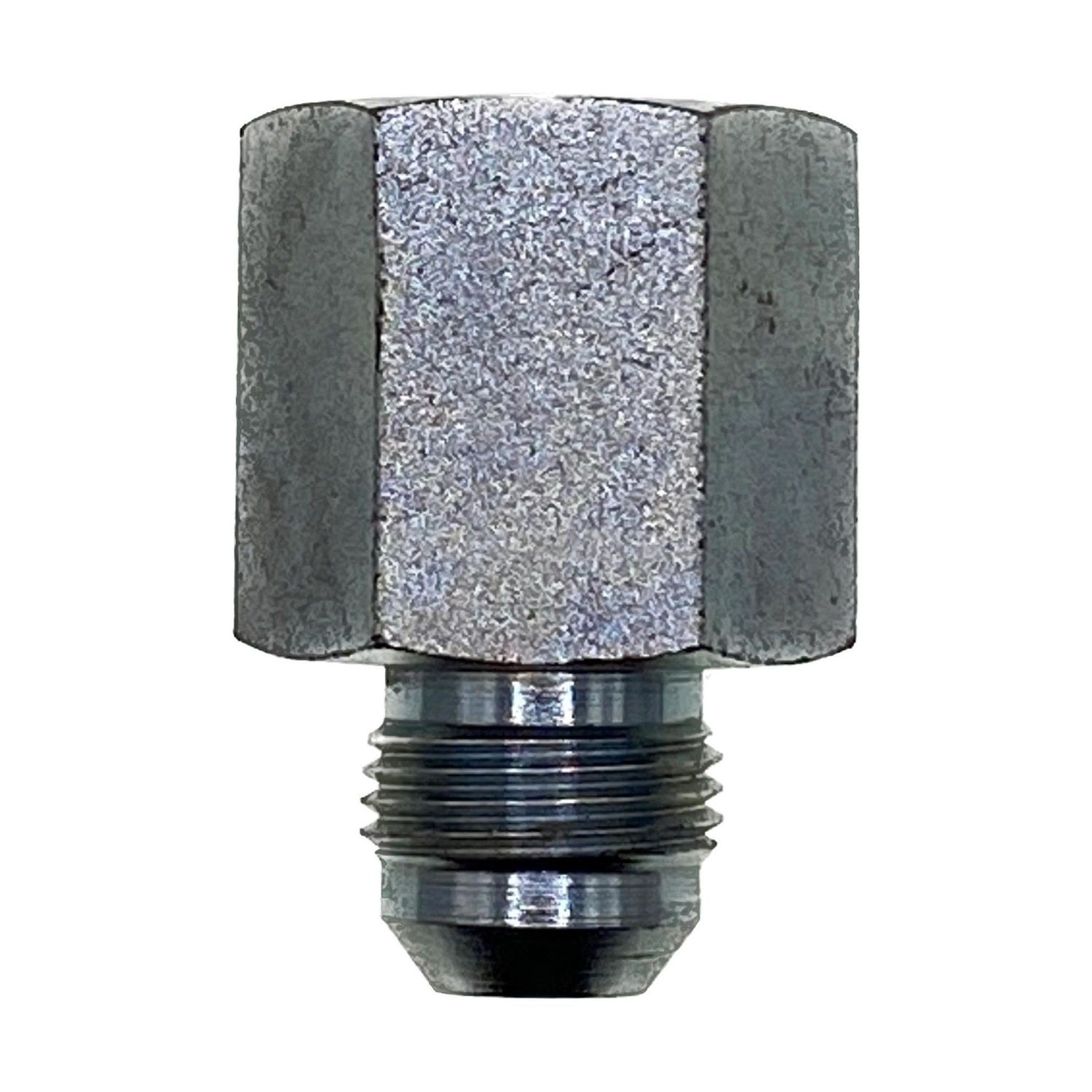

JIC 37° Male x NPT Tapered Female Straight Adaptor

JIC 37° male one end, NPT tapered female the other. Accepts an NPT male fitting and converts it out to a JIC line, the reverse of the more common JIC female to NPT male.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.
• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread. It seals on the thread and needs tape or sealant every time.

How to Choose

• The NPT female seals on the thread of whatever screws into it and needs sealant on that male.
• The JIC male seals dry on its 37° cone. Nothing on that thread.
• NPT and BSPT are not interchangeable. Confirm what the mating male actually is.

Technicians Advice

Because the female is the tapered end here, it is the part that splits if someone over-tightens the male going into it. Fit the mating male hand tight plus two or three turns and stop, and use sealant rather than torque to close the joint.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.
• NPT Tapered Female – Female side of American pipework, adaptor blocks and gauge manifolds.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.
• NPT Tapered Female – ANSI/ASME B1.20.1 tapered pipe thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	L	H1	Material	Finish
JIM-NTF-0702	30mm	14.3mm	Mild steel	Plated finish
JIM-NTF-0704	35mm	19.0mm	Mild steel	Plated finish
JIM-NTF-0802	30mm	14.3mm	Mild steel	Plated finish
JIM-NTF-0804	35mm	19.0mm	Mild steel	Plated finish
JIM-NTF-0902	30mm	15.9mm	Mild steel	Plated finish
JIM-NTF-0904	36mm	1/4mm	Mild steel	Plated finish
JIM-NTF-0906	37mm	22.2mm	Mild steel	Plated finish
JIM-NTF-0908	43mm	28.6mm	Mild steel	Plated finish
JIM-NTF-1206	40mm	22.2mm	Mild steel	Plated finish
JIM-NTF-1208	45mm	28.6mm	Mild steel	Plated finish
JIM-NTF-1408	48mm	28.6mm	Mild steel	Plated finish
JIM-NTF-1412	50mm	34.9mm	Mild steel	Plated finish
JIM-NTF-1708	52mm	31.8mm	Mild steel	Plated finish
JIM-NTF-1712	52mm	34.9mm	Mild steel	Plated finish
JIM-NTF-2116	60mm	41.3mm	Mild steel	Plated finish
JIM-NTF-2620	63mm	50.8mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 90° Compact – same threads
