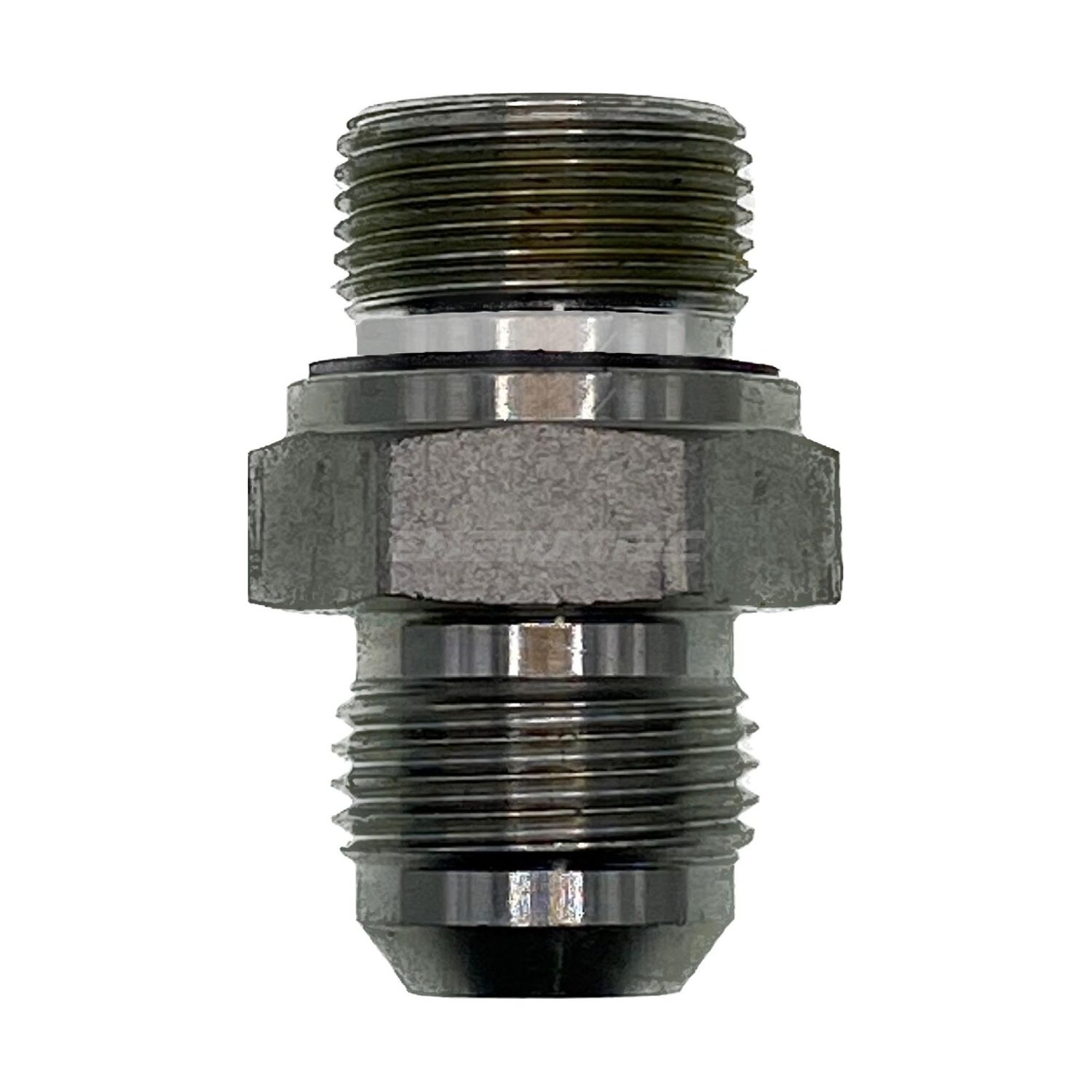

JIC 37° Male x Metric Stud Male Straight Adaptor

JIC 37° one end, metric stud with a soft seal the other. Gets a JIC hose into the straight metric ports on European pumps, valves and manifolds, where the seal sits under the shoulder rather than on the thread.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.
• Metric Stud Male – metric straight thread with a captive soft seal. It seals on a bonded washer or O-ring under the stud shoulder, not on the thread.

How to Choose

• The stud end seals on a bonded washer or O-ring under the shoulder. If the port face is not flat and clean it will weep.
• A metric stud is a straight thread. It does not tighten up on itself and it does not want thread sealant.
• Metric stud sizes run close together. M18 and M20 will both feel like they want to start, so check the thread before you wind it in.

Technicians Advice

The soft seal under the shoulder is a one-use part. Reusing a flattened bonded washer is the most common reason a metric stud port comes back weeping a fortnight later. Fit a fresh seal and pull it up to a firm feel rather than leaning on it.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.
• Metric Stud Male – European valve blocks and manifolds using a metric port with a soft seal under the shoulder.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.
• Metric Stud Male – Metric straight thread with a bonded washer or O-ring. Confirm the port series against the block before ordering.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
JIM-MSM-0708	7/16" JIC	M8x1.0	30mm	14mm	Mild steel	Plated finish
JIM-MSM-0710	7/16" JIC	M10x1.0	30mm	14mm	Mild steel	Plated finish
JIM-MSM-0712	7/16" JIC	M12x1.5	32mm	17mm	Mild steel	Plated finish
JIM-MSM-0714	7/16" JIC	M14x1.5	39mm	17mm	Mild steel	Plated finish
JIM-MSM-0716	7/16" JIC	M16x1.5	36mm	22mm	Mild steel	Plated finish
JIM-MSM-0810	1/2" JIC	M10x1.0	30mm	17mm	Mild steel	Plated finish
JIM-MSM-0912	9/16" JIC	M12x1.5	36mm	17mm	Mild steel	Plated finish
JIM-MSM-0914	9/16" JIC	M14x1.5	36mm	19mm	Mild steel	Plated finish
JIM-MSM-0916	9/16" JIC	M16x1.5	36mm	22mm	Mild steel	Plated finish
JIM-MSM-0918	9/16" JIC	M18x1.5	37mm	24mm	Mild steel	Plated finish
JIM-MSM-0920	9/16" JIC	M20x1.5	37.5mm	27mm	Mild steel	Plated finish
JIM-MSM-0922	9/16" JIC	M22x1.5	40mm	27mm	Mild steel	Plated finish
JIM-MSM-1212	3/4" JIC	M12x1.5	39mm	22mm	Mild steel	Plated finish
JIM-MSM-1214	3/4" JIC	M14x1.5	37.5mm	22mm	Mild steel	Plated finish
JIM-MSM-1216	3/4" JIC	M16x1.5	39mm	22mm	Mild steel	Plated finish
JIM-MSM-1218	3/4" JIC	M18x1.5	39.5mm	24mm	Mild steel	Plated finish
JIM-MSM-1220	3/4" JIC	M20x1.5	43mm	27mm	Mild steel	Plated finish
JIM-MSM-1222	3/4" JIC	M22x1.5	43mm	27mm	Mild steel	Plated finish
JIM-MSM-1226	3/4" JIC	M26x1.5	–	–	Mild steel	Plated finish
JIM-MSM-1416	7/8" JIC	M16x1.5	41mm	24mm	Mild steel	Plated finish
JIM-MSM-1418	7/8" JIC	M18x1.5	42mm	24mm	Mild steel	Plated finish
JIM-MSM-1420	7/8" JIC	M20x1.5	45mm	27mm	Mild steel	Plated finish
JIM-MSM-1422	7/8" JIC	M22x1.5	45mm	27mm	Mild steel	Plated finish
JIM-MSM-1426	7/8" JIC	M26x1.5	50mm	32mm	Mild steel	Plated finish
JIM-MSM-1718	1.1/16" JIC	M18x1.5	45mm	30mm	Mild steel	Plated finish
JIM-MSM-1720	1.1/16" JIC	M20x1.5	46mm	30mm	Mild steel	Plated finish
JIM-MSM-1722	1.1/16" JIC	M22x1.5	45.5mm	27mm	Mild steel	Plated finish
JIM-MSM-1724	1.1/16" JIC	M24x1.5	–	–	Mild steel	Plated finish
JIM-MSM-1726	1.1/16" JIC	M26x1.5	51mm	32mm	Mild steel	Plated finish
JIM-MSM-1727	1.1/16" JIC	M27x2	52mm	32mm	Mild steel	Plated finish
JIM-MSM-1728	1.1/16" JIC	M28x1.5	52mm	32mm	Mild steel	Plated finish
JIM-MSM-1733	1.1/16" JIC	M33x2	52mm	38mm	Mild steel	Plated finish
JIM-MSM-2126	1.5/16" JIC	M26x1.5	53mm	36mm	Mild steel	Plated finish
JIM-MSM-2127	1.5/16" JIC	M27x2.0	53mm	36mm	Mild steel	Plated finish
JIM-MSM-2133	1.5/16" JIC	M33x2	53mm	41mm	Mild steel	Plated finish
JIM-MSM-2142	1.5/16" JIC	M42x2	57mm	50mm	Mild steel	Plated finish
JIM-MSM-2633	1.5/8" JIC	M33x2	57mm	43mm	Mild steel	Plated finish
JIM-MSM-2642	1.5/8" JIC	M42x2	57mm	50mm	Mild steel	Plated finish
JIM-MSM-2648	1.5/8" JIC	M48x2	60mm	55mm	Mild steel	Plated finish
JIM-MSM-3042	1.7/8" JIC	M42x2	60mm	55mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
