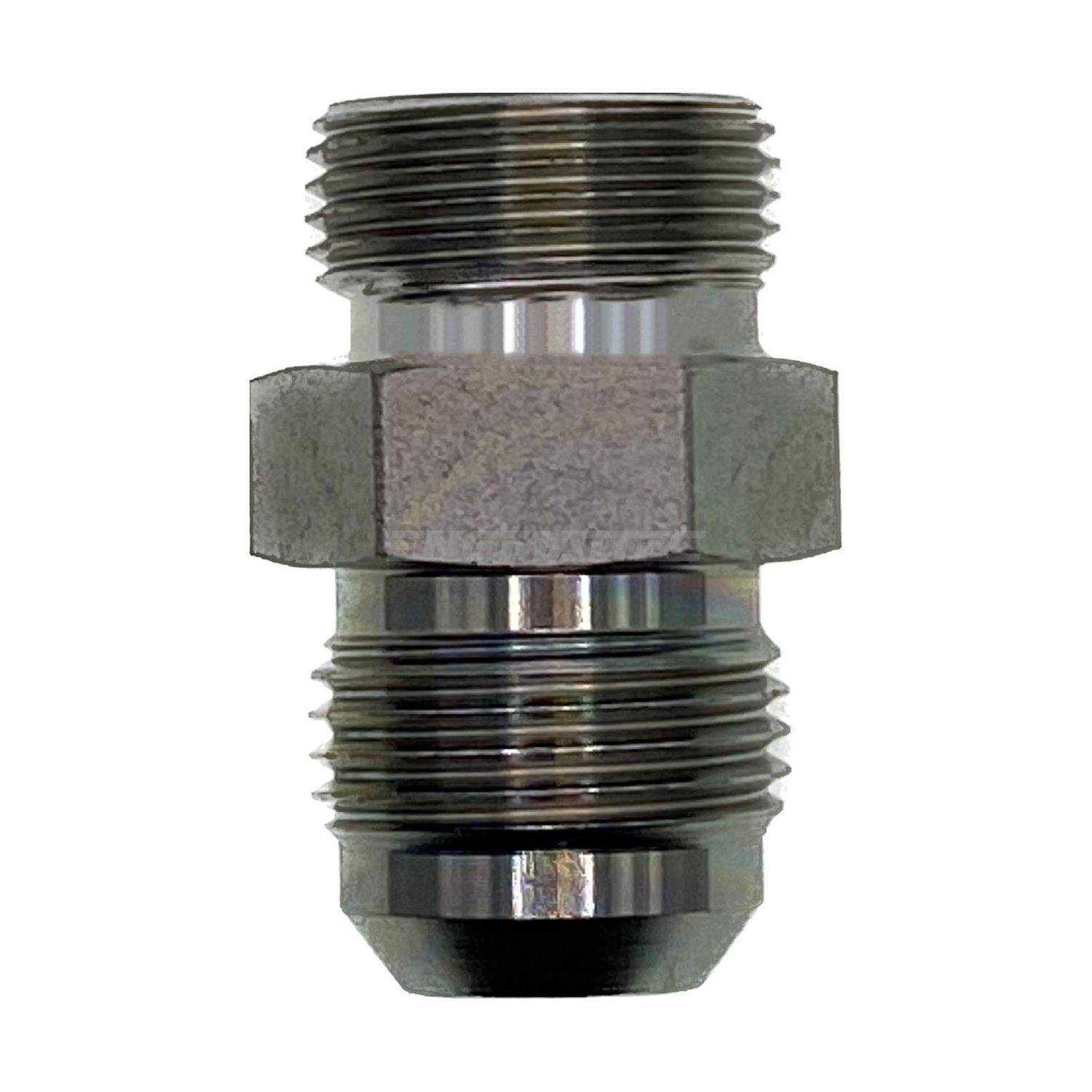

JIC 37° Male x Metric Light (L) Male Straight Adaptor

JIC 37° one end, metric light series 24° cone the other. The usual way a JIC hose gets onto the return, drain and pilot lines of European-built machinery without changing the tube work.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.
• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light series. It seals on the 24° cone, normally with an O-ring captured in the cone.

How to Choose

• Light (L) series is the lower pressure metric range. Check the circuit before you use it on a pump outlet.
• The 24° metric cone and the 37° JIC cone are close enough to confuse at a glance. Go by which end is metric, not by eye.
• Light and heavy series share some thread sizes. An L body in an S port will start and go nowhere good.

Technicians Advice

Metric 24° joints are usually assembled with an O-ring sitting in the cone. If the old fitting had one and the new one does not, you have the wrong part, not a missing seal you can add later. Check the cone before it goes near the machine.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.
• Metric Light (L) Male – European-built machinery – Liebherr, Wacker Neuson, Atlas, Sennebogen, Manitou – and imported tube assemblies. Light series suits return, drain and pilot lines.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.
• Metric Light (L) Male – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker call this range EO and EO-2, historically branded Ermeto. Also called bite type.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H1	Material	Finish
JIM-MLM-0712	7/16" JIC	M12x1.5 (6L)	31mm	14mm	Mild steel	Plated finish
JIM-MLM-0714	7/16" JIC	M14x1.5 (8L)	30mm	14mm	Mild steel	Plated finish
JIM-MLM-0716	7/16" JIC	M16x1.5 (10L)	32mm	22mm	Mild steel	Plated finish
JIM-MLM-0912	9/16" JIC	M12x1.5 (6L)	31mm	17mm	Mild steel	Plated finish
JIM-MLM-0914	9/16" JIC	M14x1.5 (8L)	31mm	15.88mm	Mild steel	Plated finish
JIM-MLM-0916	9/16" JIC	M16x1.5 (10L)	31mm	17mm	Mild steel	Plated finish
JIM-MLM-0922	9/16" JIC	M22x1.5 (15L)	36mm	27mm	Mild steel	Plated finish
JIM-MLM-1216	3/4" JIC	M16x1.5 (10L)	35mm	22mm	Mild steel	Plated finish
JIM-MLM-1218	3/4" JIC	M18x1.5 (12L)	39mm	24mm	Mild steel	Plated finish
JIM-MLM-1226	3/4" JIC	M26x1.5 (18L)	41mm	32mm	Mild steel	Plated finish
JIM-MLM-1422	7/8" JIC	M22x1.5 (15L)	41mm	24mm	Mild steel	Plated finish
JIM-MLM-1722	1.1/16" JIC	M22x1.5 (15L)	43mm	30mm	Mild steel	Plated finish
JIM-MLM-1726	1.1/16" JIC	M26x1.5 (18L)	48mm	32mm	Mild steel	Plated finish
JIM-MLM-1730	1.1/16" JIC	M30x2 (22L)	47mm	32mm	Mild steel	Plated finish
JIM-MLM-2136	1.5/16" JIC	M36x2 (28L)	48mm	41mm	Mild steel	Plated finish
JIM-MLM-2645	1.5/8" JIC	M45x2 (35L)	53mm	46mm	Mild steel	Plated finish
JIM-MLM-0918	9/16" JIC	M18x1.5 (12L)	32mm	19mm	Mild steel	Plated finish
JIM-MLM-1222	3/4" JIC	M22x1.5 (15L)	38mm	24mm	Mild steel	Plated finish

Key: L overall length, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
