JIC 37° Male x Metric Light (L) Swivel Female Straight Adaptor

JIC 37° male one end, light series metric swivel female the other. Lands a European L series tube or hose end onto a JIC line without twisting the run.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.
• Metric Light (L) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, light series. It pulls onto the mating 24° cone and swivels so the tube is not twisted.

How to Choose

• The metric swivel pulls onto the mating 24° cone and turns, so the tube is not wound up during assembly.
• Light (L) series is the lower rated metric range. Check the circuit before using it on a pump outlet.
• Neither end takes sealant. Both work on a cone.

Technicians Advice

Look into the mating cone with a torch before you fit. Plain 24° and O-ring cones both exist on the same machine and they do not interchange, and sorting that at the bench is far cheaper than finding out under load.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.
• Metric Light (L) Swivel Female – European tube and hose assemblies on the lower-pressure side.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.
• Metric Light (L) Swivel Female – DIN 2353 / ISO 8434-1 24° cone, light (L) series. Parker EO / EO-2.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	F1	F2	L	S	S1	C	D1	D2	Material	Finish
JIM-MLF-0914	M14x1.5 (8L)	9/16" JIC	M14x1.5 (8L)	9/16" JIC	36mm	17mm	17mm	14.12mm	4mm	7.54mm	Mild steel	Plated finish

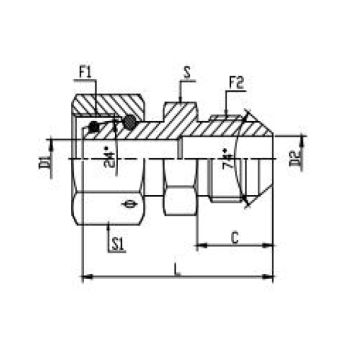

Key: L overall length, S hex across flats, S1 hex across flats 2, C across corners, D1 bore 1, D2 bore 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
