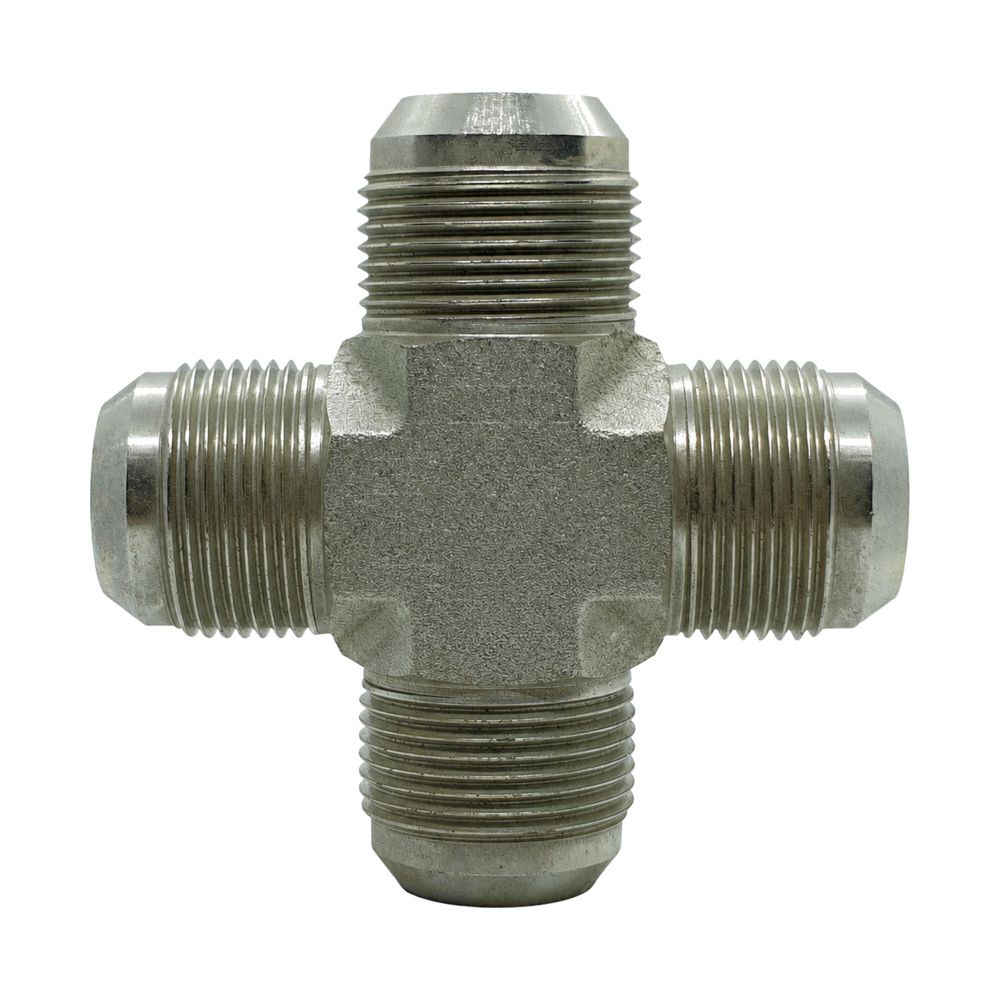

JIC 37° Male Cross

Four JIC 37° male ports at 90° to each other. The all-JIC cross for splitting a line four ways.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Exploring Hydraulic Adaptors Part 1: Difference Between Branch Tee & Run Tee, Elbows Short and Long

Thread Standards

• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.

How to Choose

• All four ports seal metal to metal on the 37° cone. No tape, no sealant.
• Four cone faces to keep clean. Wipe every one before assembly.
• Watch for 45° flare on the same machine.

Technicians Advice

Assemble and pressure test on the bench. With four hoses on a cross you cannot get a spanner squarely onto any of them once it is mounted, so anything you have not got right beforehand stays wrong.

Where You’ll Find It

• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.

Cross-Reference

• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	S1	Material	Finish
JIM-JIM-JIM-JIM-07070707	7/16" JIC	11.1mm	Mild steel	Plated finish
JIM-JIM-JIM-JIM-09090909	9/16" JIC	14.3mm	Mild steel	Plated finish
JIM-JIM-JIM-JIM-12121212	3/4" JIC	19.1mm	Mild steel	Plated finish
JIM-JIM-JIM-JIM-14141414	7/8" JIC	22.2mm	Mild steel	Plated finish
JIM-JIM-JIM-JIM-17171717	1.1/16" JIC	27.0mm	Mild steel	Plated finish
JIM-JIM-JIM-JIM-21212121	1.5/16" JIC	33.3mm	Mild steel	Plated finish

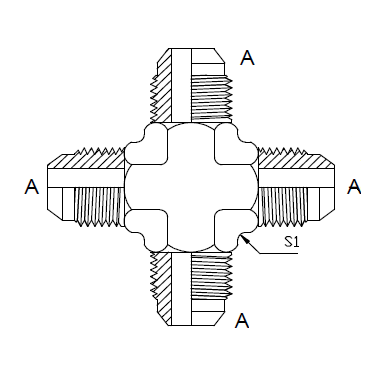

Key: S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
