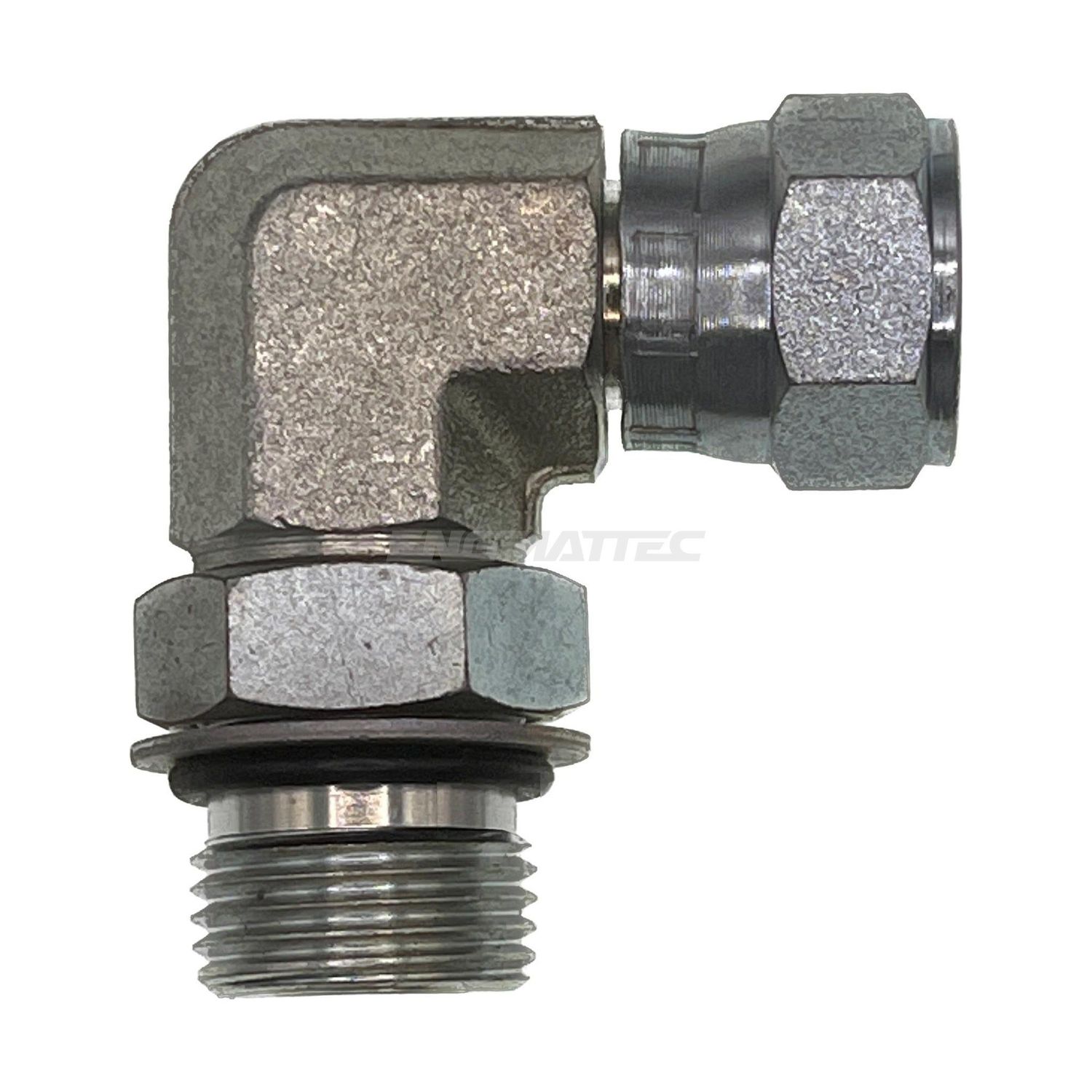

JIC Female x UNO Male 90° Compact
SKU JIF-UNM-90C-0707
AU$9.30
On Sale
was AU$17.70 Save 47%
Size
Please choose
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
JIC Female x UNO Male 90° Compact
Product Details
Brand: Engmattec
Weight: 0.10 kg
JIC Female x UNO Male 90° Compact
90° elbows are the tight-space workhorse – they turn a connection hard against a wall, ram or chassis rail where a straight fitting plus bent hose simply will not fit.
Ways to buy:
- Off the shelf – pick your size from the dropdown below and it’s on its way.
- Need a size or combination you can’t see? Call us – if it exists, we can get it.
Pick your size
| Size / configuration | SKU | Price inc GST |
| Adaptor - (07) 7/16" JIC Female x (07) 7/16" UNO Male - 90° Compact | JIF-UNM-90C-0707 | $9.30 |
| Adaptor - (09) 9/16" JIC Female x (09) 9/16" UNO Male - 90° Compact | JIF-UNM-90C-0909 | $9.80 |
| Adaptor - (12) 3/4" JIC Female x (12) 3/4" UNO Male - 90° Compact | JIF-UNM-90C-1212 | |
| Adaptor - (12) 3/4" JIC Female x (12) 3/4" UNO Male - 90° Compact | JIF-UNM-90C-1212 | 2.40 |
| Adaptor - (12) 3/4" JIC Female x (14) 7/8" UNO Male - 90° Compact | JIF-UNM-90C-1214 | |
| Adaptor - (12) 3/4" JIC Female x (14) 7/8" UNO Male - 90° Compact | JIF-UNM-90C-1214 | 4.60 |
| Adaptor - (14) 7/8" JIC Female x (14) 7/8" UNO Male - 90° Compact | JIF-UNM-90C-1414 | |
| Adaptor - (14) 7/8" JIC Female x (14) 7/8" UNO Male - 90° Compact | JIF-UNM-90C-1414 | 5.70 |
| Adaptor - (17) 1 1/16" JIC Female x (17) 1 1/16" UNO Male - 90° Compact | JIF-UNM-90C-1717 | |
| Adaptor - (17) 1 1/16" JIC Female x (17) 1 1/16" UNO Male - 90° Compact | JIF-UNM-90C-1717 | 9.20 |
| Adaptor - (21) 1 5/16" JIC Female x (21) 1 5/16" UNO Male - 90° Compact | JIF-UNM-90C-2121 | $38.20 |
What is in the box
One fitting as per your selection.
Specifications
| Parameter | Value |
| Brand | Engmattec |
| Material | Carbon steel |
| Thread end 1 | JIC Female |
| Thread end 2 | UNO Male |
| Configuration | 90° |
How to choose
- Match both thread ends to what you are joining; the elbow just turns the corner.
- Compact (C) elbows suit the tightest spots; long-sweep versions ease flow where space allows.
- Minimum hose bend radius still applies after the elbow – the elbow buys you direction, not slack.
- Not sure? Call us and we will confirm the size.
Technicians Advice
Aim the elbow before final torque – on bonded-washer ends the last quarter turn sets both seal and direction, so start the washer with the elbow pointing about 30° short of where you want it. Never spring the hose to meet the fitting; if the hose loads the elbow sideways it will loosen and weep. Elbows are the biggest single pressure-drop item in a fitting chain – on high-flow lines use two 45s or a swept path instead of stacking 90s.
Buying in bulk or fitting out a fleet? Call us for trade pricing.
Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
Express shipping Australia-wide. We dispatch daily to New South Wales, Victoria, Queensland, Western Australia, South Australia, Tasmania, the Australian Capital Territory and the Northern Territory – Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin, plus regional and remote sites.
📐Dimensions & thread sizes – every size in this range
← Swipe the table sideways to see every measurement →
| Part code | A | B | H | H2 | S1 | Material | Finish |
|---|---|---|---|---|---|---|---|
| JIF-UNM-90C-0707 | 7/16" UNO | 7/16" JIC | 14.3mm | 14.3mm | 11.1mm | Mild steel | Plated finish |
| JIF-UNM-90C-0909 | 9/16" UNO | 9/16" JIC | 17.5mm | 17.5mm | 14.3mm | Mild steel | Plated finish |
| JIF-UNM-90C-1212 | 3/4" UNO | 3/4" JIC | 22.2mm | 22.2mm | 19.1mm | Mild steel | Plated finish |
| JIF-UNM-90C-1214 | 3/4" UNO | 7/8" JIC | 25.4mm | 22.2mm | 22.2mm | Mild steel | Plated finish |
| JIF-UNM-90C-1414 | 7/8" UNO | 7/8" JIC | 25.4mm | 25.4mm | 22.2mm | Mild steel | Plated finish |
| JIF-UNM-90C-1717 | 1.1/16" UNO | 1.1/16" JIC | 31.8mm | 31.8mm | 27.0mm | Mild steel | Plated finish |
| JIF-UNM-90C-2121 | 1.5/16" UNO | 1.5/16" JIC | 38.1mm | 38.1mm | 33.3mm | Mild steel | Plated finish |

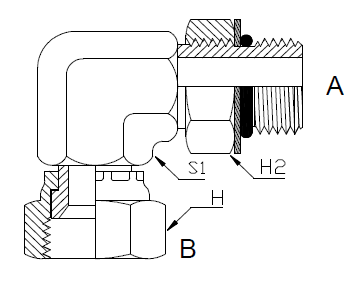

Key: H centre to face, H2 centre to face 3, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
