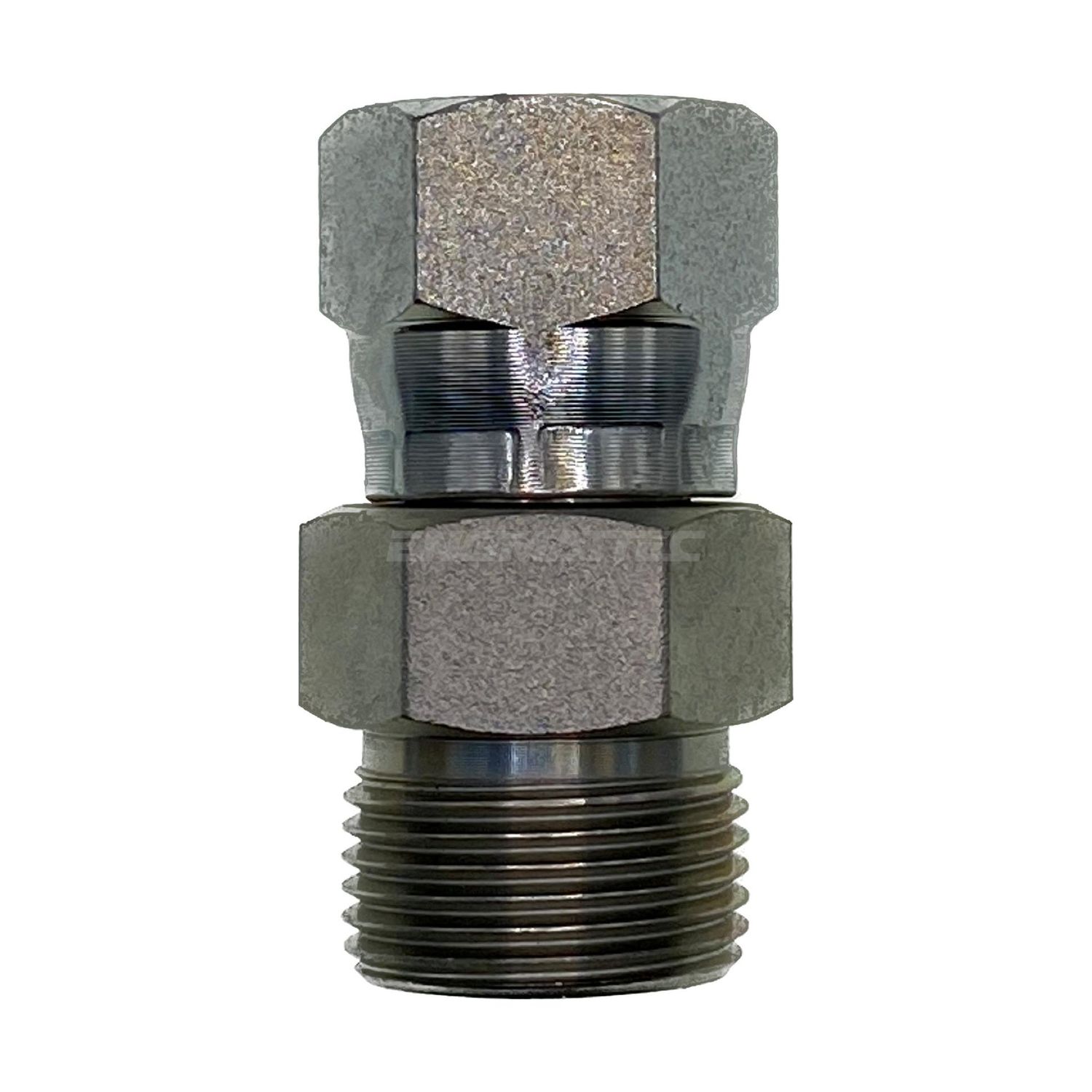

JIC 37° Swivel Female x ORFS Male Straight Adaptor

JIC swivel female one end, O-ring face seal male the other. The changeover part for machines running half JIC and half ORFS, which covers most mixed fleets.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Swivel Female – SAE J514 37° flare. It seals on the 37° cone seat and swivels, so the hose is never wound up during assembly.
• ORFS Male – SAE J1453 O-ring face seal. It seals on an O-ring sitting in the flat face groove, never on the thread.

How to Choose

• Neither end wants thread sealant. The JIC seals on its cone, the ORFS on the O-ring in the flat face.
• ORFS thread size does not tell you the line size. A 13/16-16 face seal end runs a 1/2" line.
• ORFS is the better choice where a machine shakes hard. If you have the option on the port side, put the face seal where the vibration is.

Technicians Advice

Check the ORFS face groove and ring before assembly. When you swap a machine from JIC to ORFS, do the whole circuit rather than a fitting at a time, because a drawer with both standards and no labels is how a 37° cone ends up pulled into a flat face.

Where You’ll Find It

• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.
• ORFS Male – High-pressure, high-vibration circuits on late-model excavators, drill rigs, crushers and forestry gear.

Cross-Reference

• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.
• ORFS Male – SAE J1453 / ISO 8434-3 O-ring face seal. Parker call this series Seal-Lok. Also written ORFS or flat face.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	H1	Material	Finish
JIF-ORM-0709	7/16" ORFS	9/16" JIC	27mm	14.3mm	15.9mm	Mild steel	Plated finish
JIF-ORM-0911	11/16" ORFS	9/16" JIC	31mm	17.5mm	19.1mm	Mild steel	Plated finish
JIF-ORM-1213	13/16" ORFS	3/4" JIC	35mm	22.2mm	22.2mm	Mild steel	Plated finish
JIF-ORM-1416	1" ORFS	7/8" JIC	40mm	25.4mm	27.0mm	Mild steel	Plated finish
JIF-ORM-1719	1.3/16" ORFS	1.1/16" JIC	44mm	31.8mm	31.8mm	Mild steel	Plated finish
JIF-ORM-2123	1.7/16" ORFS	1.5/16" JIC	47mm	38.1mm	38.1mm	Mild steel	Plated finish

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
