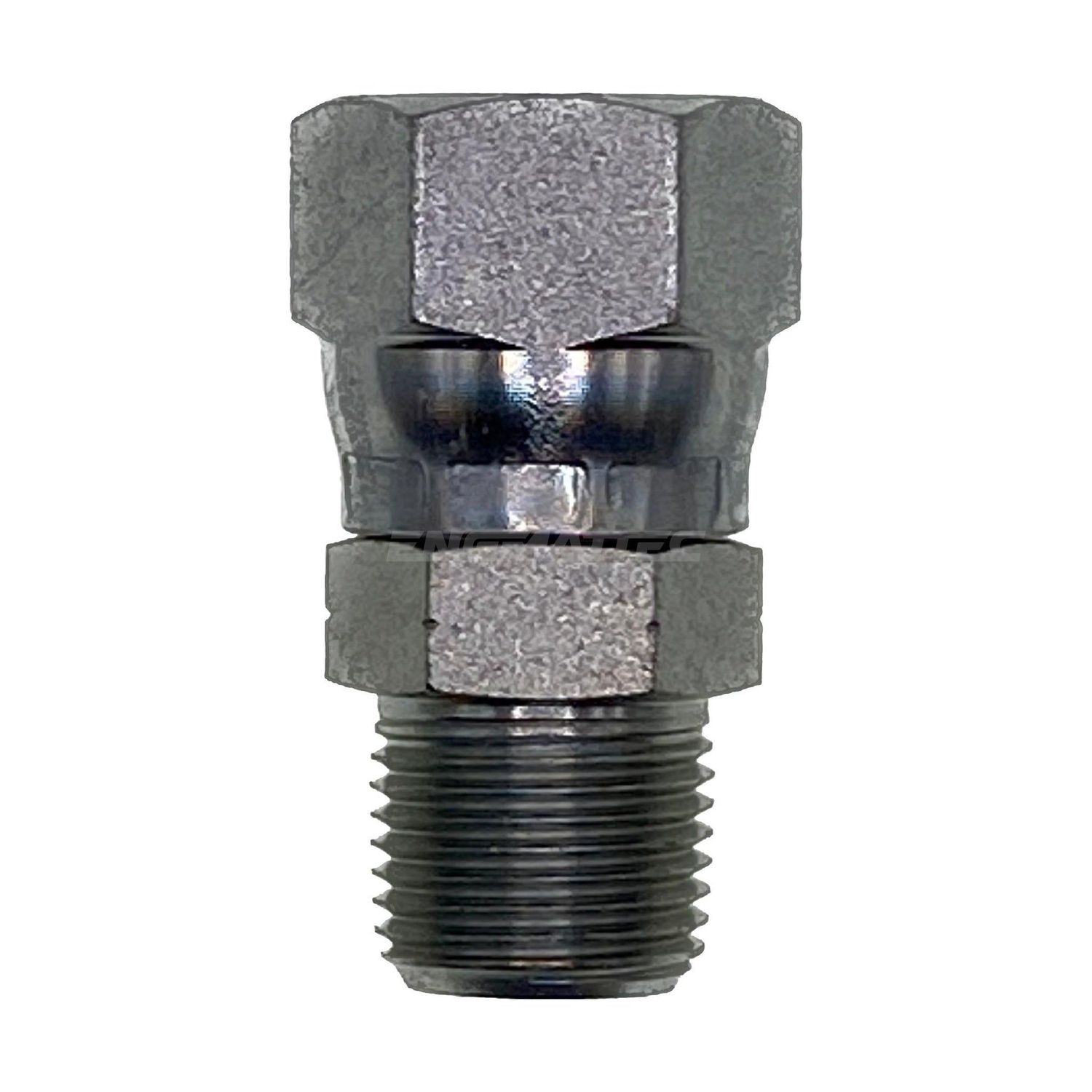

JIC 37° Swivel Female x NPT Tapered Male Straight Adaptor

JIC 37° swivel female one end, NPT tapered male the other. The everyday part for landing a JIC hose into the NPT ports on American pumps, filter heads, gauges and cylinder blocks.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Swivel Female – SAE J514 37° flare. It seals on the 37° cone seat and swivels, so the hose is never wound up during assembly.
• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. It seals on thread interference, so tape or sealant is a must.

How to Choose

• The JIC female seals dry on its 37° cone and swivels. The NPT male seals on the thread and needs sealant.
• NPT is 60° and BSPT is 55°. They will start into each other and chew out, so identify the port before you fit.
• Keep sealant off the cone. Do the NPT end first and wipe your hands.

Technicians Advice

Most NPT weeps come from over-tightening, not under. Hand tight then two or three turns on the spanner and stop. Chasing a weep with more torque splits a cast filter head and turns a fitting job into a housing job.

Where You’ll Find It

• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.
• NPT Tapered Male – American-built gearboxes, pumps, compressors and older industrial pipework.

Cross-Reference

• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.
• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. The dryseal variant is written NPTF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	H1	Material	Finish
JIF-NTM-0702	1/8" NPT	7/16" JIC	25mm	14.3mm	12.7mm	Mild steel	Plated finish
JIF-NTM-0704	1/4" NPT	7/16" JIC	31mm	14.3mm	14.3mm	Mild steel	Plated finish
JIF-NTM-0706	3/8" NPT	7/16" JIC	31mm	17.5mm	19.0mm	Mild steel	Plated finish
JIF-NTM-0904	1/4" NPT	9/16" JIC	33mm	17.5mm	14.3mm	Mild steel	Plated finish
JIF-NTM-0906	3/8" NPT	9/16" JIC	32mm	17.5mm	19.0mm	Mild steel	Plated finish
JIF-NTM-1206	3/8" NPT	3/4" JIC	33mm	22.2mm	22.2mm	Mild steel	Plated finish

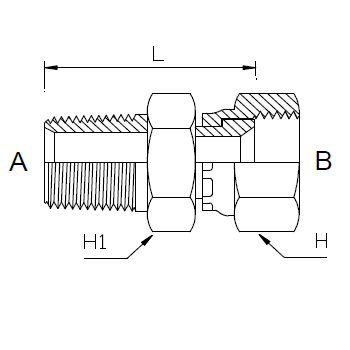

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
