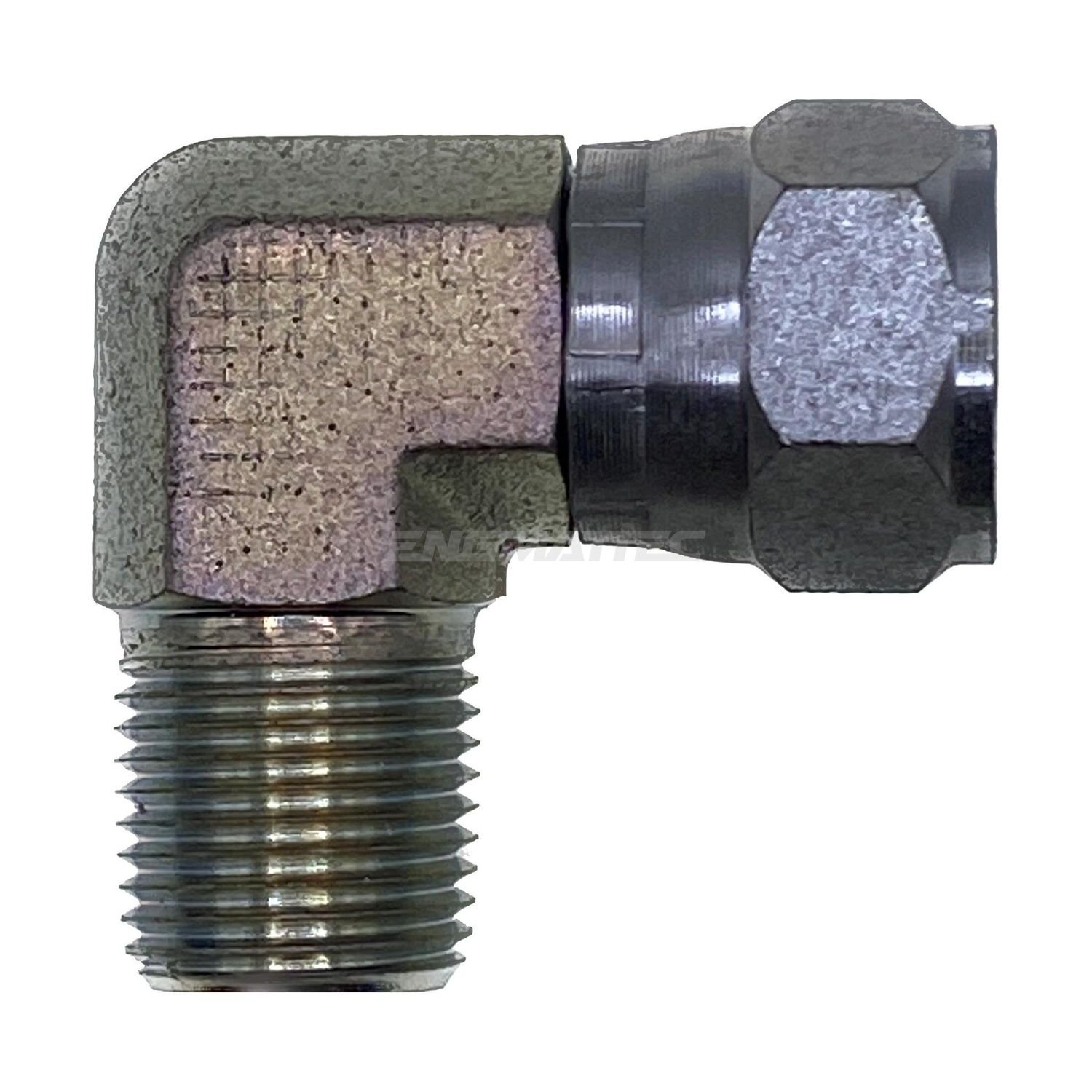

JIC 37° Swivel Female x NPT Tapered Male 90° Compact Elbow

NPT into the port, JIC swivel out to the hose, turned 90°. The everyday crossover on American pumps, cylinders and gearboxes where the hose has to leave the port hard over.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Swivel Female – SAE J514 37° flare. It seals on the 37° cone seat and swivels, so the hose is never wound up during assembly.
• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. It seals on thread interference, so tape or sealant is a must.

How to Choose

• The NPT end takes tape or sealant. The JIC swivel must stay dry.
• NPT and BSPT are both tapered but different forms - 60° against 55°. Forcing one into the other wrecks both.
• NPT sizes are nominal. A 1/4 inch NPT thread measures about 13.7mm across the crests.

Technicians Advice

Start the tape two threads back and wrap the way the fitting tightens, or the first turn peels it into the bore and it ends up in a valve spool. Two or three wraps is plenty - packing the thread splits female castings.

Where You’ll Find It

• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.
• NPT Tapered Male – American-built gearboxes, pumps, compressors and older industrial pipework.

Cross-Reference

• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.
• NPT Tapered Male – ANSI/ASME B1.20.1 tapered pipe thread. The dryseal variant is written NPTF.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	S1	Material	Finish
JIF-NTM-90C-1208	1/2" NPT	3/4" JIC	22.2mm	22.2mm	Mild steel	Plated finish
NTM-JIF-90C-0609	3/8" NPT	9/16" JIC	17.5mm	19.1mm	Mild steel	Plated finish
NTM-JIF-90C-0814	1/2" NPT	7/8" JIC	25.4mm	22.2mm	Mild steel	Plated finish
NTM-JIF-90C-1217	3/4" NPT	1.1/16" JIC	31.8mm	27.0mm	Mild steel	Plated finish

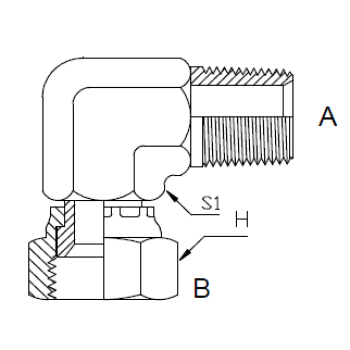

Key: H centre to face, S1 hex across flats 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 Straight – same threads
