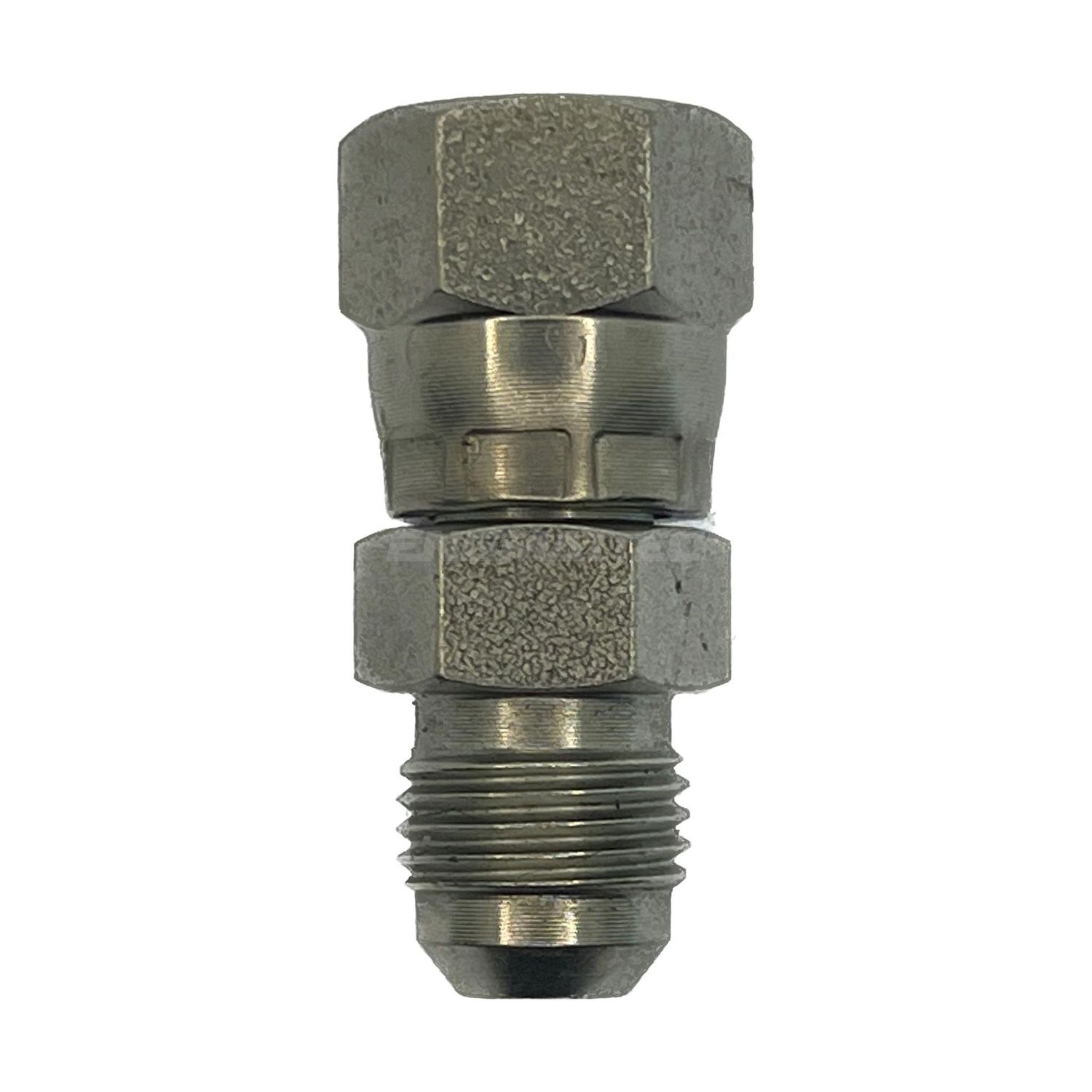

JIC 37° Swivel Female x JIC 37° Male Straight Adaptor

JIC swivel female one end, JIC male the other. The plain JIC extension and size-change piece, used to lengthen a run or step between JIC sizes without remaking the hose.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Swivel Female – SAE J514 37° flare. It seals on the 37° cone seat and swivels, so the hose is never wound up during assembly.
• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.

How to Choose

• Both ends work on the 37° cone and seal metal to metal. No tape, no sealant, no O-ring.
• Equal and reducing sizes are stocked, so you can step down through the adaptor rather than stacking parts.
• The swivel end turns as you tighten so an assembled hose is not wound up.

Technicians Advice

Both cones need to be clean and unmarked. A JIC pulled up with grit on the seat leaves a witness ring, and once that ring is there the joint seeps every time the machine warms up. Wipe both faces with a clean rag first.

Where You’ll Find It

• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.
• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.

Cross-Reference

• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.
• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	H1	Material	Finish
JIF-JIM-0707	7/16" JIC	7/16" JIC	30mm	14.3mm	12.7mm	Mild steel	Plated finish
JIF-JIM-0709	9/16" JIC	7/16" JIC	29mm	14.3mm	15.9mm	Mild steel	Plated finish
JIF-JIM-0808	1/2" JIC	1/2" JIC	29mm	15.9mm	14.3mm	Mild steel	Plated finish
JIF-JIM-0907	7/16" JIC	9/16" JIC	30mm	17.5mm	14.3mm	Mild steel	Plated finish
JIF-JIM-0908	1/2" JIC	9/16" JIC	31mm	17.5mm	15.9mm	Mild steel	Plated finish
JIF-JIM-0909	9/16" JIC	9/16" JIC	32mm	17.5mm	15.9mm	Mild steel	Plated finish
JIF-JIM-0912	3/4" JIC	9/16" JIC	34.7mm	17.5mm	23.8mm	Mild steel	Plated finish
JIF-JIM-0914	7/8" JIC	9/16" JIC	39.5mm	17.5mm	23.8mm	Mild steel	Plated finish
JIF-JIM-1207	7/16" JIC	3/4" JIC	33.5mm	22.2mm	20.6mm	Mild steel	Plated finish
JIF-JIM-1209	9/16" JIC	3/4" JIC	33.2mm	23.8mm	20.6mm	Mild steel	Plated finish
JIF-JIM-1212	3/4" JIC	3/4" JIC	36mm	22.2mm	20.6mm	Mild steel	Plated finish
JIF-JIM-1214	7/8" JIC	3/4" JIC	41.5mm	22.2mm	23.8mm	Mild steel	Plated finish
JIF-JIM-1217	1.1/16" JIC	3/4" JIC	44mm	22.2mm	28.6mm	Mild steel	Plated finish
JIF-JIM-1409	9/16" JIC	7/8" JIC	37.2mm	25.4mm	22.2mm	Mild steel	Plated finish
JIF-JIM-1412	3/4" JIC	7/8" JIC	39.8mm	25.4mm	23.8mm	Mild steel	Plated finish
JIF-JIM-1414	7/8" JIC	7/8" JIC	41mm	25.4mm	23.8mm	Mild steel	Plated finish
JIF-JIM-1417	1.1/16" JIC	7/8" JIC	45mm	25.4mm	28.6mm	Mild steel	Plated finish
JIF-JIM-1712	3/4" JIC	1.1/16" JIC	40mm	31.8mm	25.4mm	Mild steel	Plated finish
JIF-JIM-1714	7/8" JIC	1.1/16" JIC	43mm	31.8mm	25.4mm	Mild steel	Plated finish
JIF-JIM-1717	1.1/16" JIC	1.1/16" JIC	46mm	31.8mm	28.6mm	Mild steel	Plated finish
JIF-JIM-1721	1.5/16" JIC	1.1/16" JIC	47.5mm	31.8mm	34.9mm	Mild steel	Plated finish
JIF-JIM-2112	3/4" JIC	1.5/16" JIC	42.2mm	38.1mm	34.9mm	Mild steel	Plated finish
JIF-JIM-2117	1.1/16" JIC	1.5/16" JIC	47.5mm	38.1mm	34.9mm	Mild steel	Plated finish
JIF-JIM-2121	1.5/16" JIC	1.5/16" JIC	49mm	38.1mm	34.9mm	Mild steel	Plated finish
JIF-JIM-2126	1.5/8" JIC	1.5/16" JIC	51.8mm	38.1mm	42.9mm	Mild steel	Plated finish
JIF-JIM-2621	1.5/16" JIC	1.5/8" JIC	52mm	50.8mm	42.9mm	Mild steel	Plated finish
JIF-JIM-2626	1.5/8" JIC	1.5/8" JIC	56mm	50.8mm	42.9mm	Mild steel	Plated finish
JIF-JIM-2630	1.7/8" JIC	1.5/8" JIC	57mm	57.2mm	50.8mm	Mild steel	Plated finish
JIF-JIM-3026	1.5/8" JIC	1.7/8" JIC	57mm	57.2mm	50.8mm	Mild steel	Plated finish
JIF-JIM-3030	1.7/8" JIC	1.7/8" JIC	66mm	57.2mm	50.8mm	Mild steel	Plated finish
JIF-JIM-4040	2.1/2" JIC	2.1/2" JIC	71mm	73.0mm	66.7mm	Mild steel	Plated finish

Key: L overall length, H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
