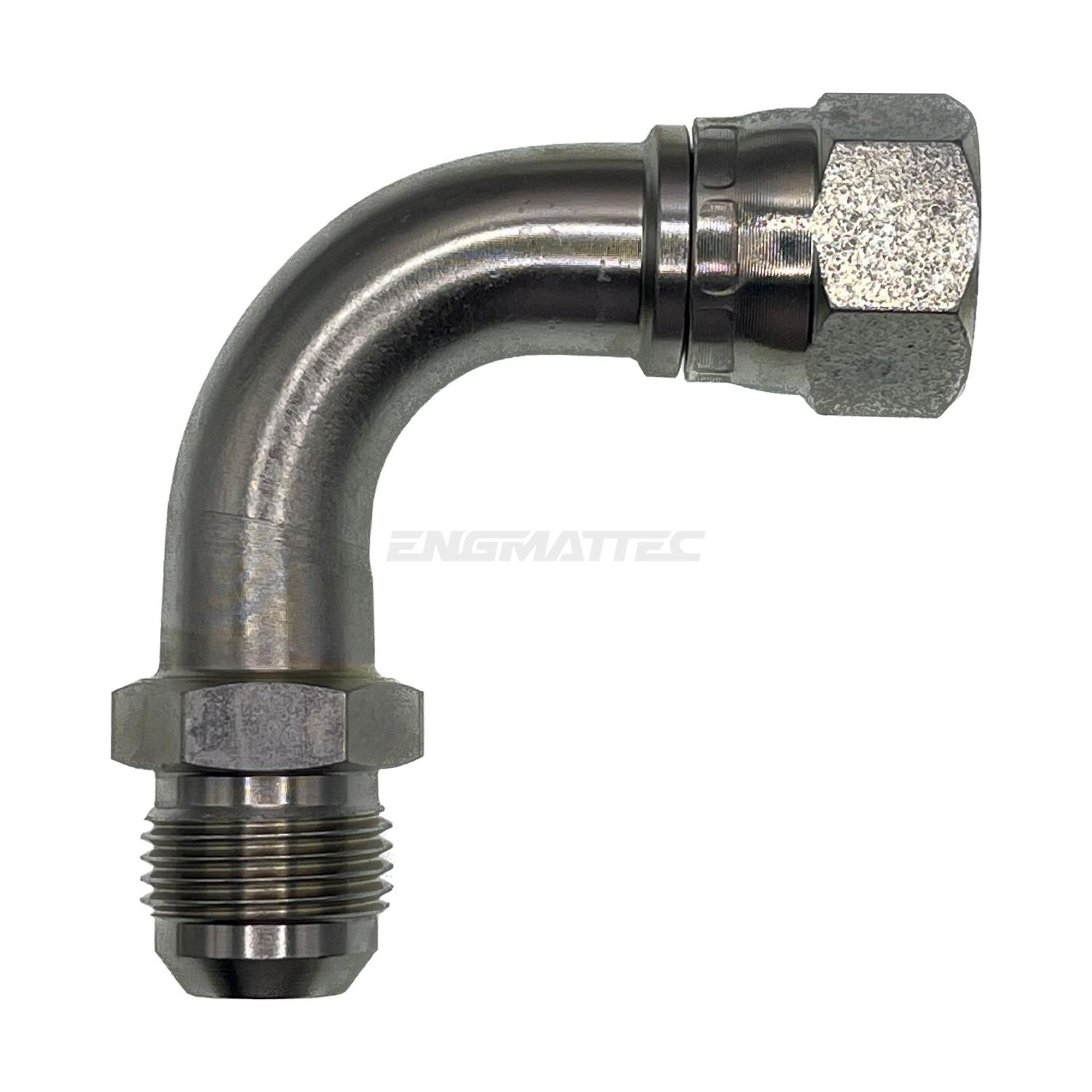

JIC 37° Swivel Female x JIC 37° Male 90° Swept Elbow

A long-radius JIC-to-JIC 90°. The swivel female takes the hose end without winding it up, the male goes into the port, and the swept body gives the oil a gentler turn than a compact elbow does.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Swivel Female – SAE J514 37° flare. It seals on the 37° cone seat and swivels, so the hose is never wound up during assembly.
• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.

How to Choose

• Use swept where flow rate is high or the line is long, compact where space is tight. Both seal the same way - the difference is radius and overall length.
• Sizes do not need to match. Stepping down through the elbow saves adding a reducer.
• Never tape a JIC thread. It seals on the 37° cone and tape only holds the cone off its seat.

Technicians Advice

Bring the swivel nut up until the cones meet, then a defined amount further - about a sixth of a turn on small sizes, a quarter on large. If it still weeps the seat is damaged rather than loose. Pull it apart and look, because more torque at that point just flattens the cone.

Where You’ll Find It

• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.
• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.

Cross-Reference

• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.
• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	H	H1	Material	Finish
JIF-JIM-90S-0707	7/16" JIC	7/16" JIC	14.3mm	12mm	Mild steel	Plated finish
JIF-JIM-90S-0909	9/16" JIC	9/16" JIC	17.5mm	17mm	Mild steel	Plated finish
JIF-JIM-90S-1212	3/4" JIC	3/4" JIC	22.2mm	22.2mm	Mild steel	Plated finish
JIF-JIM-90S-1414	7/8" JIC	7/8" JIC	25.4mm	24mm	Mild steel	Plated finish
JIF-JIM-90S-1717	1.1/16" JIC	1.1/16" JIC	31.8mm	30mm	Mild steel	Plated finish
JIF-JIM-90S-2121	1.5/16" JIC	1.5/16" JIC	38mm	36mm	Mild steel	Plated finish
JIF-JIM-90S-2626	1.5/8" JIC	1.5/8" JIC	50mm	42mm	Mild steel	Plated finish
JIM-JIF-90S-0707E	7/16" JIC	7/16" JIC	14.3mm	12mm	Mild steel	Plated finish
JIM-JIF-90S-1414E	7/8" JIC	7/8" JIC	25.4mm	24mm	Mild steel	Plated finish
JIM-JIF-90S-1717E	1.1/16" JIC	1.1/16" JIC	31.8mm	30mm	Mild steel	Plated finish
JIM-JIF-90S-2121E	1.5/16" JIC	1.5/16" JIC	38mm	36mm	Mild steel	Plated finish
JIM-JIF-90S-2626E	1.5/8" JIC	1.5/8" JIC	50mm	42mm	Mild steel	Plated finish

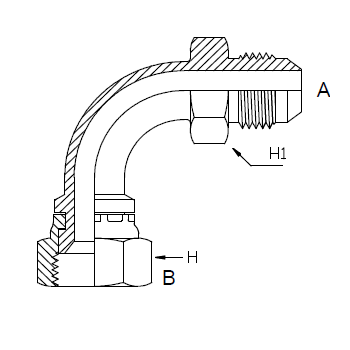

Key: H centre to face, H1 centre to face 2. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
