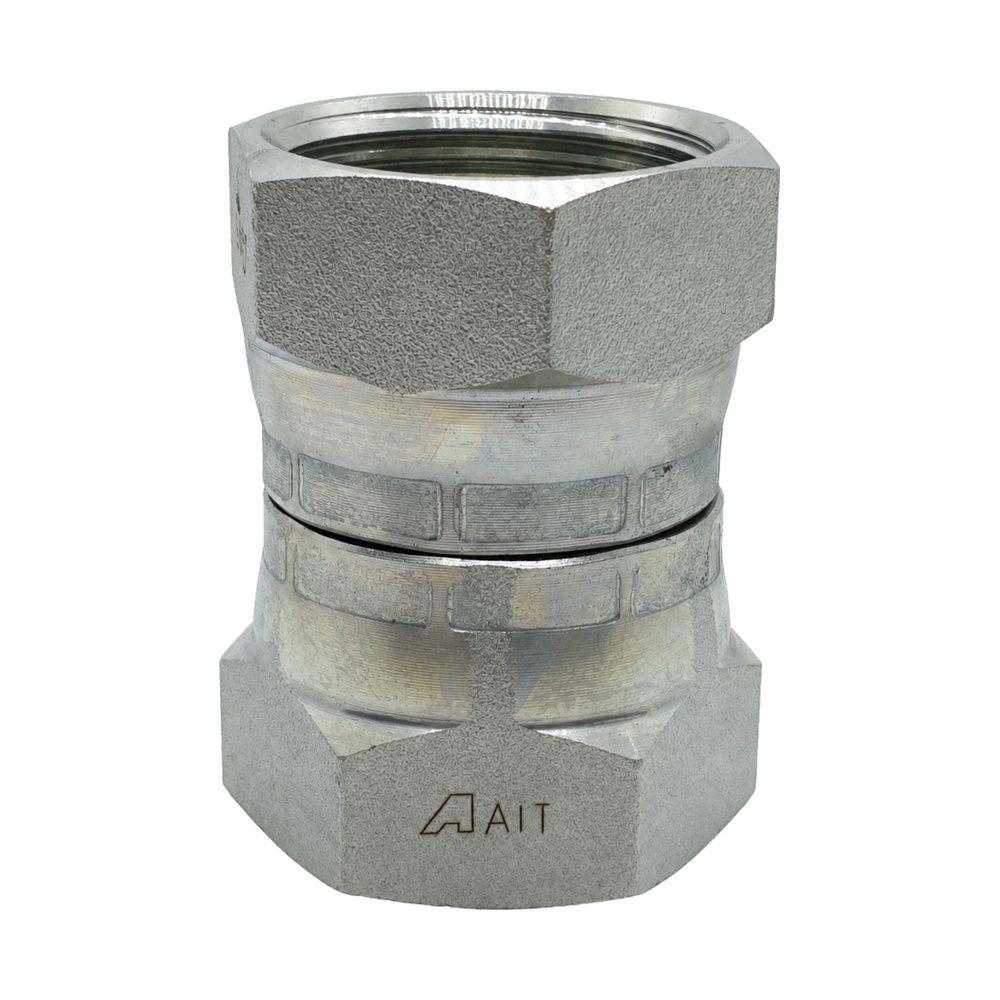

JIC 37° Swivel Female x JIC 37° Swivel Female Straight Socket

JIC swivel female both ends. Joins two JIC male fittings or two male-ended hose tails back to back, with both ends free to turn during assembly.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to assemble Hydraulic Hose Fittings Introduction Identification and Guide on JIC thread Type

Thread Standards

• JIC 37° Swivel Female – SAE J514 37° flare. It seals on the 37° cone seat and swivels, so the hose is never wound up during assembly.

How to Choose

• Both ends seal on the 37° cone and both swivel, so neither hose is wound up as you tighten.
• No tape and no sealant on either end. Anything on the thread only masks a poor seat.
• Equal and reducing sizes are stocked, so you can step between JIC sizes in one part.

Technicians Advice

Two cone joints means two faces to wipe. A JIC pulled up with grit on the seat leaves a witness ring, and once it is there the joint seeps every time the oil warms and thins. Clean rag on both cones before assembly.

Where You’ll Find It

• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.

Cross-Reference

• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	L	H	Material	Finish
JIF-JIF-0707	7/16" JIC	7/16" JIC	18mm	14.3mm	Mild steel	Plated finish
JIF-JIF-0909	9/16" JIC	9/16" JIC	21mm	17.5mm	Mild steel	Plated finish
JIF-JIF-1212	3/4" JIC	3/4" JIC	24mm	22.2mm	Mild steel	Plated finish
JIF-JIF-1414	7/8" JIC	7/8" JIC	25mm	25.4mm	Mild steel	Plated finish
JIF-JIF-1717	1.1/16" JIC	1.1/16" JIC	27mm	31.8mm	Mild steel	Plated finish
JIF-JIF-2121	1.5/16" JIC	1.5/16" JIC	30mm	38.1mm	Mild steel	Plated finish
JIF-JIF-2626	1.5/8" JIC	1.5/8" JIC	33mm	50.8mm	Mild steel	Plated finish
JIF-JIF-3030	1.7/8" JIC	1.7/8" JIC	36mm	57.2mm	Mild steel	Plated finish

Key: L overall length, H centre to face. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
