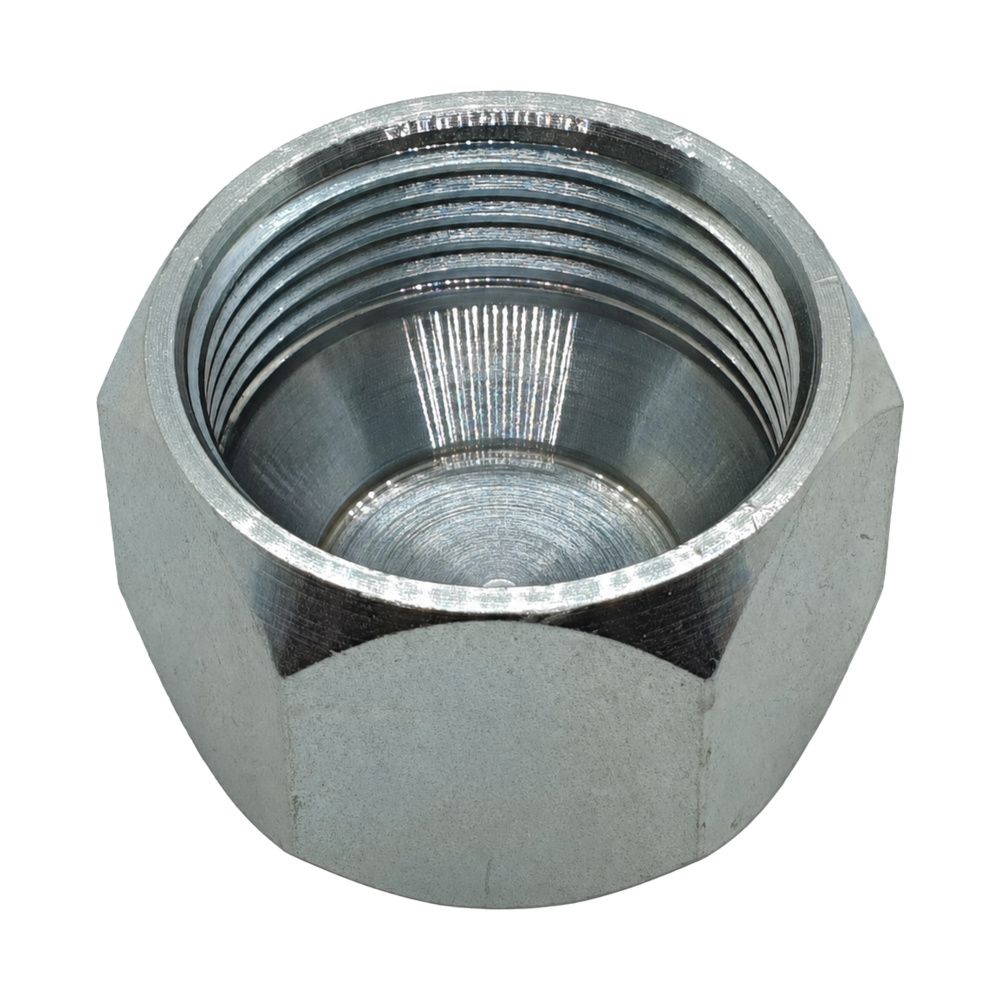

JIC 37° Swivel Female Cap

A JIC swivel female cap for covering an exposed JIC male end. The most-used cap in any repair kit.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• JIC 37° Swivel Female – SAE J514 37° flare. It seals on the 37° cone seat and swivels, so the hose is never wound up during assembly.

How to Choose

• A cap is female and covers a male end. A plug is male and blocks a female port. Check which the open connection is before you order.
• Seals metal to metal on the 37° cone. No tape, no sealant.
• Watch for 45° flare on the same machine. A 45° male in a 37° cap will not seat properly.

Technicians Advice

Keep a box of these and the matching plugs on the truck. Capping and plugging as you break a line is the cheapest contamination control there is, and it costs less than one filter change.

Where You’ll Find It

• JIC 37° Swivel Female – Hose ends on imported machinery, where the swivel lets the assembly be fitted without winding up the hose.

Cross-Reference

• JIC 37° Swivel Female – SAE J514 / ISO 8434-2 37° flare. Parker series Triple-Lok.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	H	Material	Finish
JIF-06	3/8" JIC	11.1mm	Mild steel	Plated finish
JIF-07	7/16" JIC	14.3mm	Mild steel	Plated finish
JIF-08	1/2" JIC	15.9mm	Mild steel	Plated finish
JIF-09	9/16" JIC	17.5mm	Mild steel	Plated finish
JIF-12	3/4" JIC	22.2mm	Mild steel	Plated finish
JIF-14	7/8" JIC	25.4mm	Mild steel	Plated finish
JIF-17	1.1/16" JIC	31.8mm	Mild steel	Plated finish
JIF-19	1.3/16" JIC	34.9mm	Mild steel	Plated finish
JIF-21	1.5/16" JIC	38.1mm	Mild steel	Plated finish
JIF-26	1.5/8" JIC	50.8mm	Mild steel	Plated finish
JIF-30	1.7/8" JIC	57.2mm	Mild steel	Plated finish
JIF-40	2.1/2" JIC	73.0mm	Mild steel	Plated finish

Key: H centre to face. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
