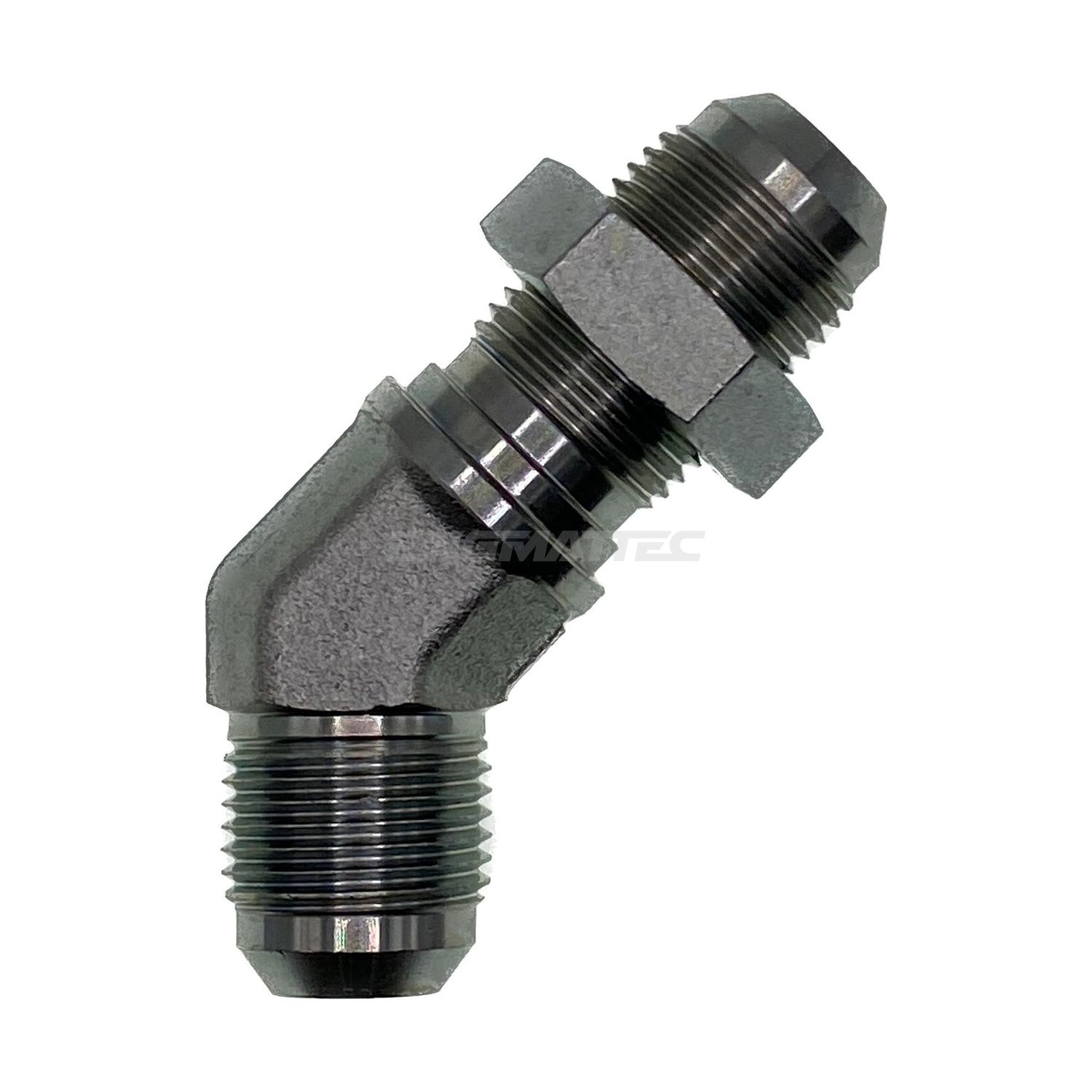

JIC Bulkhead Male x JIC Male 45° Compact
SKU JBM-JIM-45C-0707
AU$10.80
On Sale
was AU$20.50 Save 47%
Bulk pricing available for quantities of 5 units or more
Size
Please choose
In stock
1
Buy more, save more
| Quantity | Price per item | Discount |
| 5 items | AU$10.30 | 5% off |
| 10 items | AU$9.70 | 10% off |
| 25 items | AU$9.50 | 12% off |
| 50 items | AU$9.20 | 15% off |
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
JIC Bulkhead Male x JIC Male 45° Compact
Product Details
Brand: Engmattec
Weight: 0.18 kg
JIC Bulkhead Male x JIC Male 45° Compact
Bulkhead adaptors take a hydraulic line straight through a tank wall, panel or chassis plate – the long threaded body passes through the hole and a locknut clamps it tight.
Ways to buy:
- Off the shelf – pick your size from the dropdown below and it’s on its way.
- Need a size or combination you can’t see? Call us – if it exists, we can get it.
Pick your size
| Size / configuration | SKU | Price inc GST |
| Bulkhead - (07) 7/16" JIC Bulkhead Male x (07) 7/16" JIC Male - 45° Compact | JBM-JIM-45C-0707 | |
| Bulkhead - (07) 7/16" JIC Bulkhead Male x (07) 7/16" JIC Male - 45° Compact | JBM-JIM-45C-0707 | 0.80 |
| Bulkhead - (09) 9/16" JIC Bulkhead Male x (09) 9/16" JIC Male - 45° Compact | JBM-JIM-45C-0909 | |
| Bulkhead - (09) 9/16" JIC Bulkhead Male x (09) 9/16" JIC Male - 45° Compact | JBM-JIM-45C-0909 | 3.30 |
| Bulkhead - (12) 3/4" JIC Bulkhead Male x (12) 3/4" JIC Male - 45° Compact | JBM-JIM-45C-1212 | |
| Bulkhead - (12) 3/4" JIC Bulkhead Male x (12) 3/4" JIC Male - 45° Compact | JBM-JIM-45C-1212 | 4.30 |
| Bulkhead - (14) 7/8" JIC Bulkhead Male x (14) 7/8" JIC Male - 45° Compact | JBM-JIM-45C-1414 | |
| Bulkhead - (14) 7/8" JIC Bulkhead Male x (14) 7/8" JIC Male - 45° Compact | JBM-JIM-45C-1414 | 7.40 |
| Bulkhead - (17) 1 1/16" JIC Bulkhead Male x (17) 1 1/16" JIC Male - 45° Compact | JBM-JIM-45C-1717 | |
| Bulkhead - (17) 1 1/16" JIC Bulkhead Male x (17) 1 1/16" JIC Male - 45° Compact | JBM-JIM-45C-1717 | 8.30 |
| Bulkhead - (21) 1 5/16" JIC Bulkhead Male x (21) 1 5/16" JIC Male - 45° Compact | JBM-JIM-45C-2121 | $33.70 |
| Bulkhead - (26) 1 5/8" JIC Bulkhead Male x (26) 1 5/8" JIC Male - 45° Compact | JBM-JIM-45C-2626 | $39.60 |
What is in the box
One fitting as per your selection.
Specifications
| Parameter | Value |
| Brand | Engmattec |
| Material | Carbon steel |
| Thread end 1 | JIC Bulkhead Male |
| Thread end 2 | JIC Male |
| Configuration | 45° |
How to choose
- Measure the thread, not the hole – BSP sizes refer to thread size.
- The long bulkhead end passes through the panel; the short end takes your hose or adaptor.
- Going through a tank into a suction line? Step up a size rather than necking suction down.
- Not sure? Call us and we will confirm the size.
Technicians Advice
BSPP parallel threads do not seal on the thread – seal the parallel end with a bonded (Dowty) washer against a machined face, never PTFE tape alone. Drill the panel hole just over the thread OD, deburr both sides, and clamp the locknut on flat metal. Use two spanners: hold the fitting body while you torque the locknut, or you will twist the whole line. On thin or flexing panels, fit a large washer each side to spread the clamp load.
Buying in bulk or fitting out a fleet? Call us for trade pricing.
Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
