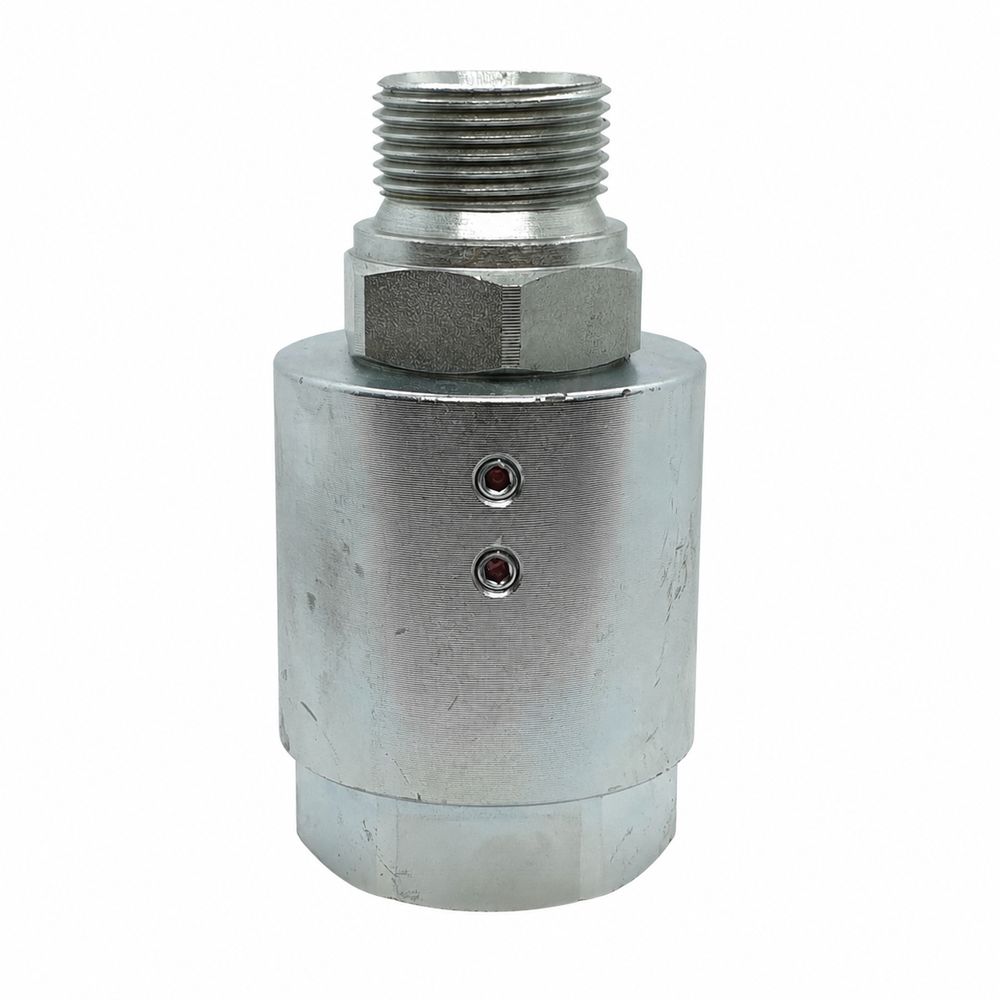

Inline Rotating Swivel BSPP Male x Female 1/4" to 1"

Inline rotating swivels, BSPP male one end, BSPP female the other. The joint rotates under pressure, so the hose stops twisting on booms, augers and reels – torsion is what kills hoses early. 5 sizes from 1/4" to 1". Pick your size below and it is on its way.

Ways to buy:

• Off the shelf – 5 BSPP sizes from 1/4" to 1" in the picker below.
• Need the rotation at 90° instead? See the 90 degree rotating swivel listing.
• Other thread forms and sizes – call us, we can supply to order.

Pick your size

What is in the box

One rotating swivel per unit price, ready to fit.

Specifications

How to choose

• Match the swivel to the hose or port size – a 1/2" hose line takes the 1/2" swivel.
• Fit the swivel at the end of the run where the twisting happens – usually the moving end.
• Rotation at a corner? The 90 degree version does both jobs in one fitting.
• High-speed continuous rotation (hose reels running all day)? Call us first.

Technicians Advice

A rotating swivel is there to take TORSION out of the hose, so put it where the twist happens – on the boom end, not the tank end. Fit it so the hose hangs in a single plane through its travel; if the hose still corkscrews through the arc, the swivel is on the wrong end of the run. These are for articulation, not continuous spinning – a motor-driven reel spinning all shift wants a dedicated rotary union, so ring us before you spec one for that.

Complete your setup

90 Degree Rotating Swivels

Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
