12 or 24 Volt DC Hydraulic Truck and Trailer Tail Ramp Kit. Complete, Single or Double Acting Package with 10 Lt oil tank .

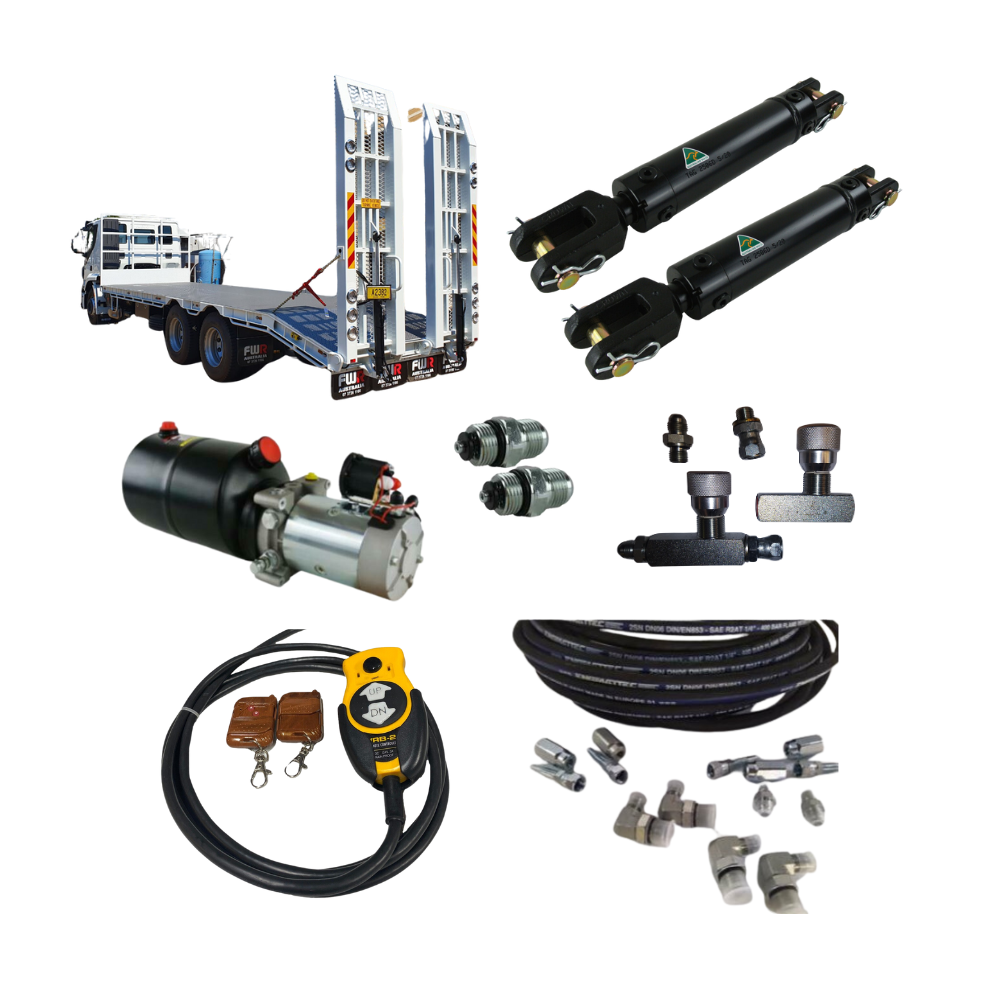

Package Includes: Hydraulic Power Unit, Two Hydraulic Cylinders each with a 6.6 ton push capacity, High pressure hose, DIY reusable hose fittings, adaptors, oil flow valve for speed control for safe lowering and a Push Button pendant controller.

This is a ready-to-fit package: for your beaver tail, step deck, drop deck or low loader. Powered by your choice of 12 or 24 Volts DC, this Hydraulic Power Pack is ready to fit where you prefer to use a cable pendant controller.

Details of the kit is as follows and Includes:
Hydraulic Power unit with Motor, Pump and tank, 2 x Lift Cylinders and hydraulic hose and fittings Kit

• 12 or 24 Volt Dc Hydraulic Power unit with 1.6 kW motor for Single acting or 2.2 KW of power for Double acting Flow control Solenoid Coils
• A 2 button pendant controller with 3 M cable and Holster,
• Two high-quality Australian Made Cylinders for Single acting, (Gravity lowers the ramps), or Double Acting (The DC power unit lifts the ramps up and pushes the Ramps down) Configuration
• Each Cylinder has the capacity to push up to 6.6 tons at 200 bar (3,000 psi) .
• Cylinders are supplied with safety 'Hose Burst valves'
• A 10 M roll of 1/4" Hydraulic Hose
• A set of high pressure field fit reusable Hose fittings, adaptors and tees.
• A reverse Check Oil flow control valve to control the lowering speed of the ramps

This is a ready-to-fit package for your beaver tail, step deck, drop deck or low loader.

Powered by your choice of 12 or 24 Volts DC, this Hydraulic Power Pack is ready to fit where you prefer to use a cable pendant controller.

Click to see our lever operated double acting ramp kit).

It is an ideal tail ramp power/control unit. The rams, hose & fittings are included.

This Single or double Acting power Unit is designed to supply an oil flow of 5 Lt/Min at a Pressure of 2,800 PSI.

On the Single Acting Unit: When you press the down button, the powerpack will not start, but the ramps will lower with gravity.

On the Double Acting Unit: When you press the down button, the powerpack will also start, and the ramps will be driven down.

The adjustable Knob on the "reverse check flow control Valve" : will allow you to control and set the descent or ramp lowering speed.

Pressing the Up button on the pendant controller: will automatically Start the Hydraulic power Unit and the ramps will raise (possibly at different rates to the top)
They will then hydraulically lock in place when pendant button is released.

Specifications

• Power Rating 12 Volt DC, 1.6 KW, or 24 Volts DC, 2.2 KW

• Flow 5.0 liters per Minute at 170 Bar (2500 PSI)
• Max Pressure up to 200 BAR (3000 PSI at reduced flow)
• Pressure relief valve Factory set at 170 BAR (2500 PSI)
• Oil Discharge Ports 9/16 UNO
• USE HYD 32 or HYD 46 oil or Dextron III Auto Transmission oil. Hydraulic Oil ISO 68 may be too thick to use in colder temperatures and climates.
• 10 Litre capacity Oil tank with combination filler breather level plug and separate plug.
• Larger tank capacities are also available up to 38 Litres. (message for cost)
• The Hydraulic Power Unit can also be mounted Horizontally as well as Vertically (Motor Up only)
  # If mounting Vertically you must contact us as the oil pick-up needs to be changed
• Safety thermistors are installed in motor windings to prevent overheating.
• Duty Cycle = 25% at Low Duty, low load and pressure (600 PSI) = 100Amps Draw,
  Allowable run time 12.5 minutes and then allowed to totally cool down.
  or 150 seconds ON - 400 seconds OFF.
• Duty Cycle = 19% at Medium duty medium load and pressure (1600 PSI) = 160 Amps Draw
  Allowable run time of 7.5 minutes and then allowed to totally cool down.
  or 150 seconds ON - 640 seconds OFF.
• Duty Cycle = 7% 300 Amps High Duty High Load and pressure (3000 PSI) = 300 Amps Draw
  Allowable run time 1.7 Minutes and then allowed to totally cool down.
  or 150 seconds ON and 2000 seconds OFF

Please note with this set up, ramps are hydraulically locked, & a heavy machine in mud can actually bend Ram rods if ramps sink or are not supported firmly on the ground. Click here to see our D/A Float ramp package D/A ramp package

Also supplied are safety 'burst' valves which insert into the bottom ram ports. These stop the ramps falling if ever a hose is damaged or ripped of. We supply hose, fittings & field fit reusable hose tails that allow you to custom make your own hoses.

See our videos for reusables. Field Fit Reusable hose tail video

.
Allow 3-4 business days to dispatch

Video below is our double acting version with a lever valve & float

(PLEASE SEE FURTHER DOWN THE PAGE FOR ADVICE ON HOW TO CHOOSE RAM STROKE)

Options available .

• 12 V or 24 Volt SA or DA Powerpack with a 10L oil tank .
• Multiple Stroke options for the Two x 2.5 " inch bore x 1.5 inch Rod cylinders
• Hose and fittings for single acting application, (Top ports of the single acting Cylinders must be connected to the top of power pack's tank to prevent internal corrosion in rams)

Two Australian made double acting 2.5" bore (6.5 tonnes each) Choose from;

• 18" Stroke Double Acting Cylinders - closed measurement 30.25"/768mm, open measurement 48.25"/1225mm
• 20" Stroke Double Acting Cylinders - closed measurement 32.25"/819mm, open measurement 52.25"/1327mm
• 22" Stroke Double Acting Cylinders - closed measurement 34.25"/869mm, open measurement 56.25"/1428mm
• 24" Stroke Double Acting Cylinders - closed measurement 36.25"/920mm, open measurement 60.25"/1530mm
• 26" Stroke Double Acting Cylinders - closed measurement 38.25"/971mm, open measurement 64.25"/1631mm
• 28" Stroke Double Acting Cylinders - closed measurement 40.25"/1022mm, open measurement 68.25"/1733mm
Items required additionally; (NOT Supplied)
• Heavy duty Cable electric hook-up, (high amp welding cable is ideal for power from the battery/s to the power pack
• Ramps,
• 12 or 24 Volt Batteries. .
Please contact us for custom-length crimped hoses,

Please keep in mind all DC Hydraulic power packs require High amperage & create a lot of heat.
They are designed only for intermittent use.
See the bottom of this page for an estimate of the duty cycle.




How Do I Work Out What Stroke Rams I Need?

The measurements of the ram you need to take note of, are the 'open & closed' sizes.

These are measured from pin to pin with the ram fully closed & then fully extended.



Mark a spot on the rear of the trailer where you are going to weld your 1" thick ram bottom mount.



Then, mark a spot up on the ramps for the top mount, ie for a 28” ram,

mark at 1733mm with ramp in an upright position. If possible weld mount where the ram is fully extended, this way, the ram's 6-tonne force is contained on full extension.

Then, drop the ramp on the ground, and use our given 'closed' measurements to mark in pen or tape a spot on the ramp.

Keep in mind, you need to leave a few inches of the rod showing when the ramp is on the ground, this is to allow for uneven ground, etc.

Then lift the ramp, & again use our 'Open measurement to see what ram has the closest open & closed measurements to suit your build.

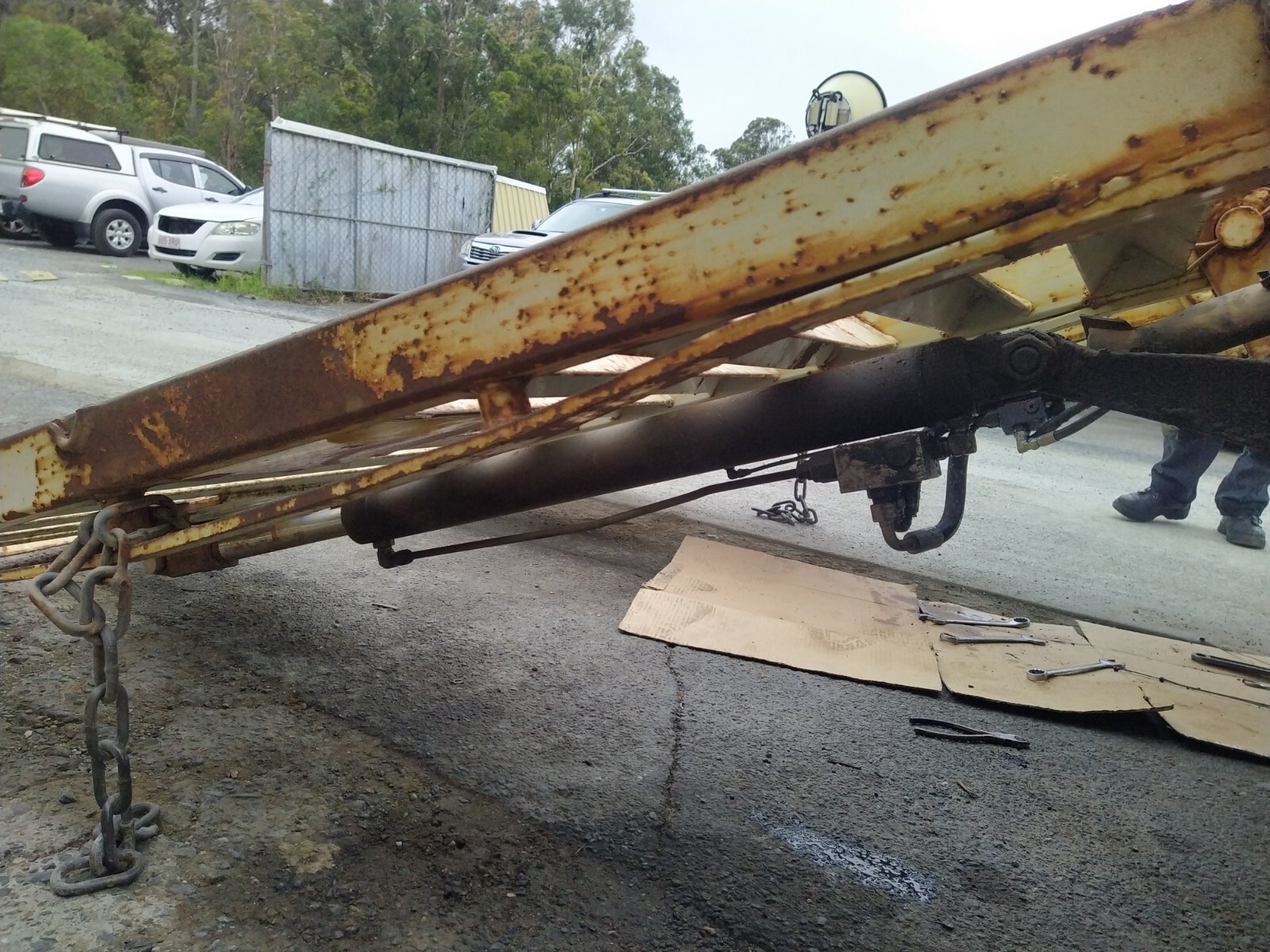

There are two photos of a customer's ramps below. These rams are a 28" stroke. As you can see when ramps are on flat hard ground, there are several inches of ram travel left. This means if ramps ever had to be lowered onto sloping ground, they could further descend.

Intermittent use only!
e.g. Mini Cranes, Tail Gate Loaders, Ramps on trailers and low loaders Camper van or camper trailer leveling or any other hydraulic circuit requiring intermittent use, low flow, and high-pressure hydraulic oil.


This Unit is capable of generating up to 200 Bar (3000 PSI) Pressure at a reduced flow rate.
Pressure relief is set at 2500 psi as standard
