Hydraulic Hose fitting One Piece JIC Female Straight for 1 & 2 Wire

Name: JIC Female Gates Hydraulic Hose Fittings for 1 & 2 Wire Hose
SKU: HTO-JIF
Price: 6.3 AUD
Availability: InStock

Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Medium Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°

SKU HTO-JIF

AU$6.30

Use Coupon EOFY26

was ~~AU$12.00~~ Save 48%

Size

Please choose

In stock

Quantity:

Save this product for later

Customer reviews

Reviews only from verified customers

No reviews yet. You can buy this product and be the first to leave a review.

Share this product with your friends

Share Share Pin it

Hydraulic Hose fitting One Piece JIC Female Straight for 1 & 2 Wire

Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Medium Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°

Product Details

Weight: 0.20 kg

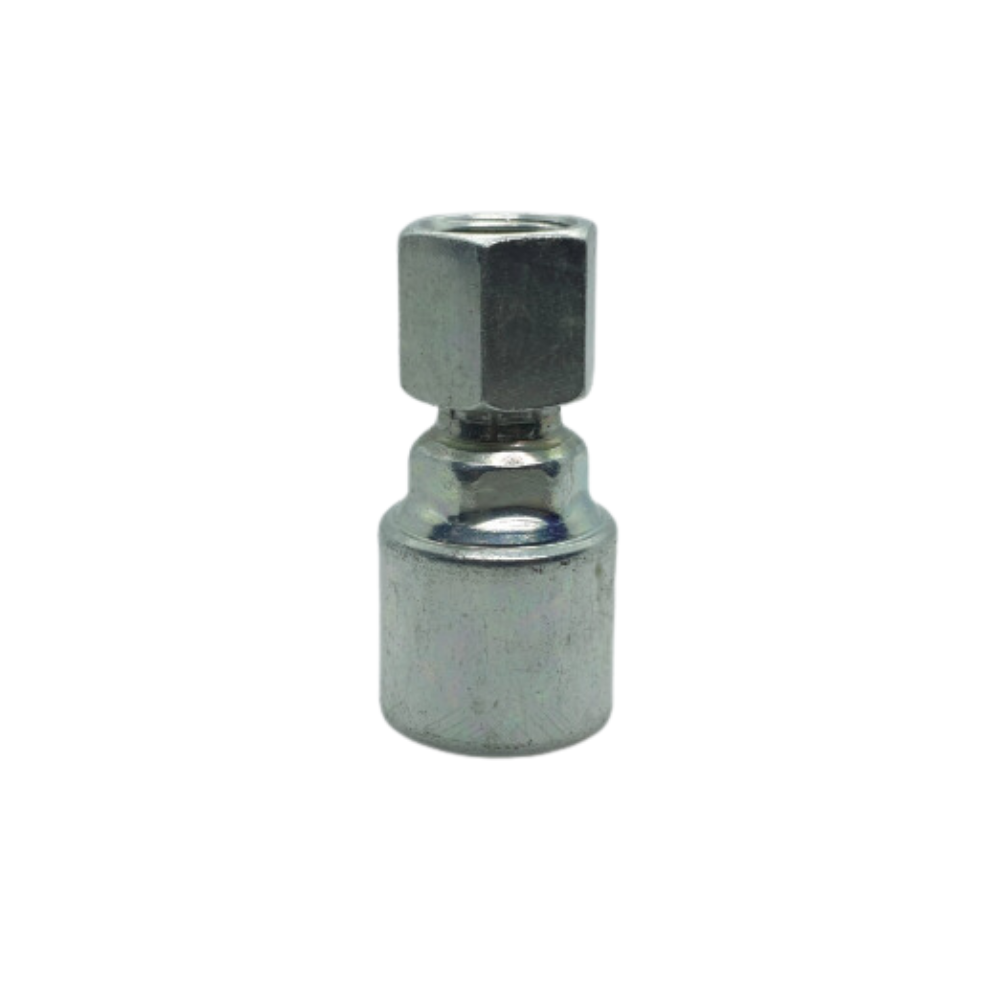

Quality Gates US made "One piece" 'Crimp On' JIC Female with swivel nut hydraulic hose tails for 1 and 2 wire Hydraulic Hoses.

We Have been using these quality one piece US made zinc-plated steel hydraulic hose fittings out in the field for over 8 years.

The newest design : is good for 1 wire and 2 wire Hydraulic Hoses saving even more cost in stock holding.

These are precision-made and tough hydraulic hose tails with great strength and corrosion resistance.

Please check our thread Identification chart in the photo section. Or the chart below.

It is recommended you use callipers or verniers to achieve precise measurement. We also have a BSP listing. JIC & BSP are the most commonly used fittings in Australia.

Other thread types also available eg BSP, ORFS, Metric, JIS, SAE Flange, and CAT Flange also available.

Contact us for Help and assistance in thread identification,
Alternatively, please measure the outside of the male thread & message us the dimension.
They have been designed to be crimped on to either 100R1 or 100R2 Wire Braided Hydraulic Hose (1 wire or 2 wire)

JIC/UNO THREAD ID CHART
Male Thread OD & Pitch	DASH SIZE	Male Thread OD		Female Thread ID		TUBE SIZE
Male Thread OD & Pitch	DASH SIZE	Male Thread OD		Female Thread ID		TUBE SIZE
inch – TPI		mm	inch	mm	inch	inch
5/16 – 24 UNF	-05	7,9	0.31	6,9	0.27	1/8
3/8 – 24 UNF	-06	9,5	0.38	8,5	0.33	3/16
7/16 – 20 UNF	-07	11,1	0.44	9,9	0.39	1/4
1/2 – 20 UNF	-08	12,7	0.50	11,4	0.45	5/16
9/16 – 18 UNF	-09	14,3	0.56	13,0	0.51	3/8
3/4 – 16 UNF	-12	19,1	0.75	17,5	0.69	1/2
7/8 – 14 UNF	-14	22,2	0.88	20,3	0.80	5/8
1.1/16 – 12 UNF	-17	27,0	1.06	24,9	0.98	3/4
1.3/16 – 12 UNF	-19	30,2	1.19	28,2	1.11	7/8
1.5/16 – 12 UNF	-21	33,3	1.31	31,2	1.23	1
1.5/8 – 12 UNF	-26	41,3	1.63	39,1	1.54	1.1/4
1.7/8 – 12 UNF	-30	47,6	1.88	45,5	1.79	1.1/2
2.1/2 – 12 UNF	-40	63,5	2.50	61,5	2.42	2

Please send us a message for more information.
Email: sales@mhfgc.com.au

Phone: 07 5563 1982
Hours: 8 am to 5 pm Monday - Friday, excluding public holidays
If you have any questions please don’t hesitate to contact us

Best regards,
Hydraulic.Online
Improper Selection, Installation, Implementation, And/Or Operation By Anyone Other Than Persons With Appropriate Technical And Mechanical Training Can Result In Damage To Equipment Or Property, Serious Personal Injury, Or Death. Proper Precautions And Safety Procedures Should Be Implemented Prior To The Installation And Operation Of Equipment.
