Crossline Relief Valve for Hydraulic Motors - 3/8 to 3/4 inch BSPP - 40 to 80 L/min
SKU VBDC3802
AU$182.20
On Sale
was AU$230.00 Save 21%
Size, Flow, Range and Style
Please choose
Protects the motor in both directions of rotation - stop a spinning load without blowing seals or shearing shafts
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

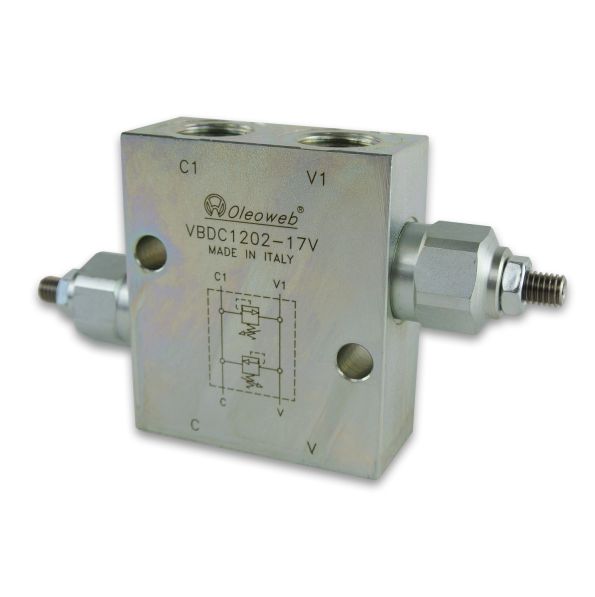

Crossline Relief Valve for Hydraulic Motors - 3/8 to 3/4 inch BSPP - 40 to 80 L/min
Product Details
Weight: 2.00 kg
Crossline Relief Valve for Hydraulic Motors - 3/8 to 3/4 inch BSPP - 40 to 80 L/min
A crossline relief sits between the two work lines of a hydraulic motor and protects it in both directions of rotation. Stop a spinning slasher, auger, winch or conveyor abruptly and the load keeps driving the motor — the crossline relief gives that trapped pressure somewhere to go before it blows a seal or shears a shaft.
Use the dropdown above to pick your size and style. The DPRSU version adds a tank port so the low side can draw make-up oil instead of cavitating — the right choice for high-inertia loads that free-wheel.

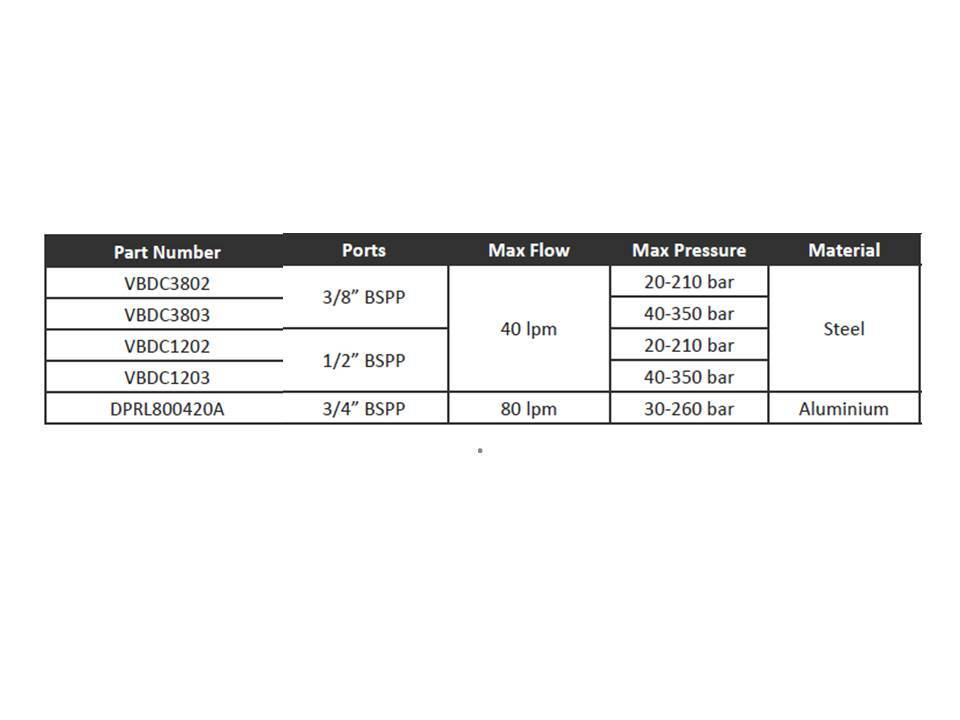

Sizes and Part Numbers
| Ports | Max Flow | Range | Style | Part Number |
|---|---|---|---|---|
| 3/8 inch BSPP | 40 L/min | 20 to 210 bar | Crossline relief, dual cartridge | VBDC3802 |
| 3/8 inch BSPP | 40 L/min | 40 to 350 bar | Crossline relief, dual cartridge | VBDC3803 |
| 1/2 inch BSPP | 40 L/min | 20 to 210 bar | Crossline relief, dual cartridge | VBDC1202 |
| 1/2 inch BSPP | 40 L/min | 40 to 350 bar | Crossline relief, dual cartridge | VBDC1203 |
| 1/2 inch BSPP | 80 L/min | 30 to 260 bar | Dual relief WITH tank port (anti-cav make-up) | DPRSU800320A |
| 3/4 inch BSPP | 80 L/min | 30 to 260 bar | Dual crossline relief | DPRL800420A |
How to Choose
- Match the flow to your motor circuit - 40 L/min bodies suit most BMP/BMR class motors, 80 L/min for the bigger frames.
- Pick the range so your protection setting sits mid-range, typically 10-20% above working pressure.
- Load free-wheels when you let go? Take the DPRSU with the tank port - pure crossline valves cannot make up oil on the suction side.
Technicians Advice
The main relief cannot save your motor. When a spinning load drives the motor after the valve centres, the pressure spike is trapped between motor and valve - the system relief never sees it.
That is what these are for. Set them with a gauge 10-20% above working pressure. Watch for cavitation on long run-downs: a pure crossline relief moves oil from one side to the other, but leakage means the low side can suck air - if your load spins down for more than a second or two, use the tank-ported DPRSU version plumbed to tank, or fit anti-cav checks. Mount close to the motor - a metre of hose between motor and relief is a metre of spike.
Official Datasheets
📄 Oleoweb VBDC Factory Datasheet (PDF)📄 DPRSU 80 Factory Datasheet (PDF)
Related
⭐ Orbital MotorsWheel Drive MotorsInline Relief Valves
Not sure? Call 1300 146 737 or email sales@mhfgc.com.au — we speak fluent hydraulics.
Typical applications: Shock and overrun protection for hydraulic motors in both directions of rotation. For pump and power-unit protection see our inline relief valves.
