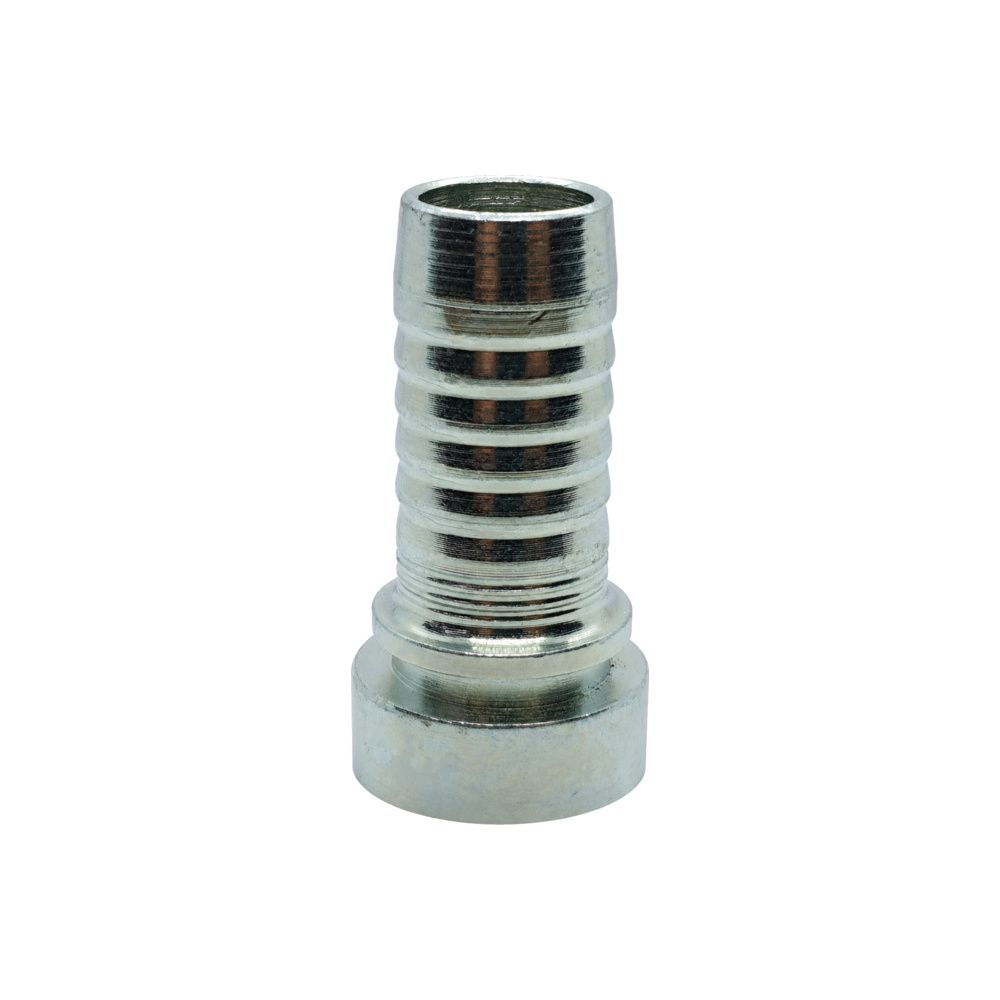

Hose Tail – Tube-Weld Female – Straight – Two-Piece Crimp-On

A tube-weld female on a straight crimp tail, for joining a hose onto a welded tube end on a fabricated machine.

Mild steel body with a plated finish, manufactured to the standard listed above.

This is the tail only – ferrules are sold separately

A two-piece crimp-on assembly is two separate parts: this tail (the stem) and a ferrule that crimps over the hose. The ferrule is not included. You need one ferrule per tail.

We sell them separately on purpose. Several different ferrule styles will fit, and the right one depends on the hose you are crimping onto, not just the size:

• FS‑R2 Multi‑Fit – 1‑wire, 2‑wire, M3K and MXT braided hose. One series covers the lot, so most jobs take this.
• FS‑R7 – thermoplastic 100R7 hose. Different outside diameter and crimp figure to braided hose.
• FS‑R14 – PTFE 100R14 hose with stainless braid.

🔗 Choose your ferrule – see all styles

Not sure which one? Tell us the hose you are using on 1300 146 737 and we will match it. Never mix a tail from one system with a ferrule from another – the crimp diameter will be wrong.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• Tubeweld Female (weld-on socket) – plain-bore socket sized to a tube OD, joined by welding rather than a thread, has no seal of its own – the weld is the joint, so the tube must be clean, square and correctly prepared

How to Choose

• A straight tail is the default. Only go to a bend when the hose would otherwise leave the port at an angle it does not like.
• The mating half is welded to the tube, so confirm the seat form on the existing weld end before ordering.
• Seals on the mating seat, not on the thread.

Technicians Advice

Clean the welded half properly before assembly. Weld spatter and scale on a sealing seat will cut the mating cone and leave you chasing a leak that has nothing to do with the new hose.

Where You’ll Find It

• Tubeweld Female (weld-on socket) – fabricated tube runs on machinery builds, tank and reservoir plumbing, and repairs where a threaded connection is not wanted or there is no room for one.

Cross-Reference

• Tubeweld Female (weld-on socket) – Weld-on socket, also called a weld nipple, weld boss or tubeweld end. Sized by tube outside diameter, not by thread.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Downloads

📄 Crimp Dimensions Chart (PDF) 📄 Thread Identification Chart (PDF)
