Hose Tail - SAE Code 61 Flange - 90° Elbow - Two-Piece Crimp-On
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/Two piece Crimp-on Hosetails in Straight, 45° & 90°/SAE Hose Tails
Product Details
Weight: 0.11 kg

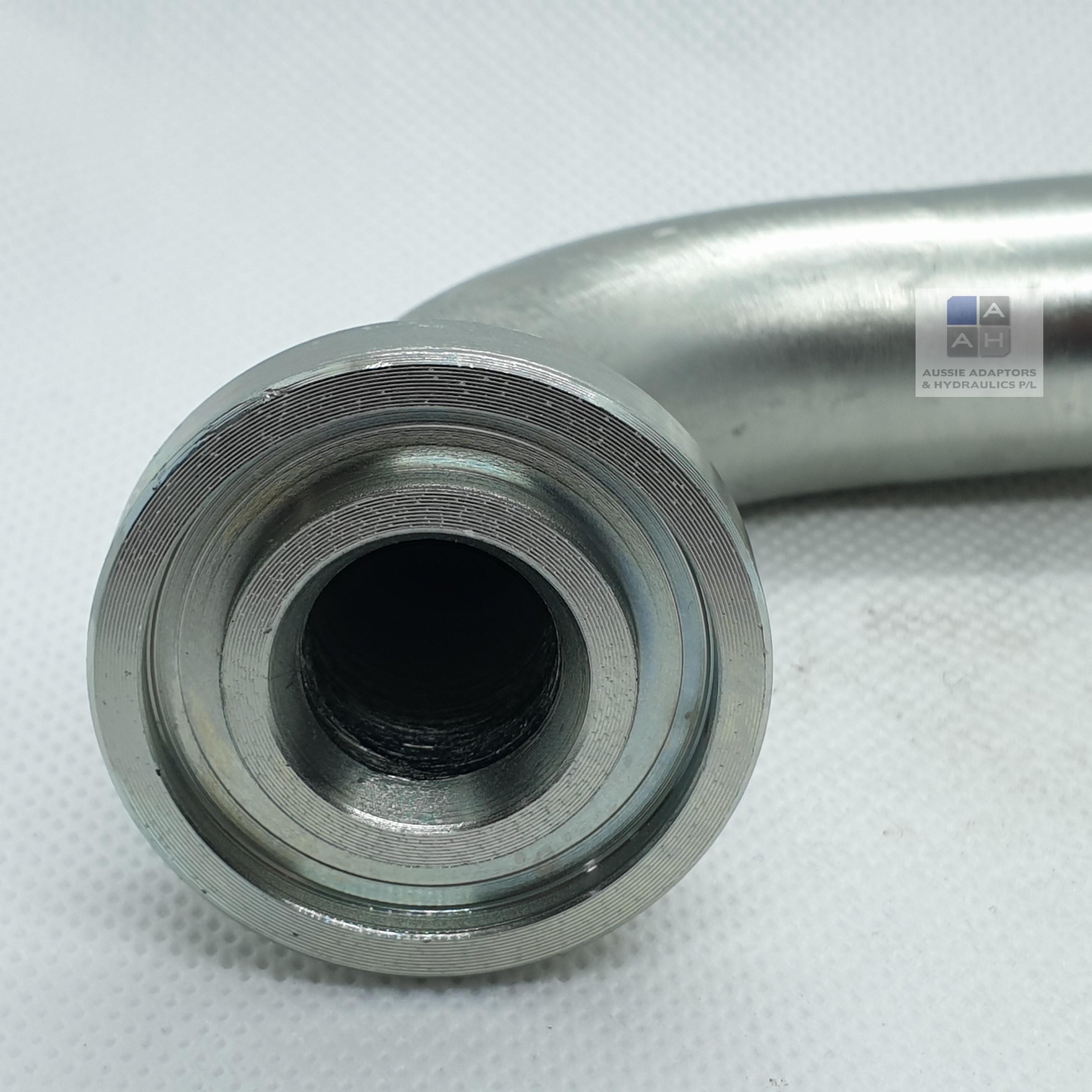

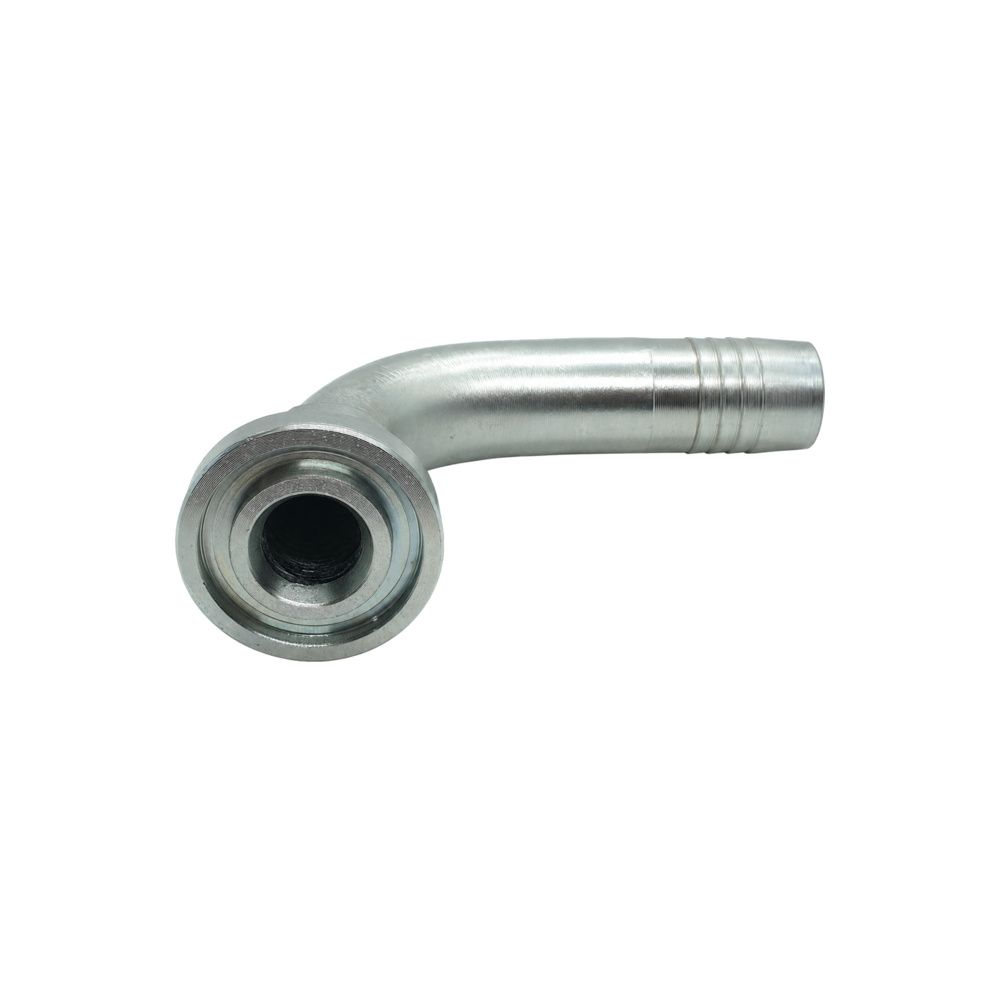

Hose Tail - SAE Code 61 Flange - 90° Elbow - Two-Piece Crimp-On
Two-piece crimp-on hose tail: the SAE Code 61 Flange end Split-flange head, O-ring face - the pump and motor port standard. Commonly found on pump and motor ports on earthmoving equipment. Crimp it with our FS-R2 Multi-Fit ferrule – one ferrule series covers 1-wire, 2-wire, M3K and MXT braided hose, so you stock half the parts.
⬇ Crimp Dimensions Chart (PDF)⬇ Thread Identification Chart (PDF)
Don’t forget the ferrule: every two-piece tail needs an FS-R2 Multi-Fit ferrule – the same ferrule suits 1-wire and 2-wire hose. Order one per tail.
Ways to buy:
- Off the shelf – pick your size below and it’s on its way.
- Crimped onto a made-to-length hose – order through our hose assembly builder and we do the crimping.
- Need a size you can’t see? Call us – if it exists, we can get it.
Pick your size
| Variation | SKU | Price inc GST |
| Hose Tail - (08) 1/2" Hose x (08) 1/2" SAE Code 61 Flange - 90° Elbow | HTB-F61-90S-0808 | $12.40 |
| Hose Tail - (08) 1/2" Hose x (12) 3/4" SAE Code 61 Flange - 90° Elbow | HTB-F61-90S-0812 | $13.30 |
| Hose Tail - (10) 5/8" Hose x (10) 5/8" SAE Code 61 Flange - 90° Elbow | HTB-F61-90S-1010 | $19.30 |
| Hose Tail - (12) 3/4" Hose x (08) 1/2" SAE Code 61 Flange - 90° Elbow | HTB-F61-90S-1208 | $15.80 |
| Hose Tail - (12) 3/4" Hose x (12) 3/4" SAE Code 61 Flange - 90° Long Drop | HTB-F61-90L-1212 | $21.60 |
| Hose Tail - (12) 3/4" Hose x (12) 3/4" SAE Code 61 Flange - 90° Elbow | HTB-F61-90S-1212 | $14.50 |
| Hose Tail - (12) 3/4" Hose x (16) 1" SAE Code 61 Flange - 90° Long Drop | HTB-F61-90L-1216 | $33.20 |
| Hose Tail - (12) 3/4" Hose x (16) 1" SAE Code 61 Flange - 90° Elbow | HTB-F61-90S-1216 | $26.20 |
| Hose Tail - (16) 1" Hose x (12) 3/4" SAE Code 61 Flange - 90° Elbow | HTB-F61-90S-1612 | $26.80 |
| Hose Tail - (16) 1" Hose x (16) 1" SAE Code 61 Flange - 90° Elbow | HTB-F61-90S-1616 | $24.30 |
| Hose Tail - (16) 1" Hose x (20) 1-1/4" SAE Code 61 Flange - 90° Elbow | HTB-F61-90S-1620 | $35.00 |
| Hose Tail - (20) 1-1/4" Hose x (20) 1-1/4" SAE Code 61 Flange - 90° Elbow | HTB-F61-90S-2020 | $38.30 |
| Hose Tail - (20) 1-1/4" Hose x (24) 1-1/2" SAE Code 61 Flange - 90° Elbow | HTB-F61-90S-2024 | $51.30 |
| Hose Tail - (24) 1-1/2" Hose x (24) 1-1/2" SAE Code 61 Flange - 90° Long Drop | HTB-F61-90L-2424 | $215.40 |
| Hose Tail - (24) 1-1/2" Hose x (24) 1-1/2" SAE Code 61 Flange - 90° Elbow | HTB-F61-90S-2424 | $57.60 |
| Hose Tail - (24) 1-1/2" Hose x (32) 2" SAE Code 61 Flange - 90° Elbow | HTB-F61-90S-2432 | $89.10 |
| Hose Tail - (32) 2" Hose x (32) 2" SAE Code 61 Flange - 90° Elbow | HTB-F61-90S-3232 | $101.70 |
Specifications
| Parameter | Value |
| Type | Two-piece crimp-on hose tail |
| End form | SAE Code 61 Flange |
| Configuration | 90° Elbow |
| Material | Zinc-plated carbon steel |
| Ferrule | FS-R2 Multi-Fit (order separately, one per tail) |
| Suits hose | 1-wire (R1AT/1SN), 2-wire (R2AT/2SN), M3K, MXT braided |
| Crimp data | See Crimp Dimensions Chart above |
| Brand | Engmattec |
How to choose
- First number is the hose bore in dash sixteenths – (08) = 12.7 mm (1/2") hose.
- Second is the thread end – check it with the Thread Identification Chart if unsure.
- One elbow per assembly – if both ends need a bend, use a screw-on elbow adaptor on the second end.
Technicians Advice
Torque the four clamp bolts evenly in a cross pattern and always fit a new O-ring - the clamp cannot compensate for a pinched ring.
