Hose Tail Reusable BSP Swivel Female 90° Compact - With Two Wire Ferrule
Store/Reusable Fittings for Hydraulic Hose Straight, 90° & 45° Elbow Field Fit/BSP Female, Male, Straights, 90° & 45° Field Fit Reusables
SKU HTR-BSF-90C-0404-FR-R2
AU$13.20
🔥 EOFY SALE!
was AU$25.10 Save 47%
Size
In stock
1
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.

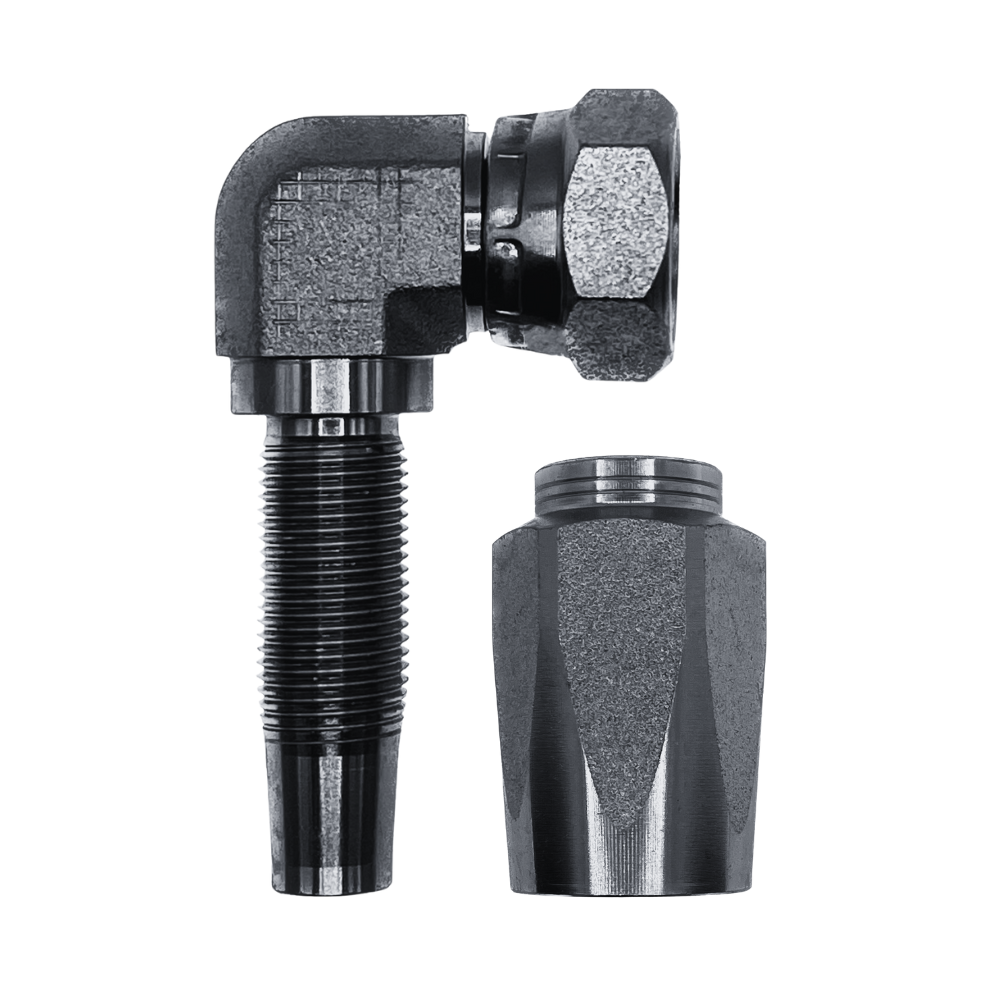

Hose Tail Reusable BSP Swivel Female 90° Compact - With Two Wire Ferrule
Store/Reusable Fittings for Hydraulic Hose Straight, 90° & 45° Elbow Field Fit/BSP Female, Male, Straights, 90° & 45° Field Fit Reusables
Product Details
Brand: Hydraulic.Online
Weight: 0.15 kg
BSP Female Field Fit Reusable Compact 90° two piece Hydraulic Hose Fitting
Repair your own hydraulic hoses in the field! 90° Hosetails BSP Female COMPACT BEND
Field Fit Hydraulic Hose fittings are a two piece assembly made from Zinc coated Steel designed to be used onto one or two wire SAE 100R1 and SAE 100R2 Spec rated hydraulic hose.
Using basic hand tools and following a simple assembly procedure the 2 pieces are screwed onto and into a Hydraulic Hose. When fully assembled, the connection is rated to work safely up to the full pressure rating of the hose.
Reusables are Designed to repair damaged Hydraulic Hoses or to be used in new Hydraulic Hose assemblies, without having to use expensive equipment.
1/4" - 1" hose tails to 1/4" - 1" Female BSP thread type. Price is for one hosetail & one ferrule.
| BSPT/BSPP THREAD ID CHART | |||||||||
| BSPT / BSPP Size & Pitch | DASH SIZE | BSPT Male Thread OD | BSPP Male Thread OD | BSPT Female Thread ID | BSPP Female Thread ID | ||||
| inch – TPI | mm | inch | mm | inch | mm | inch | mm | inch | |
| 1/8 – 28 | -02 | 9,5 | 0.37 | 9,6 | 0.38 | 8,4 | 0.33 | 8,6 | 0.34 |
| 1/4 – 19 | -04 | 12,8 | 0.50 | 13,0 | 0.51 | 11,2 | 0.44 | 11,9 | 0.47 |
| 3/8 – 19 | -06 | 16,3 | 0.64 | 16,5 | 0.65 | 14,7 | 0.59 | 15,2 | 0.60 |
| 1/2 – 14 | -08 | 20,4 | 0.80 | 20,8 | 0.82 | 18,3 | 0.72 | 19,1 | 0.75 |
| 5/8 – 14 | -10 | 22,5 | 0.89 | 22,8 | 0.90 | 20,6 | 0.81 | 20,8 | 0.82 |
| 3/4 – 14 | -12 | 25,9 | 1.02 | 26,3 | 1.04 | 23,9 | 0.94 | 24,6 | 0.97 |
| 1 – 11 | -16 | 32,6 | 1.28 | 33,1 | 1.30 | 29,7 | 1.17 | 30,7 | 1.21 |
| 1.1/4 – 11 | -20 | 41,1 | 1.62 | 41,8 | 1.64 | 38,6 | 1.52 | 39,4 | 1.55 |
| 1.1/2 – 11 | -24 | 47,0 | 1.85 | 47,7 | 1.88 | 44,5 | 1.75 | 45,5 | 1.79 |
| 2 -11 | -32 | 58,6 | 2.31 | 59,5 | 2.34 | 56,4 | 2.22 | 57,4 | 2.26 |
| 2.1/2 – 11 | -40 | 74,1 | 2.92 | 75,1 | 2.95 | 71,9 | 2.83 | 72,6 | 2.86 |
| 3 – 11 | -48 | 86,6 | 3.41 | 87,9 | 3.46 | 84,6 | 3.33 | 85,4 | 3.36 |
Made from zinc-plated steel, the DIY cost effective design can be assembled with simple hand tools onto one or two wire hydraulic hose manufactured to SAE 100R1 and SAE 100R2 Specifications.
Option at no extra cost: field fit body to suit SAE 100R1- Hose.
Each order comes with easy to follow assembly instructions.
To buy multiple quantities of different sizes:
- Select the button on the item you want to purchase then enter the quantity at the bottom of the list (you can also use the up and down arrows to add or subtract quantities.
- Then click 'add to bag’, you can then select another item and repeat the procedure.
- When finished click Go to Checkout box where you can review your items, and edit quantities or remove them altogether.
- If you are happy with your selection you can move to checkout or click the link at the bottom of the page that states “Looking for more? Continue shopping.
- Continue Shopping will take you back to the Category of Products you were looking for.
BSP Female and BSPT Male Reusables are available as well.
Many other thread types and sizes available on request, adaptors too, Contact us on 0755631982
POST; We are happy to combine shipping. Contact us for large orders
IMPROPER SELECTION, INSTALLATION, IMPLEMENTATION AND/OR OPERATION BY ANYONE OTHER THAN PERSONS WITH APPROPRIATE TECHNICAL AND MECHANICAL TRAINING CAN RESULT IN DAMAGE TO EQUIPMENT OR PROPERTY, SERIOUS PERSONAL INJURY OR DEATH. PROPER PRECAUTIONS AND SAFETY PROCEDURES SHOULD BE IMPLEMENTED PRIOR TO INSTALLATION AND OPERATION OF EQUIPMENT.
MM 10/12/2024 stock availability
