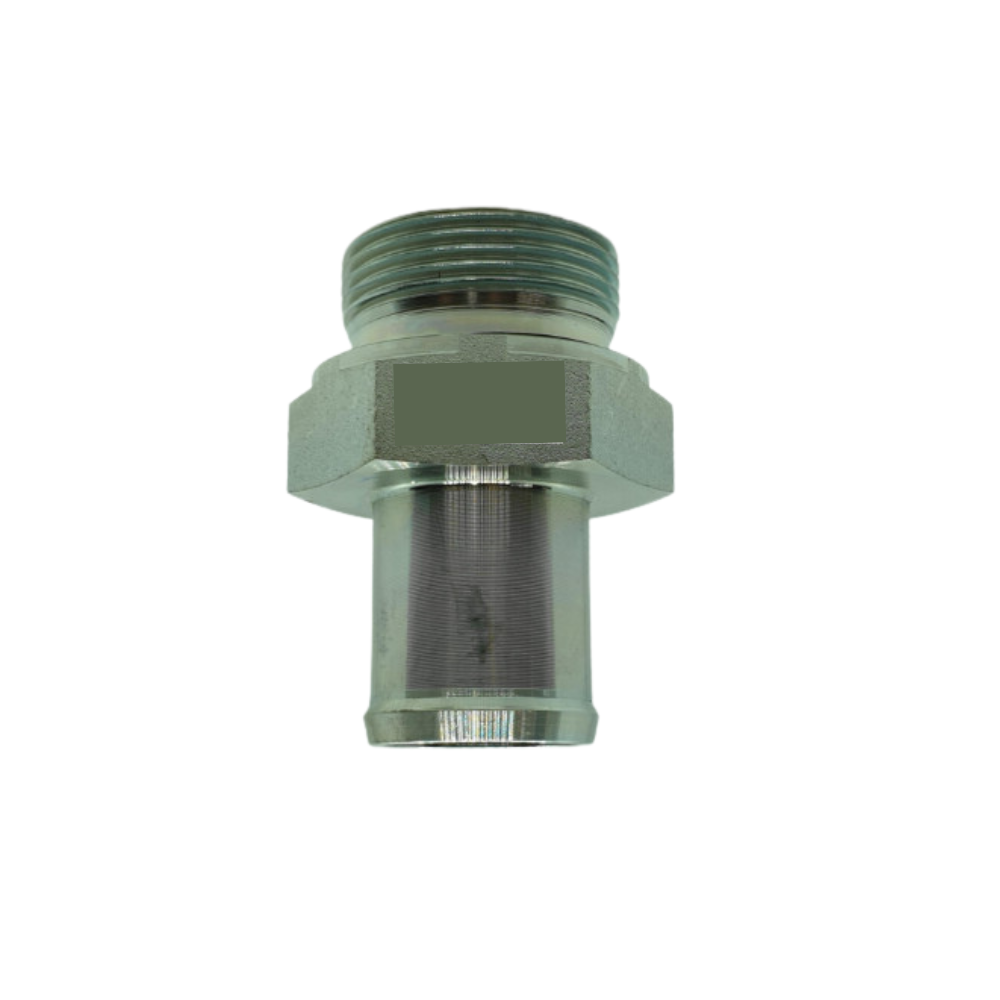

Hose Tail Low Pressure BSP Parallel Male Straight
Store/Crimp On Hydraulic Hose Fittings 1 and 2 Piece/One piece Medium Pressure crimp-on Hydraulic Hose Fittings Straight, 90° & 45°
Product Details
Brand: Hydraulic.Online
Weight: 0.40 kg
LOW PRESSURE OIL SUCTION HOSE TAILS BSPP ParalellSTRAIGHT
Our part numbers breakdown, Hose barb size first, male thread second, as below. We also have a UNO + Bspt listings.
LPT-BPT-1612 = 1" Barb x 3/4" Bspp male thread.
If you are unsure, please measure the outside of the male thread & message us the dimension.
| BSPT/BSPP THREAD ID CHART | |||||||||
| BSPT / BSPP Size & Pitch | DASH SIZE | BSPT Male Thread OD | BSPP Male Thread OD | BSPT Female Thread ID | BSPP Female Thread ID | ||||
| inch – TPI | mm | inch | mm | inch | mm | inch | mm | inch | |
| 1/8 – 28 | -02 | 9,5 | 0.37 | 9,6 | 0.38 | 8,4 | 0.33 | 8,6 | 0.34 |
| 1/4 – 19 | -04 | 12,8 | 0.50 | 13,0 | 0.51 | 11,2 | 0.44 | 11,9 | 0.47 |
| 3/8 – 19 | -06 | 16,3 | 0.64 | 16,5 | 0.65 | 14,7 | 0.59 | 15,2 | 0.60 |
| 1/2 – 14 | -08 | 20,4 | 0.80 | 20,8 | 0.82 | 18,3 | 0.72 | 19,1 | 0.75 |
| 5/8 – 14 | -10 | 22,5 | 0.89 | 22,8 | 0.90 | 20,6 | 0.81 | 20,8 | 0.82 |
| 3/4 – 14 | -12 | 25,9 | 1.02 | 26,3 | 1.04 | 23,9 | 0.94 | 24,6 | 0.97 |
| 1 – 11 | -16 | 32,6 | 1.28 | 33,1 | 1.30 | 29,7 | 1.17 | 30,7 | 1.21 |
| 1.1/4 – 11 | -20 | 41,1 | 1.62 | 41,8 | 1.64 | 38,6 | 1.52 | 39,4 | 1.55 |
| 1.1/2 – 11 | -24 | 47,0 | 1.85 | 47,7 | 1.88 | 44,5 | 1.75 | 45,5 | 1.79 |
| 2 -11 | -32 | 58,6 | 2.31 | 59,5 | 2.34 | 56,4 | 2.22 | 57,4 | 2.26 |
| 2.1/2 – 11 | -40 | 74,1 | 2.92 | 75,1 | 2.95 | 71,9 | 2.83 | 72,6 | 2.86 |
| 3 – 11 | -48 | 86,6 | 3.41 | 87,9 | 3.46 | 84,6 | 3.33 | 85,4 | 3.36 |
It is recommended you use calipers or verniers to achieve a precise measurement.
Please send us a message for any questions you may have.
For Thread ID Chart please send us a message and we will send to you
Tax invoices are supplied with every purchase
Emails will be answered within normal business hours (ie: 8.30am - 5.00pm M-F)
sales@mhfgc.com.au
Australia +61 7 55631982
It is our desire to always have every listed item actively in stock. Occasionally (but very seldom) due to high demand, short supply or human error we may be momentarily out of stock on an item.
If this happens you will be notified and given the option to either cancel for a full refund or wait for the part to come in (typically 3-14 days)
RL 7.11.22
You May Also Like
On Sale
Hose Tail Low Pressure BSP Tapered Male 90° Compact
Hose Tail Low Pressure BSP Tapered Male 90° Compact
was AU$50.40
Save 47%
AU$26.60
On Sale

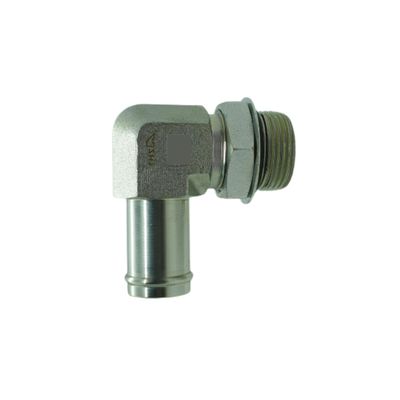

Hose Tail Low Pressure UNO Male 90° Compact
Hose Tail Low Pressure UNO Male 90° Compact
was AU$30.90
Save 47%
AU$16.30
On Sale

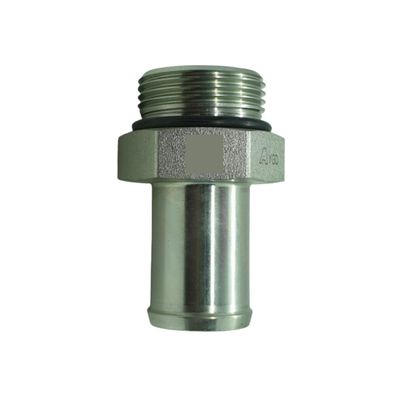

Hose Tail Low Pressure UNO Male Straight
Hose Tail Low Pressure UNO Male Straight
was AU$28.70
Save 47%
AU$15.20
On Sale

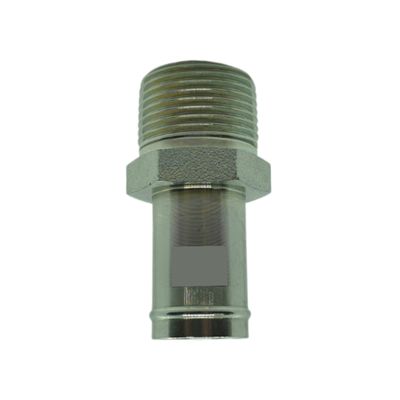

Hose Tail Low Pressure BSP Tapered Male Straight
