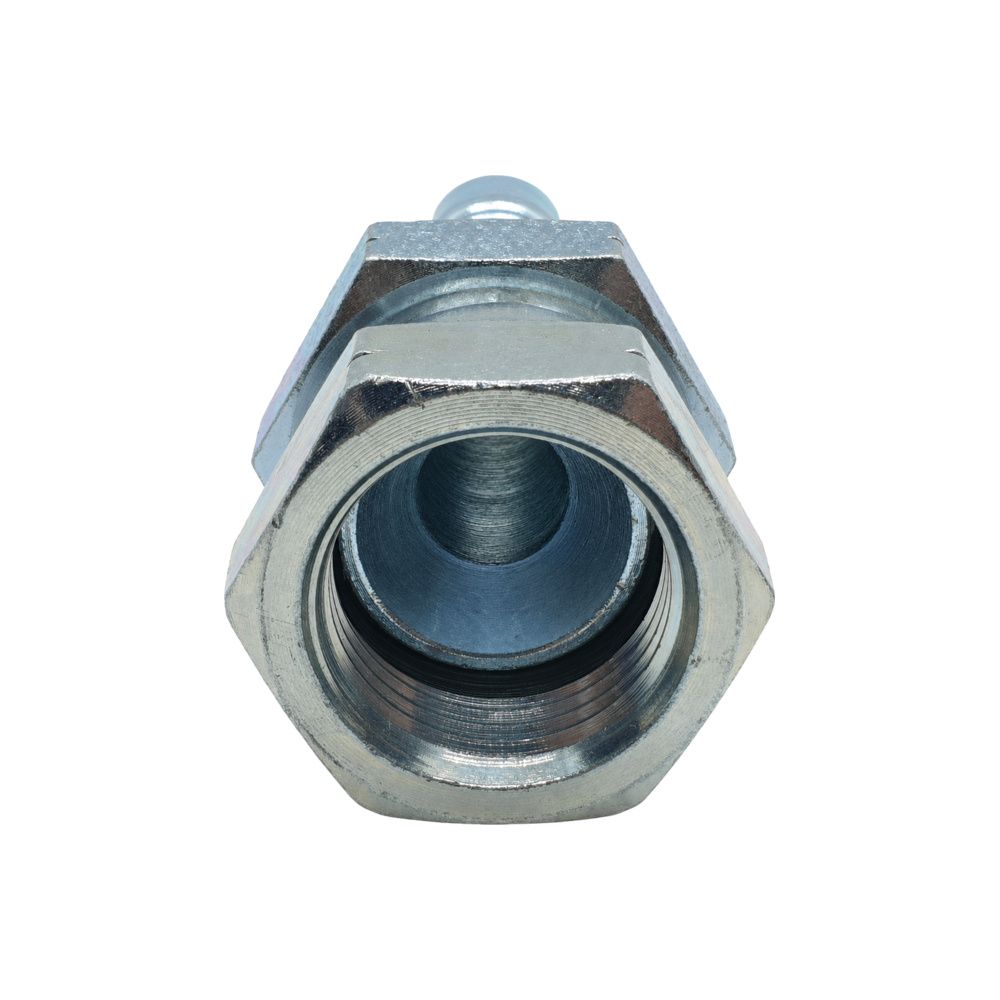

Hose Tail – JIS BSP Swivel Female – Straight – Two-Piece Crimp-On

A JIS BSP swivel female with a 30° seat on a straight crimp tail, for Japanese machinery running a BSP thread with a JIS seat.

Mild steel body with a plated finish, manufactured to the standard listed above.

Two-piece crimp-on – how it goes together

This is the tail (stem) only. A two-piece assembly is the tail plus a separate ferrule crimped over the hose. Our FS‑R2 Multi‑Fit ferrule covers 1‑wire, 2‑wire, M3K and MXT braided hose, so one ferrule series does the lot and you stock half the parts.

🔗 Add the matching FS-R2 Multi-Fit ferrule

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• JIS BSP Swivel Female (inverted BSP) – JIS B8363 – BSPP thread to ISO 228 with a 60° cone seat, seals on the 60° cone and swivels, so the hose is not wound up on assembly

How to Choose

• A straight tail is the default. Only go to a bend when the hose would otherwise leave the port at an angle it does not like.
• BSP thread with a 30° seat – the thread will run onto a standard BSP male and still not seal.
• Check the seat angle as well as the thread before ordering.

Technicians Advice

If the thread winds on sweetly but will not pull down, stop and check the seat rather than tightening harder. That is the JIS trap, and more torque only ruins the seat.

Where You’ll Find It

• JIS BSP Swivel Female (inverted BSP) – Hose ends on Japanese excavators and loaders, where the port is JIS rather than standard BSP.

Cross-Reference

• JIS BSP Swivel Female (inverted BSP) – JIS B8363 60° cone on a BSPP (ISO 228) thread. Also written JIS BSP or inverted BSP.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Downloads

📄 Crimp Dimensions Chart (PDF) 📄 Thread Identification Chart (PDF)

Same Threads, Other Angles

🔗 90° Swept – same threads
