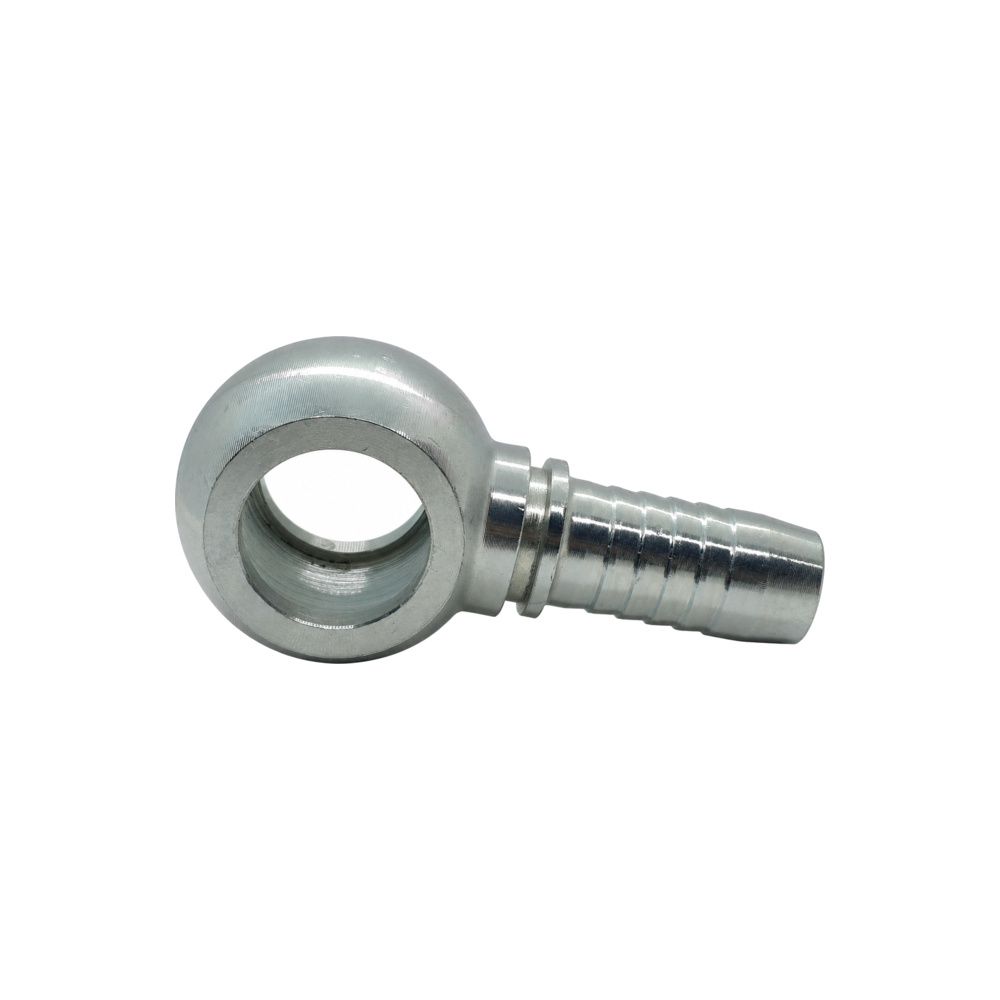

Hose Tail – BSP Banjo – Straight – Two-Piece Crimp-On

A BSP banjo eye on a straight crimp tail, for BSP ports where clearance is tight and the hose needs to leave at an awkward angle.

Mild steel body with a plated finish, manufactured to the standard listed above.

This is the tail only – ferrules are sold separately

A two-piece crimp-on assembly is two separate parts: this tail (the stem) and a ferrule that crimps over the hose. The ferrule is not included. You need one ferrule per tail.

We sell them separately on purpose. Several different ferrule styles will fit, and the right one depends on the hose you are crimping onto, not just the size:

• FS‑R2 Multi‑Fit – 1‑wire, 2‑wire, M3K and MXT braided hose. One series covers the lot, so most jobs take this.
• FS‑R7 – thermoplastic 100R7 hose. Different outside diameter and crimp figure to braided hose.
• FS‑R14 – PTFE 100R14 hose with stainless braid.

🔗 Choose your ferrule – see all styles

Not sure which one? Tell us the hose you are using on 1300 146 737 and we will match it. Never mix a tail from one system with a ferrule from another – the crimp diameter will be wrong.

Watch: How to Identify Hydraulic Hose Fittings and Hydraulic Adaptors JIC and BSP

Thread Standards

• BSP Banjo (eye fitting) – a drilled eye that a banjo bolt passes through, with the port thread on the bolt, seals on a bonded washer either side of the eye, squeezed by the banjo bolt – two washers, not one

How to Choose

• The eye swivels 360° before the bolt is tightened, so one part covers any hose angle.
• Sealing is done by a bonded washer each side of the eye, not by the bolt thread.
• The banjo bolt and washers are separate parts – add them to the order.

Technicians Advice

Torque the bolt to the port manufacturer’s figure, not by feel. A banjo bolt runs through the middle of the oil path and over-tightening it necks the bolt where you cannot see it.

Where You’ll Find It

• BSP Banjo (eye fitting) – tight installations where a hose has to leave a port at a set angle and there is no room to swing a fitting – brake and clutch lines, compressors, and cramped valve blocks.

Cross-Reference

• BSP Banjo (eye fitting) – Banjo / eye fitting to BSP. The eye swivels on the bolt until the bolt is tightened, which is why it suits awkward angles.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

Downloads

📄 Crimp Dimensions Chart (PDF) 📄 Thread Identification Chart (PDF)
