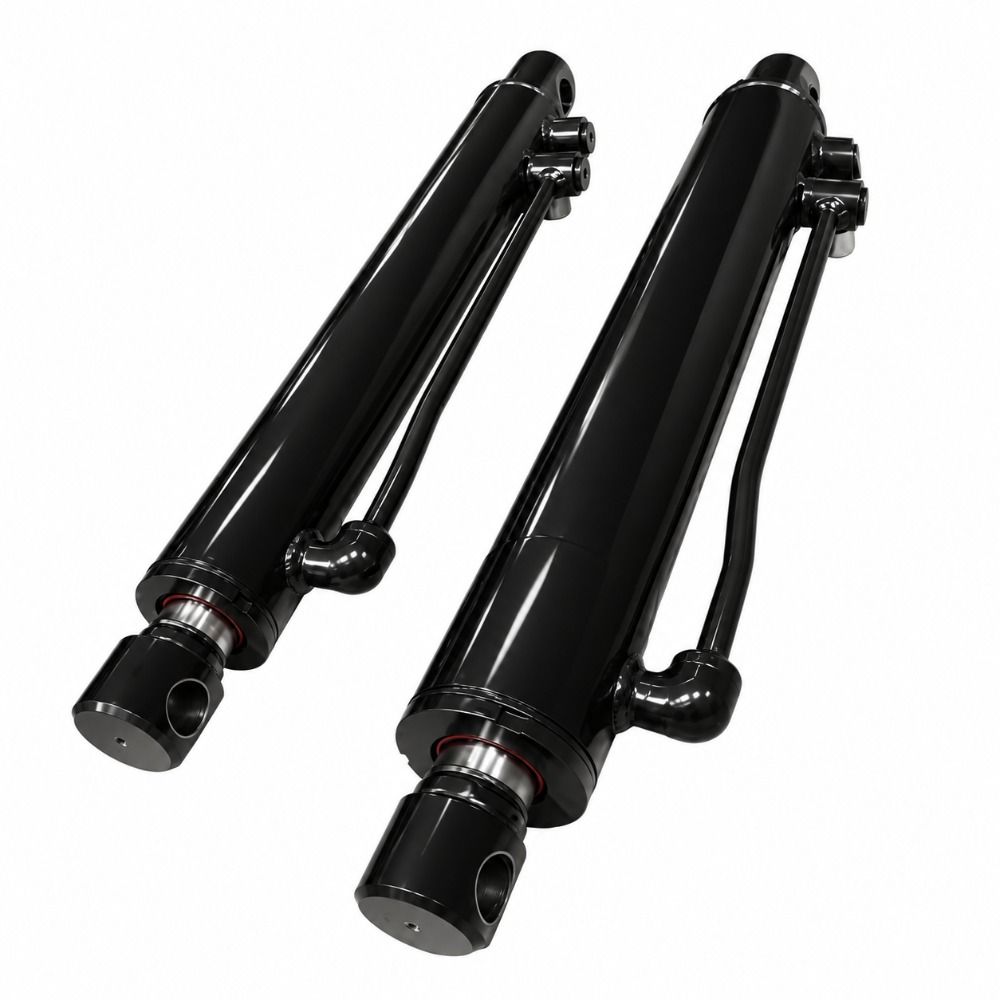

Front End Loader Hydraulic Cylinder, Gloss Black, 2.5" Bore x 1-1/2" Rod, Bucket and Lift Arm Rams

Replacement double acting rams for tractor front end loaders. Bucket rams crowd and dump the bucket. Lift arm rams raise the loader arms and come handed, left and right, because the port tube runs down one side of the barrel. Pick your ram below and it is on its way.

Ways to buy this part:

• 2.5" bore bucket and lift arm rams, off the shelf.
• Need the 3" bore? See the buttons below.
• Lift arm rams sold singly. Order one of each hand for a matched pair.
• Other bores, strokes and end fittings can be built. Call us.

Pick your ram

Closed and open lengths are pin centre to pin centre.

Specifications

How to choose

• Measure your old ram closed and fully open, pin centre to pin centre. Match the stroke and closed length to the table.
• Check the pin size and the width of the mounting ears on your loader.
• For lift arms, stand behind the tractor facing forward: the right hand ram fits the right arm.
• Not sure? Send us a photo and the loader model and we will match it.

Technicians Advice

Replace lift arm rams as a pair. A new ram on one side and a tired one on the other lifts unevenly and twists the loader frame. Check the pivot pins and bushes before you fit new cylinders. Worn pins side load the rod and wear out new seals fast. Once fitted, cycle each ram fully in and out a few times with no load to purge the air, then top up the tractor hydraulic oil.
