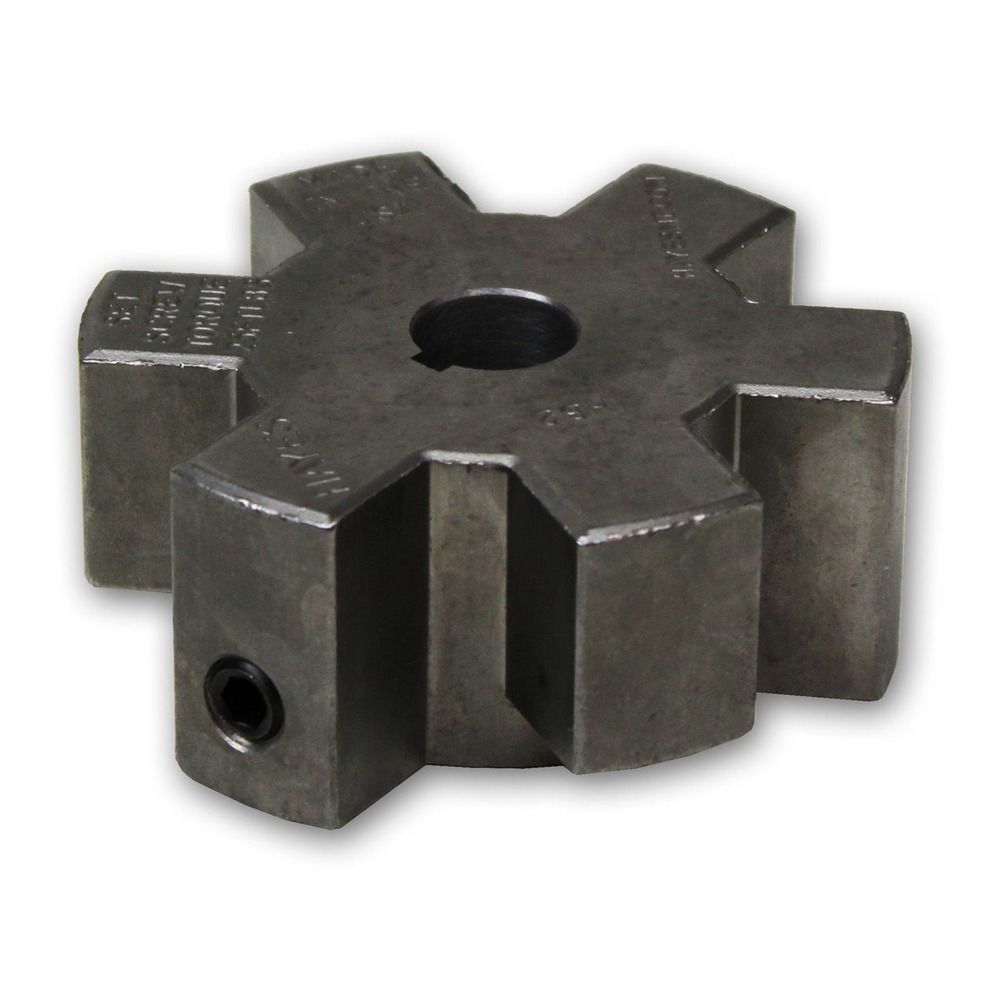

Flywheel Couplings for Diesel Engine to Hydraulic Pump 30-600HP
Product Details
Weight: 4.00 kg
Flywheel Couplings - Diesel Engine to Hydraulic Pump (30-600HP)
Heavy-duty flywheel coupling system for driving hydraulic pumps straight off a diesel flywheel - drive plates, elastomer hubs and SAE pump mount plates.
Remember - a complete drive needs four parts: bellhousing + motor-side half + pump-side half + rubber element. This listing covers one of them; the others are linked below.
Use the dropdown to choose. All prices include GST.
Suits: Diesel engines with SAE 2-6 flywheel housings and 6-1/2in to 11-1/2in flywheels, driving SAE A/B/C/D pumps.
Sizes & Part Numbers
| Part | SKU |
|---|---|
| Drive Plate - 6-1/2in Flywheel | B-065 |
| Drive Plate - 7-1/2in Flywheel | C-075 |
| Drive Plate - 8in Flywheel | C-080 |
| Drive Plate - 10in Flywheel | C-010 |
| Drive Plate - 11-1/2in Flywheel | DT-115 |
| Hub - 6-1/2in Flywheel - 1 1/4in Keyed 5/16in Keyway - SAE C Pump | HB1-43 |
| Hub - 6-1/2in Flywheel - 13 T Spline - SAE B Pump | HB1-91 |
| Hub - 6-1/2in Flywheel - 14 T Spline - SAE C Pump | HB2-92 |
| Hub - 6-1/2in Flywheel - 1in 15 T Spline - SAE A Pump | HB1-89 |
| Hub - 6-1/2in Flywheel - 3/4in Keyed 3/16in Keyway - SAE A Pump | HB2-07 |
| Hub - 6-1/2in Flywheel - 5/8in Keyed 5/32in Keyway - SAE A Pump | HB2-39 |
| Hub - 6-1/2in Flywheel - 7/8in Keyed 1/4in Keyway - SAE B Pump | HB1-41 |
| Hub - 6-1/2in Flywheel - 9 T Spline - SAE A Pump | HB2-88 |
| Hub - 7-1/2in Flywheel - 1 1/4in Keyed 5/16in Keyway - SAE C Pump | HC1-43 |
| Hub - 7-1/2in Flywheel - 1-3/8 21 T Spline - SAE C Pump | HC1-94 |
| Hub - 7-1/2in Flywheel - 13 T Spline - SAE B Pump | HC1-91 |
| Hub - 7-1/2in Flywheel - 14 T Spline - SAE C Pump | HC1-92 |
| Hub - 7-1/2in Flywheel - 1in 15 T Spline - SAE B Pump | HC1-89 |
| Hub - 7-1/2in Flywheel - 3/4in Keyed 3/16in Keyway - SAE A Pump | HC1-07 |
| Hub - 7-1/2in Flywheel - 5/8in Keyed 5/32in Keyway - SAE A Pump | HC1-39 |
| Hub - 7-1/2in Flywheel - 7/8in Keyed 1/4in Keyway - SAE B Pump | HC1-41 |
| Hub - 7-1/2in Flywheel - 9 T Spline - SAE A Pump | HC1-88 |
| Hub - 8in Flywheel - 5/8in Keyed 5/32”in Keyway - SAE B Pump | HC5-39 |
| Hub - 8in Flywheel - 7/8in Keyed 3/16in Keyway - SAE B Pump | HC4-09 |
| Hub - 8in Flywheel - 7/8in13 T Spline - SAE B Pump | HC4-91 |
| Hub - 10in Flywheel - 1 1/4in Keyed 5/16in Keyway - SAE C Pump | HC3-43 |
| Hub - 10in Flywheel - 1-3/8 21 T Spline - SAE C Pump | HC3-94 |
| Hub - 10in Flywheel - 13 T Spline - SAE B Pump | HC3-91 |
| Hub - 10in Flywheel - 14 T Spline - SAE C Pump | HC3-92 |
| Hub - 10in Flywheel - 1in 15 T Spline - SAE B Pump | HC3-89 |
| Hub - 10in Flywheel - 3/4in Keyed 3/16in Keyway - SAE A Pump | HC3-07 |
| Hub - 10in Flywheel - 7/8in Keyed 1/4in Keyway - SAE B Pump | HC3-41 |
| Hub - 10in Flywheel - 9 T Spline - SAE A Pump | HC4-88 |
| Mount Plate - SAE 6 Housing - SAE A Pump (2-bolt) | HN2 |
| Mount Plate - SAE 6 Housing - SAE B Pump (2-bolt) | HO2 |
| Mount Plate - SAE 6 Housing - SAE B Pump (4-bolt) | HO4 |
| Mount Plate - SAE 5 Housing - SAE A Pump (2-bolt) | GN2 |
| Mount Plate - SAE 5 Housing - SAE B Pump (2-bolt) | GO2 |
| Mount Plate - SAE 5 Housing - SAE B Pump (2/4-bolt) | GO24 |
| Mount Plate - SAE 5 Housing - SAE C Pump (4-bolt) | GX4 |
| Mount Plate - SAE 4 Housing - SAE A Pump (2-bolt) | ESP1 |
| Mount Plate - SAE 4 Housing - SAE B Pump (2-bolt) | EO2 |
| Mount Plate - SAE 4 Housing - SAE B Pump (2/4-bolt) | EO24 |
| Mount Plate - SAE 4 Housing - SAE C Pump (2/4-bolt) | EX24 |
| Mount Plate - SAE 4 Housing - SAE C Pump (4-bolt) | EX4 |
| Mount Plate - SAE 3 Housing - SAE B Pump (2/4-bolt) | DO24 |
| Mount Plate - SAE 3 Housing - SAE C Pump (2/4-bolt) | DX24 |
| Mount Plate - SAE 3 Housing - SAE D Pump (4-bolt) | DS4 |
| Mount Plate - SAE 2 Housing - SAE B Pump (2/4-bolt) | CO24 |
| Mount Plate - SAE 2 Housing - SAE C Pump (2-bolt) | CX2 |
| Mount Plate - SAE 2 Housing - SAE C Pump (4-bolt) | CX4 |
| Mount Plate - SAE 2 Housing - SAE D Pump (4-bolt) | CS4 |
How to Choose
- Three parts: a drive plate bolted to the engine flywheel (pick by flywheel size 6-1/2in to 11-1/2in), a hub on the pump shaft (pick by flywheel size + pump shaft), and a pump mount plate (pick by engine SAE housing size + pump SAE flange).
- Flywheel size is stamped on the housing or measured across the bolt circle.
- 30-600HP diesel coverage. US made.
Technicians Advice
Centre the drive plate carefully - runout over 0.2mm TIR shows up as vibration at speed. Use grade 8.8 bolts with thread-locker into the flywheel. Grease the hub hex with moly paste at every service; a dry hex hammers itself oval. On repowers always confirm SAE housing size before ordering the mount plate - 4 and 5 look similar at a glance.
Official Datasheets
📄 Flywheel Coupling Spec Sheet
Complete Your Drive
⭐ Complete Drive Kits - One Pick⚙ Bellhousings DIN⚙ Bellhousings SAE⚙ Engine Bellhousings⚙ Motor Side Halves⚙ Pump Side DIN⚙ Pump Side SAE⚙ Elements⚙ Flywheel Couplings⚙ Accessories
Buy in bulk and save: 5+ units −5%, 10+ −10%, 25+ −12.5%, 50+ −15% — applied automatically in the cart.
Not sure which combination you need? Call us on 1300 146 737 or email sales@mhfgc.com.au with your motor and pump details - we will spec the full drive for you.
