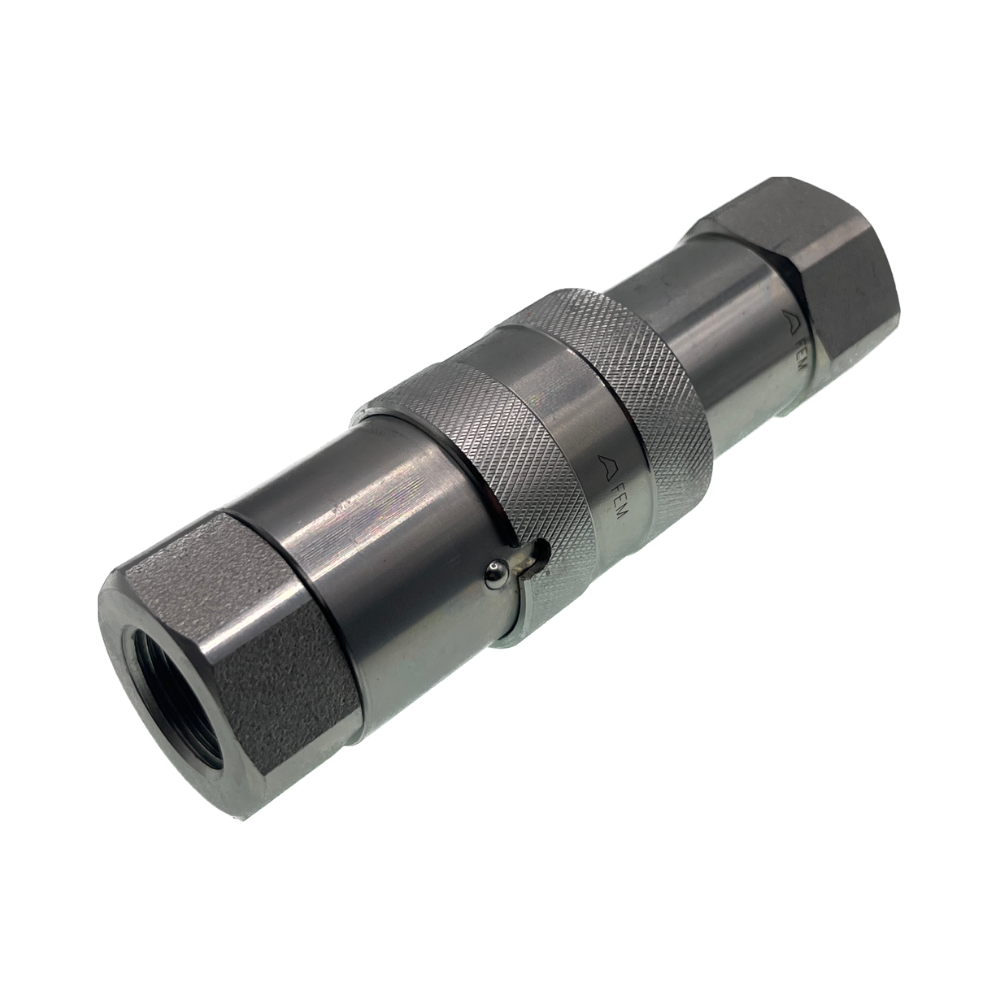

Pair of 5/8" Body x 3/4" BSPP Thread Flat-Face Hydraulic Quick Connect Couplers ISO16028 A SERIES

• This sale is for one pair, ie: 1 x female 1 x male

Main Features

* They have a 5/8 " inch body and 3/4" BSPP female threads.
* Easy to Identify as the male has a 27 mm diameter. (see chart in images for other sizes)
* Oil flows up to 100 Lt/Min
* Pressures to 350 bar or 5100 psi
* Pressure drops less than 0.1 Bar @ 20 Litres / Minute
* 6 Bar @ 150 Litres / Minute
* Temperature -20 to 100 degrees Celsius
* Carbon steel body, Heat treated to increase hardness and corrosion resistance
* Nitrile seals. H Series couplings are Zinc plated.
* Weight 1050 g
* Flat mating faces are easily wiped clean to prevent the ingress of contaminants.
* Improved flow path minimises the pressure drop.
* Non-spill design avoids fluid loss during connection and disconnection.
* No air intrusion during connection.
* Locking sleeve prevents accidental disconnection.
* Zinc nickel surface treatment and meets 200 hour salt spray tests.

This Series conforms to ISO 16028 (2006) in all respects

Compatible with;
DNP PLT4, Stucchi FIRG/A Series, Faster 2FFI , Hansen QA, Ryco R110-06/08, Safeway FF49, Aeroquip FD89/FD49

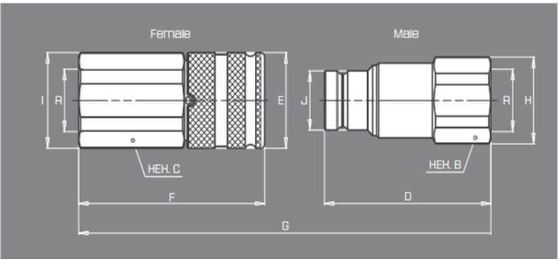

It is easy to check compatibility. Please refer to our size charts in photos for correct sizing. The best measurement to use is 'J' column.
They are suitable for applications involving dusty or dirty environments and where oil loss on disconnection cannot be tolerated. This series of couplings are designed for use in excavator hammer and Auger circuits and other applications involving high pressure pulses. Construction plant, mobile equipment, general industrial, mining and agricultural.

Please refer to our size charts below for correct sizing. The best measurement to use is 'J' column.

Connection / Disconnection Under Pressure

Connection with residual pressure in the lineFor applications where connection under pressure is required, HCP male couplings, or screw couplings from either the HSC, HS or RS ranges are recommended.
