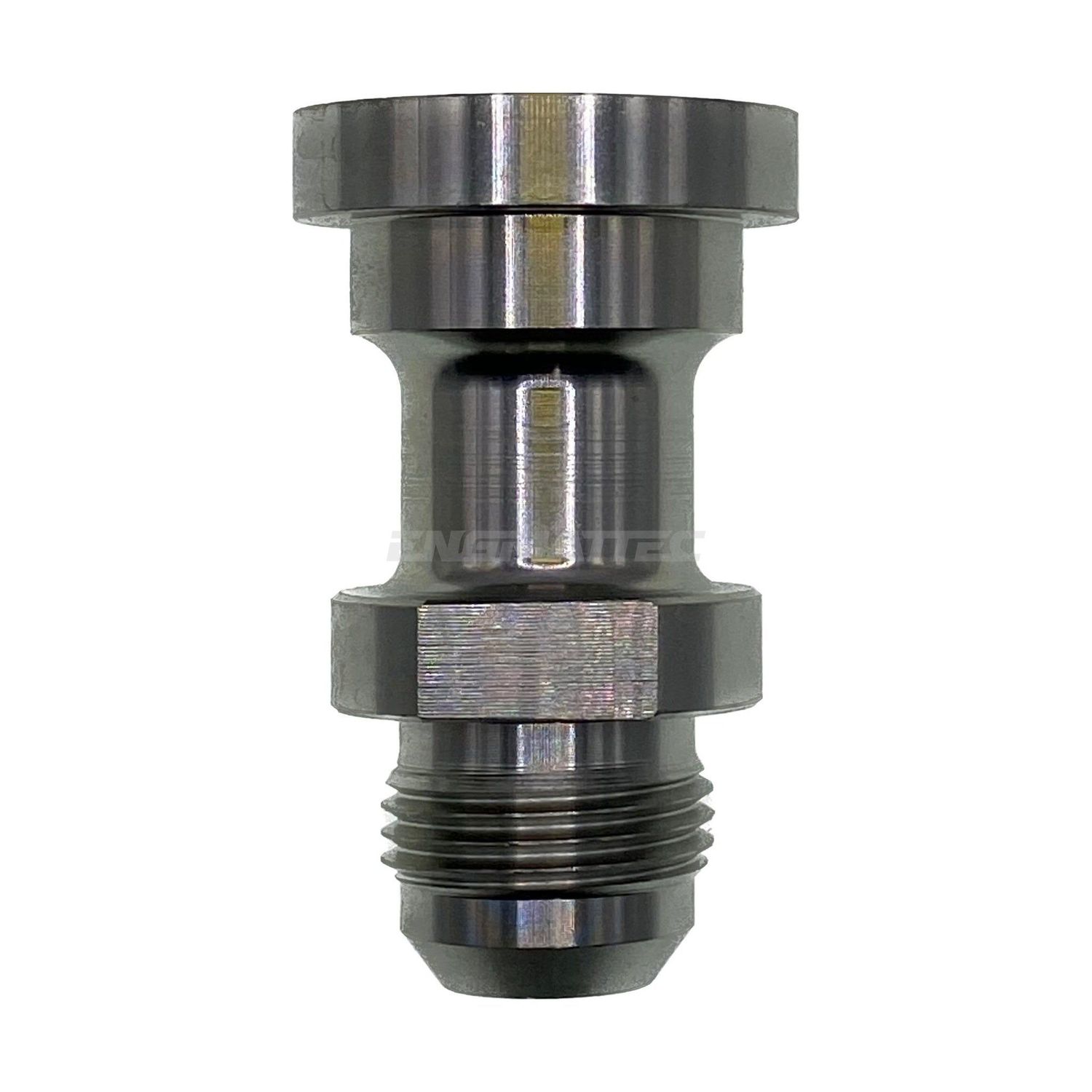

SAE Code 62 Flange x JIC 37° Male Straight Adaptor

Code 62 high-pressure split flange head one end, JIC 37° male the other. The heavy-duty flange connection, used where Code 61 runs out of pressure headroom.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: How to Assemble Hydraulic Hose Fittings: Identification and Guide on JIC Thread Types

Thread Standards

• SAE Code 62 Flange – SAE J518 Code 62 high-pressure split flange. It seals on a face O-ring and uses a heavier, tighter bolt pattern for high pressure.
• JIC 37° Male – SAE J514 37° flare. It seals metal-to-metal on the 37° cone, so it takes no tape at all.

How to Choose

• Code 62 has a different bolt pattern and a thicker head than Code 61. They do not interchange, even though the bore looks the same.
• The flange seals on an O-ring in the head face. Nothing goes on the bolts or the face beyond the ring.
• If the machine came with Code 62, keep it Code 62. Dropping to Code 61 on the pump side is asking for a blow-out.

Technicians Advice

Even, staged tightening in a cross pattern on all four bolts. On Code 62 the pressures are high enough that a slightly cocked head does not just weep, it lets go, and a high-pressure flange failure is not something you want to be standing near.

Where You’ll Find It

• SAE Code 62 Flange – High-pressure pump and motor ports on excavators and heavy plant.
• JIC 37° Male – Hose ends and ports on imported US and Asian machinery – Caterpillar, John Deere, Case IH, New Holland, Bobcat, Kubota, Takeuchi.

Cross-Reference

• SAE Code 62 Flange – SAE J518 Code 62 / ISO 6162-2 high-pressure split flange. Heavier head and tighter bolt pattern than Code 61.
• JIC 37° Male – SAE J514 / ISO 8434-2 37° flare. Parker call this series Triple-Lok. The industrial cousin of the AN 37° flare used in aviation and motorsport.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	A	B	Material	Finish
F62-JIM-0812	3/4" JIC	1/2" Code 62 Flange	Mild steel	Plated finish
F62-JIM-1217	1.1/16" JIC	3/4" Code 62 Flange	Mild steel	Plated finish
F62-JIM-1221	1.5/16" JIC	3/4" Code 62 Flange	Mild steel	Plated finish
F62-JIM-1617	1.1/16" JIC	1" Code 62 Flange	Mild steel	Plated finish
F62-JIM-1621	1.5/16" JIC	1" Code 62 Flange	Mild steel	Plated finish
F62-JIM-1626	1.5/8" JIC	1" Code 62 Flange	Mild steel	Plated finish
F62-JIM-2021	1.5/16" JIC	1.1/4" Code 62 Flange	Mild steel	Plated finish
F62-JIM-2026	1.5/8" JIC	1.1/4" Code 62 Flange	Mild steel	Plated finish
F62-JIM-2421	1.5/16" JIC	1.1/2" Code 62 Flange	Mild steel	Plated finish
F62-JIM-2426	1.5/8" JIC	1.1/2" Code 62 Flange	Mild steel	Plated finish
F62-JIM-2430	1.7/8" JIC	1.1/2" Code 62 Flange	Mild steel	Plated finish
F62-JIM-2440	2.1/2" JIC	2" Code 62 Flange	Mild steel	Plated finish
F62-JIM-3230	1.7/8" JIC	2" Code 62 Flange	Mild steel	Plated finish
F62-JIM-3240	2.1/2" JIC	2" Code 62 Flange	Mild steel	Plated finish
JIM-F62-1212	3/4" JIC	3/4" Code 62 Flange	Mild steel	Plated finish

Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
