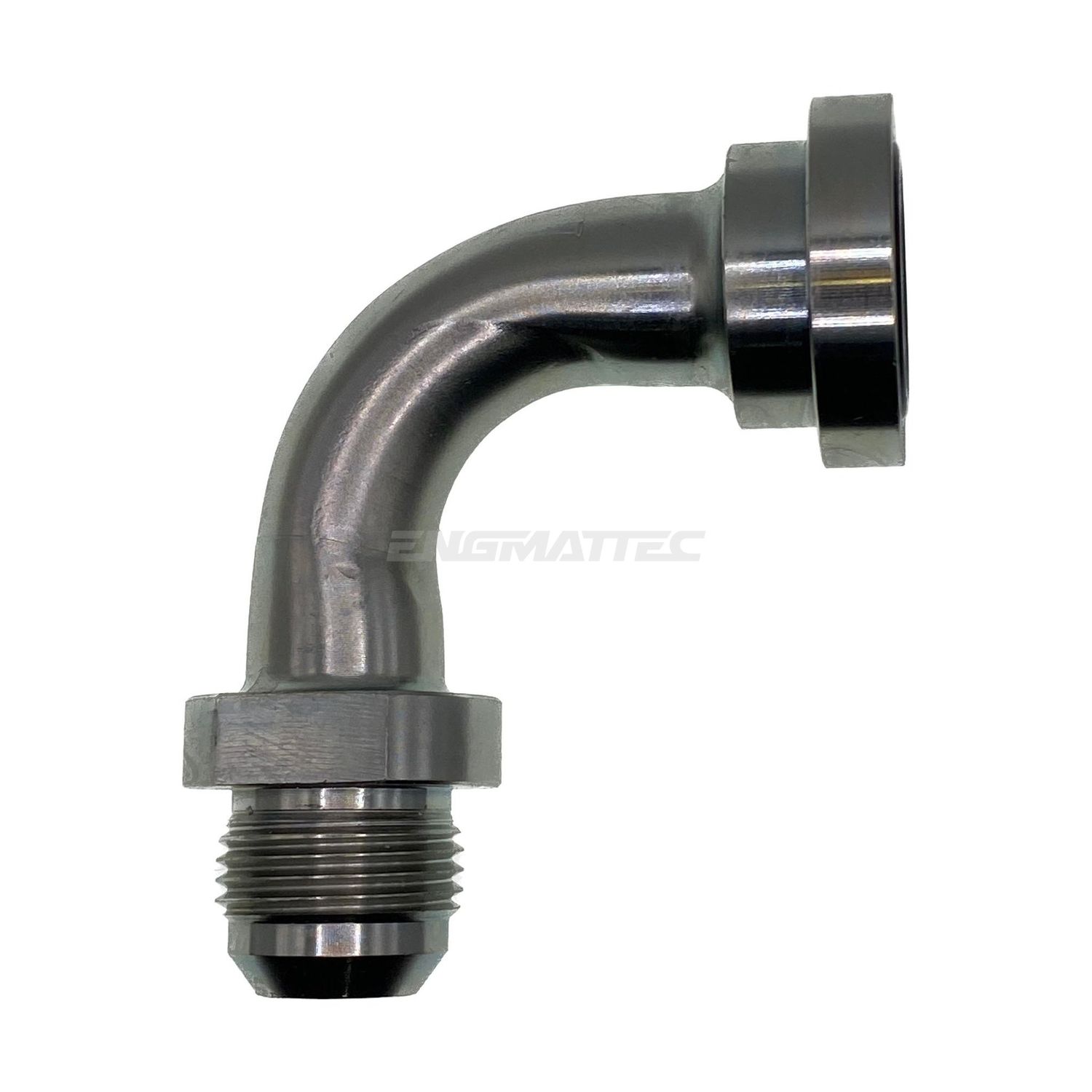

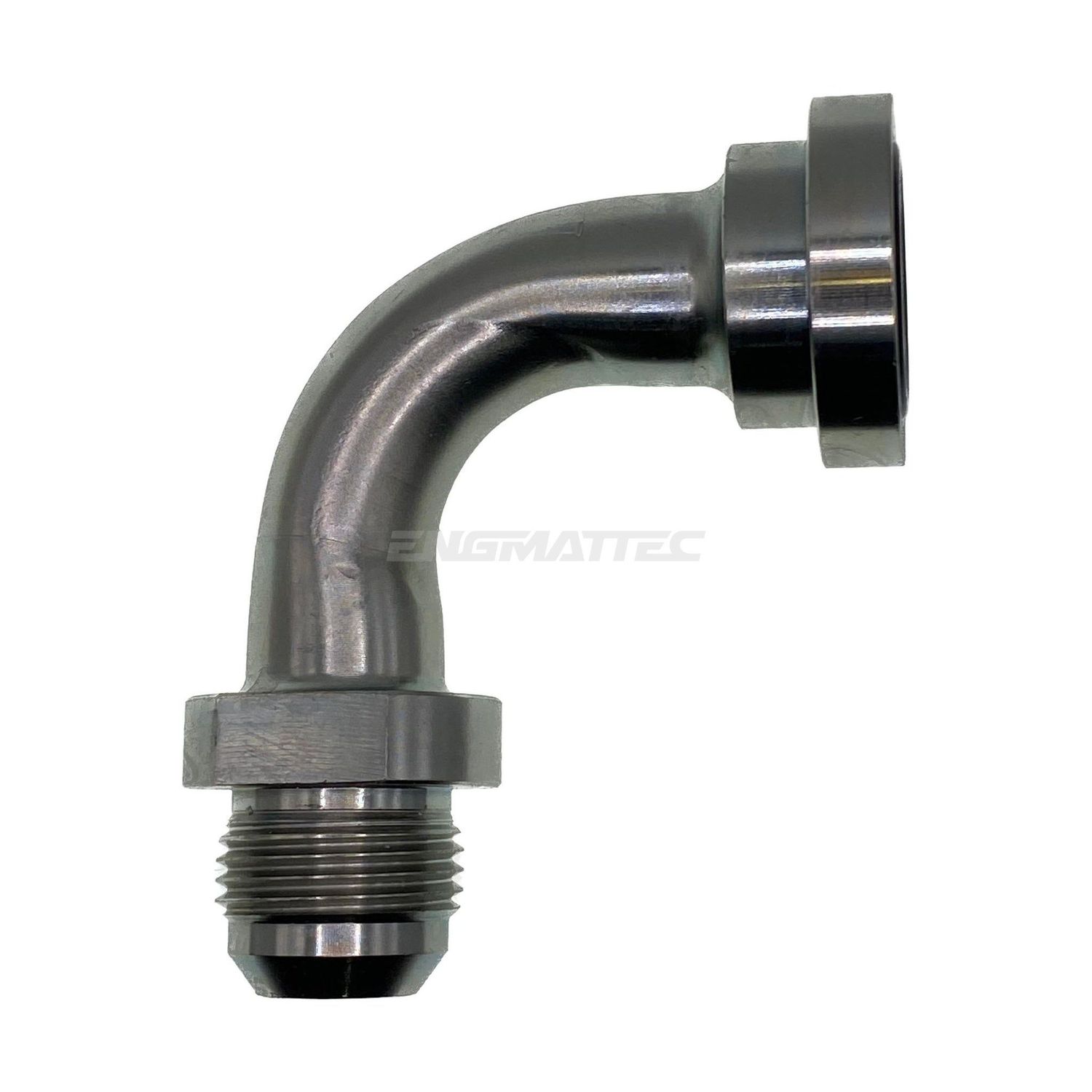

Flange Code 62 x JIC Male 90° Swept
SKU F62-JIM-90S-0812
AU$21.60
On Sale
was AU$40.90 Save 47%
Bulk pricing available for quantities of 5 units or more
Size
Please choose
In stock
1
Buy more, save more
| Quantity | Price per item | Discount |
| 5 items | AU$20.50 | 5% off |
| 10 items | AU$19.40 | 10% off |
| 25 items | AU$18.90 | 13% off |
| 50 items | AU$18.40 | 15% off |
Save this product for later
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Flange Code 62 x JIC Male 90° Swept
Product Details
Brand: Engmattec
Weight: 0.35 kg
Flange Code 62 x JIC Male 90° Swept
90° elbows are the tight-space workhorse – they turn a connection hard against a wall, ram or chassis rail where a straight fitting plus bent hose simply will not fit.
Ways to buy:
- Off the shelf – pick your size from the dropdown below and it’s on its way.
- Need a size or combination you can’t see? Call us – if it exists, we can get it.
Pick your size
| Size / configuration | SKU | Price inc GST |
| Adaptor - (08) 1/2" Flange Code 62 x (12) 3/4" JIC Male - 90° Swept | F62-JIM-90S-0812 | |
| Adaptor - (12) 3/4" Flange Code 62 x (17) 1 1/16" JIC Male - 90° Swept | F62-JIM-90S-1217 | $36.10 |
| Adaptor - (12) 3/4" Flange Code 62 x (21) 1 5/16" JIC Male - 90° Swept | F62-JIM-90S-1221 | $40.20 |
| Adaptor - (16) 1" Flange Code 62 x (17) 1 1/16" JIC Male - 90° Swept | F62-JIM-90S-1617 | $37.90 |
| Adaptor - (16) 1" Flange Code 62 x (21) 1 5/16" JIC Male - 90° Swept | F62-JIM-90S-1621 | $38.40 |
| Adaptor - (20) 1 1/4" Flange Code 62 x (17) 1 1/16" JIC Male - 90° Swept | F62-JIM-90S-2017 | $39.60 |
| Adaptor - (20) 1 1/4" Flange Code 62 x (21) 1 5/16" JIC Male - 90° Swept | F62-JIM-90S-2021 | $44.90 |
| Adaptor - (20) 1 1/4" Flange Code 62 x (26) 1 5/8" JIC Male - 90° Swept | F62-JIM-90S-2026 | $57.70 |
| Adaptor - (20) 1 1/4" Flange Code 62 x (30) 1 7/8" JIC Male - 90° Swept | F62-JIM-90S-2030 | |
| Adaptor - (20) 1 1/4" Flange Code 62 x (30) 1 7/8" JIC Male - 90° Swept | F62-JIM-90S-2030 | 20.50 |
| Adaptor - (24) 1 1/2" Flange Code 62 x (26) 1 5/8" JIC Male - 90° Swept | F62-JIM-90S-2426 | |
| Adaptor - (24) 1 1/2" Flange Code 62 x (26) 1 5/8" JIC Male - 90° Swept | F62-JIM-90S-2426 | 17.60 |
| Adaptor - (24) 1 1/2" Flange Code 62 x (30) 1 7/8" JIC Male - 90° Swept | F62-JIM-90S-2430 | |
| Adaptor - (24) 1 1/2" Flange Code 62 x (30) 1 7/8" JIC Male - 90° Swept | F62-JIM-90S-2430 | 22.30 |
What is in the box
One fitting as per your selection.
Specifications
| Parameter | Value |
| Brand | Engmattec |
| Material | Carbon steel |
| Thread end 1 | Flange Code 62 |
| Thread end 2 | JIC Male |
| Configuration | 90° |
How to choose
- Match both thread ends to what you are joining; the elbow just turns the corner.
- Compact (C) elbows suit the tightest spots; long-sweep versions ease flow where space allows.
- Minimum hose bend radius still applies after the elbow – the elbow buys you direction, not slack.
- Not sure? Call us and we will confirm the size.
Technicians Advice
Aim the elbow before final torque – on bonded-washer ends the last quarter turn sets both seal and direction, so start the washer with the elbow pointing about 30° short of where you want it. Never spring the hose to meet the fitting; if the hose loads the elbow sideways it will loosen and weep. Elbows are the biggest single pressure-drop item in a fitting chain – on high-flow lines use two 45s or a swept path instead of stacking 90s.
Buying in bulk or fitting out a fleet? Call us for trade pricing.
Need help choosing? Call 1300 146 737 or email sales@mhfgc.com.au – real technicians, real answers.
