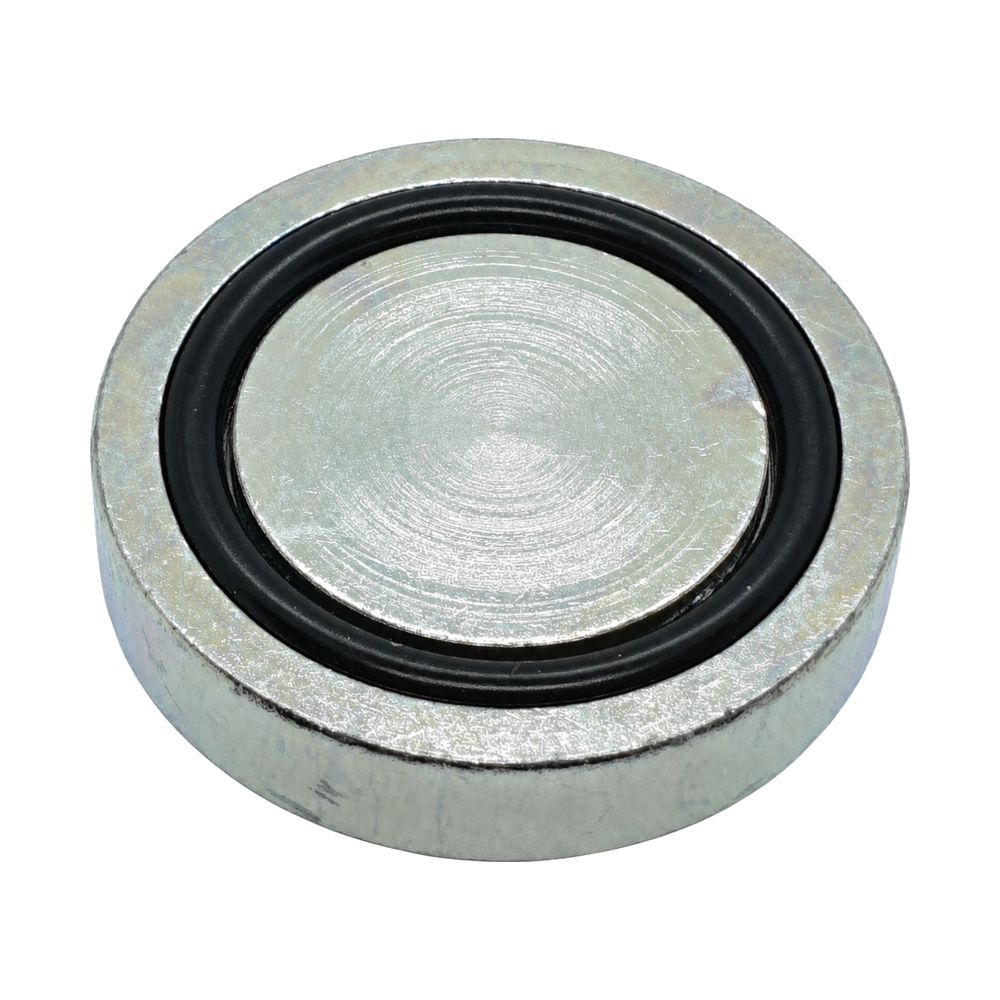

SAE Code 62 Flange Blanking Plug

A Code 62 high-pressure flange plug for blanking a split-flange port where Code 61 does not have the pressure headroom.

Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.

Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs

Thread Standards

• SAE Code 62 Flange – SAE J518 Code 62 high-pressure split flange. It seals on a face O-ring and uses a heavier, tighter bolt pattern for high pressure.

How to Choose

• A flange plug blanks the port; the split flange halves and four bolts do the clamping.
• Code 62 has a different bolt pattern and a thicker head than Code 61. They do not interchange.
• Seals on the O-ring in the flange face.

Technicians Advice

Even, staged tightening in a cross pattern on all four bolts. At Code 62 pressures a cocked plug does not just weep, it lets go, and a blanking plug leaving a port under pressure is not something to be standing near.

Where You’ll Find It

• SAE Code 62 Flange – High-pressure pump and motor ports on excavators and heavy plant.

Cross-Reference

• SAE Code 62 Flange – SAE J518 Code 62 / ISO 6162-2 high-pressure split flange. Heavier head and tighter bolt pattern than Code 61.

Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.

Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.

📐Dimensions & thread sizes – every size in this range

← Swipe the table sideways to see every measurement →

Part code	Size	D	T	Material	Finish
F62-PLUG-12	3/4" Code 62	41.3mm	8.8mm	Mild steel	Plated finish
F62-PLUG-16	1" Code 62	47.6mm	9.5mm	Mild steel	Plated finish
F62-PLUG-20	1.1/4" Code 62	54mm	110.3mm	Mild steel	Plated finish
F62-PLUG-24	1.1/2" Code 62	63.5mm	12.6mm	Mild steel	Plated finish
F62-PLUG-32	2" Code 62	79.4mm	12.6mm	Mild steel	Plated finish

Key: D outside diameter, T thickness. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.

Downloads

📄 Thread Identification Chart (PDF)
