Flange Code 61 Plug
Product Details
Brand: Ayrtec
Weight: 0.03 kg

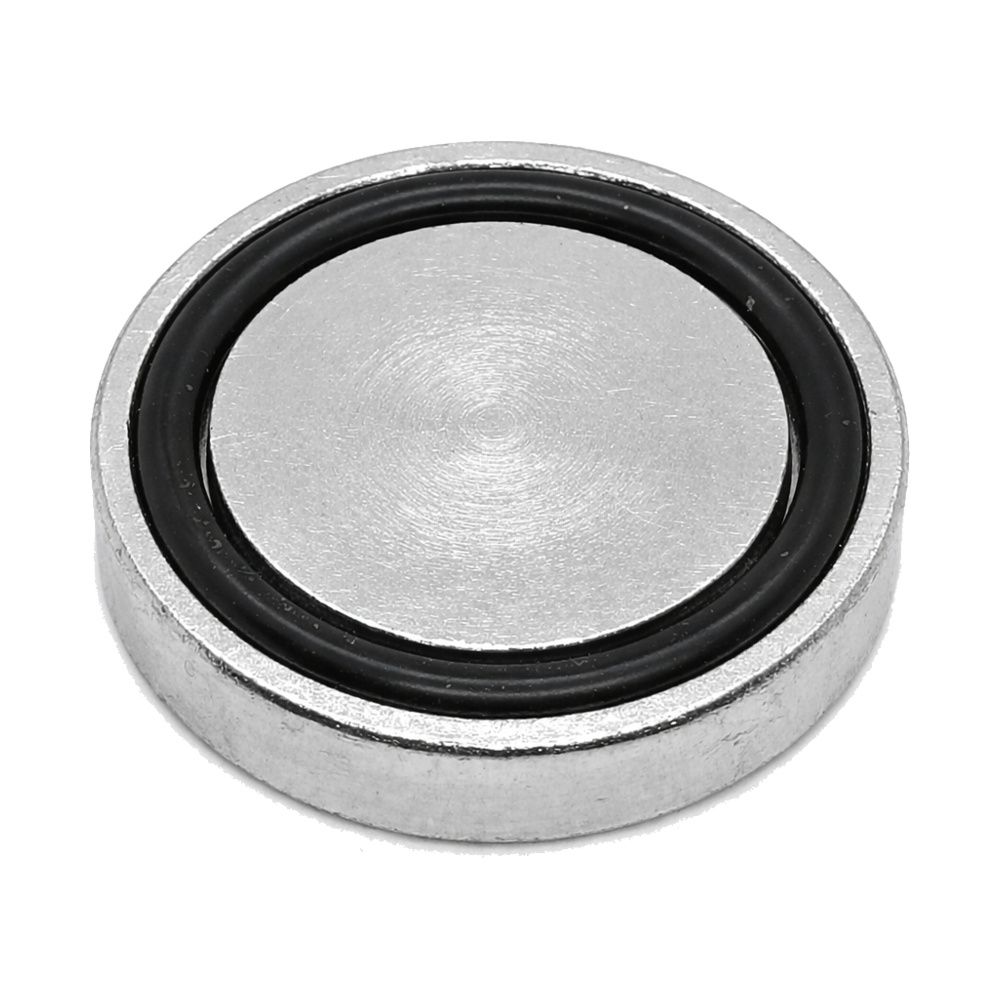

SAE Code 61 Flange Blanking Plug
A Code 61 flange plug for blanking a split-flange port on a pump, motor or valve body.
Brand: Ayrtec – mild steel body with a plated finish, manufactured to the standards listed below.
Watch: Why You Need JIC Plugs Caps & O Ring Kit When Doing Hydraulic Repairs
Thread Standards
- SAE Code 61 Flange – SAE J518 Code 61 standard-pressure split flange. It seals on an O-ring captured in the flange head face, clamped by four bolts.
How to Choose
- A flange plug blanks the port itself. The split flange halves and four bolts still do the clamping.
- Seals on the O-ring in the flange face. Nothing on the bolts or the face beyond the ring.
- Code 61 and Code 62 are not interchangeable. Code 62 is higher pressure with a different bolt pattern.
Technicians Advice
Pull the four bolts up evenly and in a cross pattern, in stages. Cocking a flange plug on one corner pinches the O-ring, and on a blanked port nobody notices the weep until there is oil on the floor.
Where You’ll Find It
- SAE Code 61 Flange – Pump, motor and valve block ports from around 3/4 inch upward on US and Japanese built plant.
Cross-Reference
- SAE Code 61 Flange – SAE J518 Code 61 / ISO 6162-1 split flange. Also called a 4-bolt flange or standard-pressure flange.
Parker, Gates, Aeroquip and Ryco all manufacture to these same standards under their own part numbering, so a fitting built to the standard above will mate with theirs.
Cross-references are given at series level as a guide to the standard, not as a part-for-part substitution. Always confirm the thread form, size and seal type against the port before ordering.
📐Dimensions & thread sizes – every size in this range
← Swipe the table sideways to see every measurement →
| Part code | Size | D | T | Material | Finish |
|---|---|---|---|---|---|
| F61-PLUG-08 | 1/2" Code 61 | 30.2mm | 6.7mm | Mild steel | Plated finish |
| F61-PLUG-12 | 3/4" Code 61 | 38.1mm | 6.7mm | Mild steel | Plated finish |
| F61-PLUG-16 | 1" Code 61 | 44.5mm | 8mm | Mild steel | Plated finish |
| F61-PLUG-20 | 1.1/4" Code 61 | 50.8mm | 8mm | Mild steel | Plated finish |
| F61-PLUG-24 | 1.1/2" Code 61 | 60.3mm | 8mm | Mild steel | Plated finish |
| F61-PLUG-32 | 2" Code 61 | 71.4mm | 9.5mm | Mild steel | Plated finish |
Key: D outside diameter, T thickness. Measurements in millimetres unless shown otherwise. Thread columns show what each end mates with. Dimensions are nominal – check critical clearances against the part.
Downloads
📄 Thread Identification Chart (PDF)
